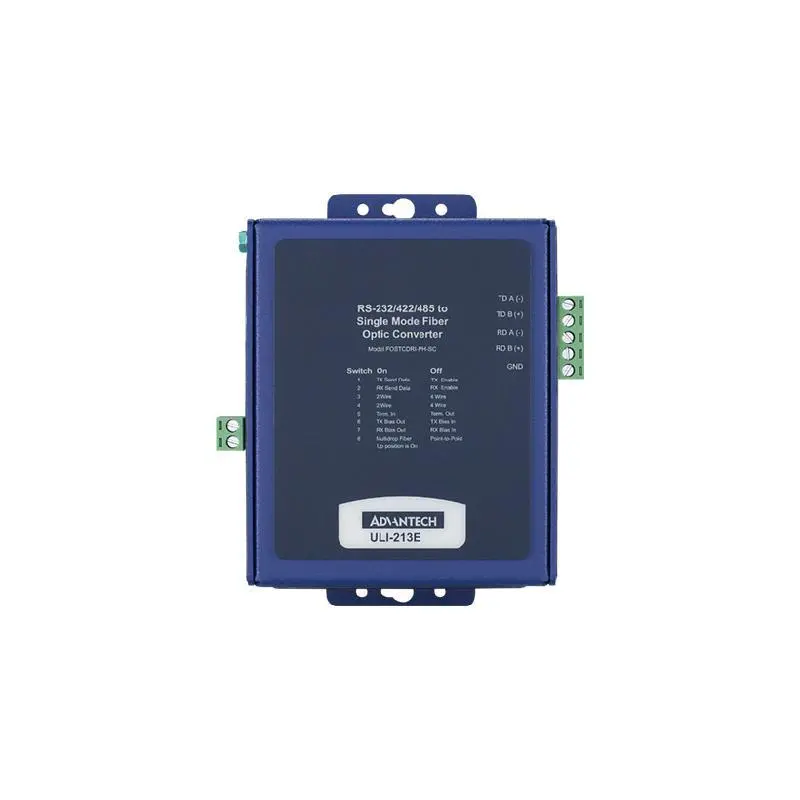

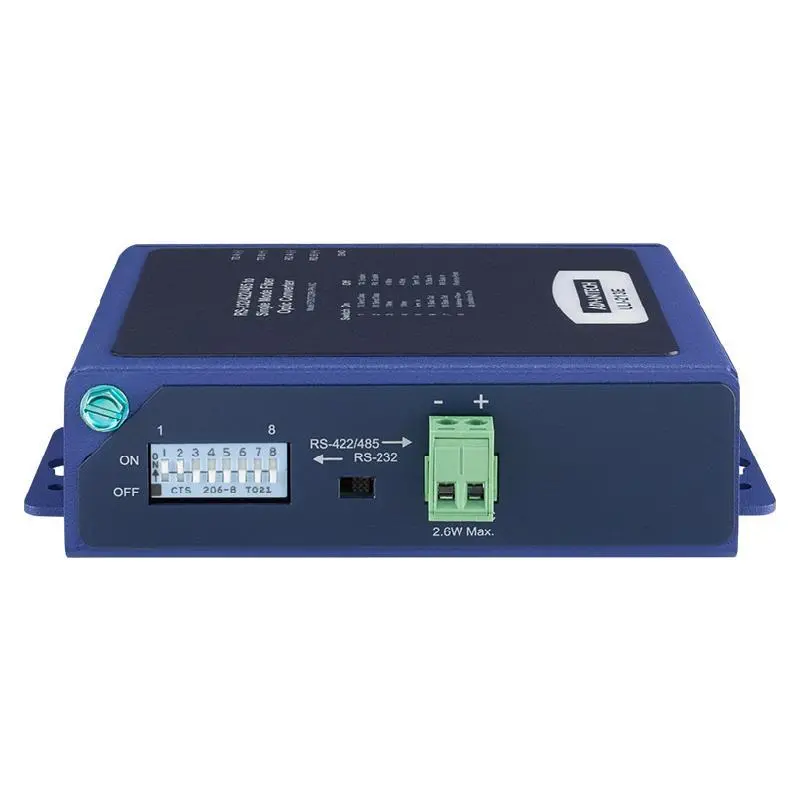

Advantech BB-FOSTCDRI-PH-SC ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis

Converts serial data signals to multi- or single-mode fiber, SC connector

2 KV, 3-way isolation (input, output, power circuits)

Data rate: 9.6 to 115.2 kbps (bit-wise enable)

-40 to +85°C wide operating temperature

IP30 metal panel mount case (DIN rail adaptable)

FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2

10-48 VDC power source required (not included, sold separately)

Note: 2 units required to extend data via fiber optic connection (see datasheet)

		BB-FOSTCDRI-PH-SC
General	Technology	Serial
Serial Communication	Serial Standard	RS-232 / RS-422 / RS-485
General	Mounting	Panel
Serial Communication	Serial Port Connector Type	Terminal block
General	Power	10-48VDC
Serial Communication	Serial Port Number	1
General	Temperature	-40 to 85C
Serial Communication	Maximum Serial Transmission Speed	115.2 Kbps
Fiber General	Optical Mode	Single-mode
General	Serial Type	RS-232/422/485
Fiber General	Max. Distance	15 km
General	Serial Connector	Terminal Block
Fiber General	Optical Connector	SC
General	Fiber Type	Single-mode
Fiber General	Optical Wavelength	1310 nm
Fiber General	Optical Port Number	1
Environment	Operating Temperature	-40 ~ 85°C (-40 ~ 185°F)
Protection	Isolation	2,000 VDC
Protection	Surge Protection	600W
Certification	Safety	UL C1/D2 (Class I, Division 2)
Certification	Substation	IEC-61850-3
Power	Power Input (DC)	10 ~ 48 VDC
Accessory General	Mounting	Panel
Mechanism	Enclosure (Metal)	Metal
