BB-FOSTCDRI-INV | ||
General | Technology | Serial |
General | Mounting | DIN |
General | Power | 10-48VDC |
General | Temperature | -40 to 80C |
General | Serial Type | RS-232/422/485 |
General | Serial Connector | Terminal Block |
General | Fiber Type | Multi-mode |

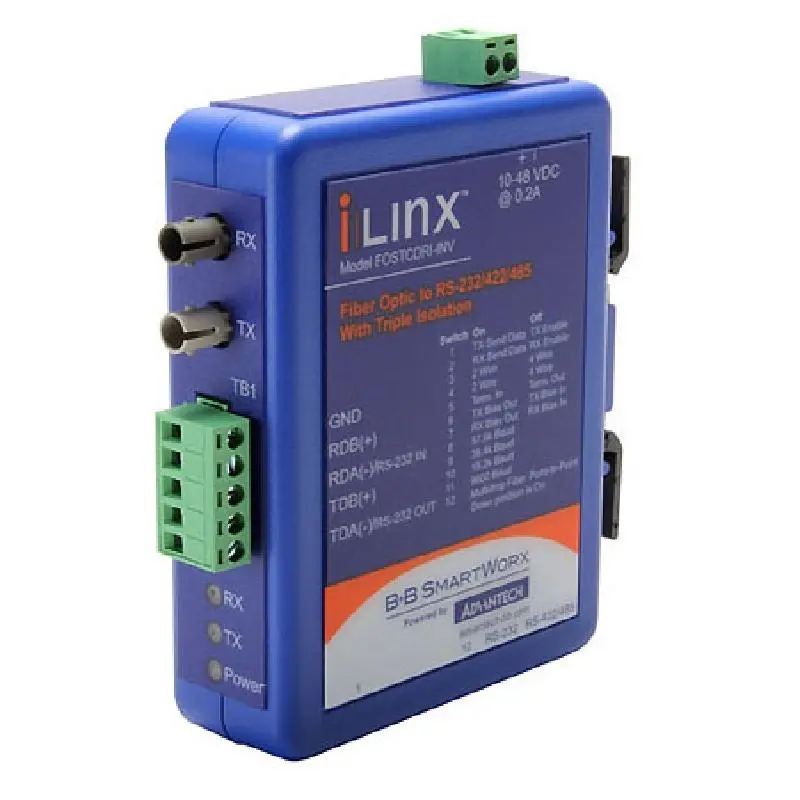

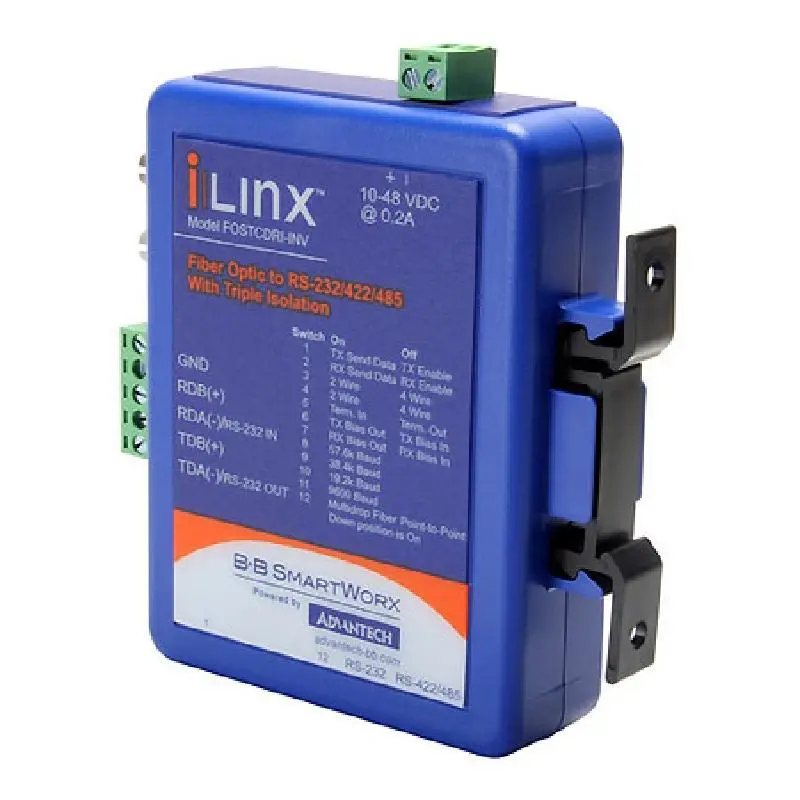

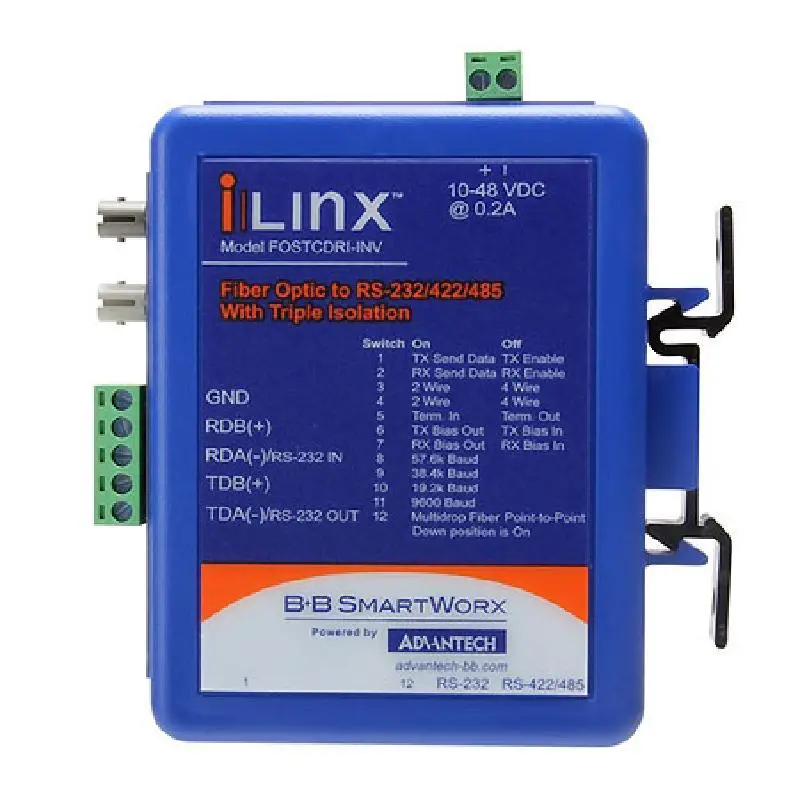

Advantech BB-FOSTCDRI-INV Serial Converter, RS-232/422/485 TB to MM Fiber ST (Inverted), Ind. DIN, C1D2
Converts serial data signals to multi-mode ST fiber optic
Inverted fiber state - fiber light OFF in idle state
2 KV 3-way optical isolation (input/output/power); EMI/RFI protection
Data rate: up to 115.2 kbps
Wide operating temperature: -40 to +80 °C
DIN mount, IP20 plastic case
10–48 VDC power source required (not included, sold separately)
UL Class 1 / Division 2 rated
