| BB-FOSTCDRI | ||
| General | Technology | Serial |
| Serial Communication | Serial Standard | RS-232 / RS-422 / RS-485 |
| General | Mounting | DIN |
| Serial Communication | Serial Port Connector Type | Terminal block |
| General | Power | 10-48VDC |
| Serial Communication | Serial Port Number | 1 |
| General | Temperature | -40 to 80C |
| Serial Communication | Maximum Serial Transmission Speed | 115.2 Kbps |
| Fiber General | Optical Mode | Multi-mode |
| General | Serial Type | RS-232/422/485 |
| Fiber General | Max. Distance | 4 km |
| General | Serial Connector | Terminal Block |
| Fiber General | Optical Connector | ST |
| General | Fiber Type | Multi-mode |
| Fiber General | Optical Wavelength | 820 nm |
| Fiber General | Optical Port Number | 1 |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| Protection | Isolation | 2,000 VDC |
| Protection | Surge Protection | 600W |
| Certification | Safety | UL C1/D2 (Class I, Division 2) |
| Power | Power Input (DC) | 10 ~ 48 VDC |
| Accessory General | Mounting | DIN |

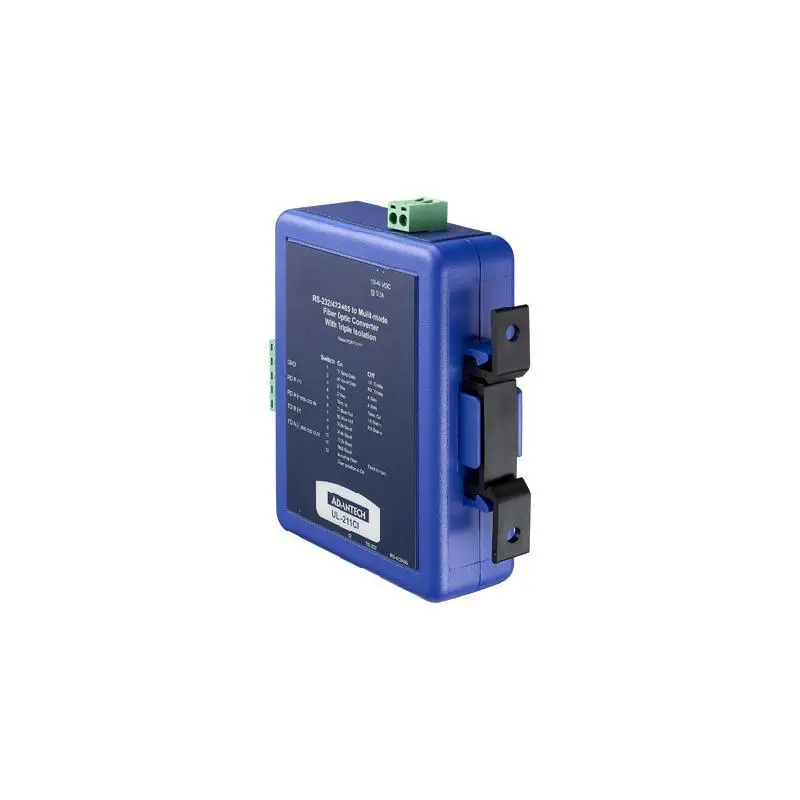

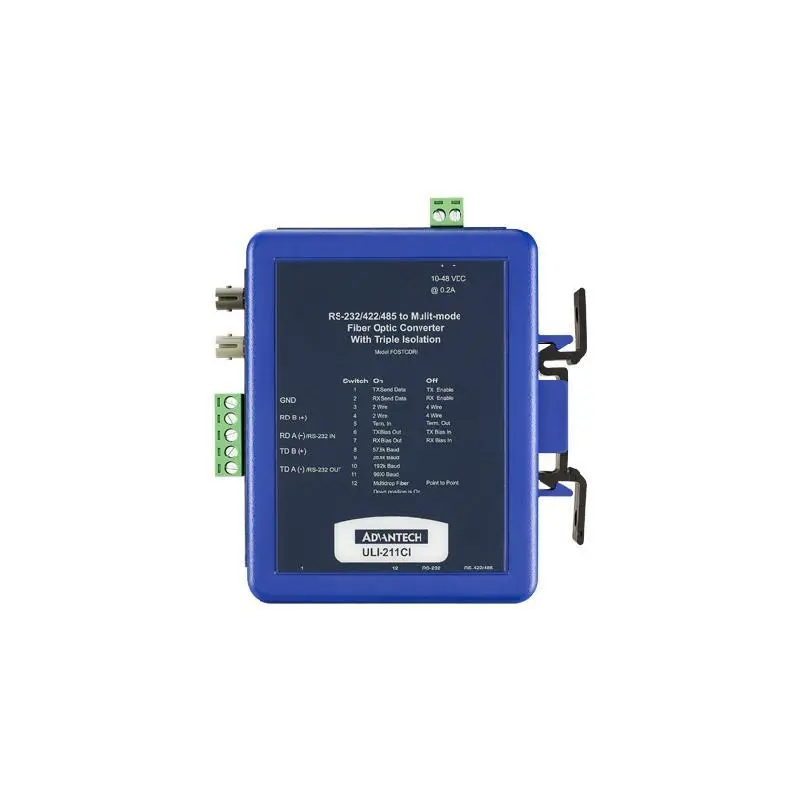

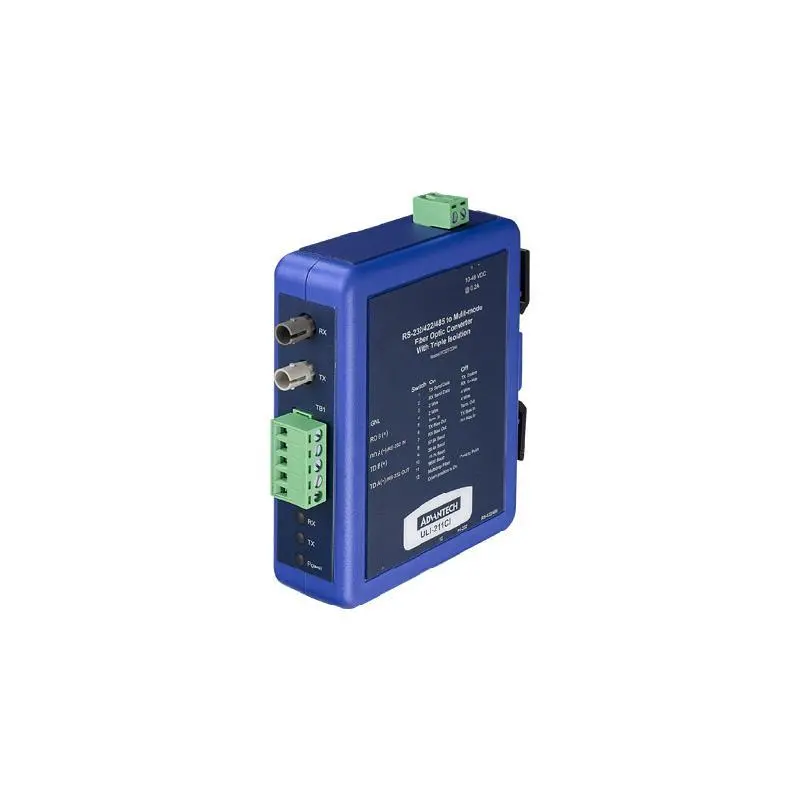

Advantech BB-FOSTCDRI ULI-211CI -Triple Isolated RS-232/422/485 (Terminal Block) to Multi-mode Fiber Converter (ST Connectors) DIN Rail Mounted
