| BB-485DRCI-PH | ||
| General | Technology | Serial |
| Serial Communication | Serial Converter | RS-232 to RS-422/485 |
| General | Mounting | Panel |
| Serial Communication | Serial Port Connector Type | 1 x DB9 Female, 1 x Terminal Block |
| General | Power | 10-48VDC |
| Serial Communication | Serial Port Number | 1 |
| General | Temperature | -40 to 85C |
| Serial Communication | Maximum Serial Transmission Speed | 115.2 Kbps |
| Environment | Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| General | Isolation | 2kV |
| General | Power and Data Isolated | Yes |
| Protection | Isolation | 2,000 VDC |
| Protection | Surge Protection | 600W |
| Certification | Substation | IEC-61850-3 |
| Power | Power Input (DC) | 10 ~ 48 VDC |
| Accessory General | Mounting | Panel, DIN |
| Mechanism | Enclosure (Metal) | Metal |
| Certification | Safety | Class I, Division 2, UL 508 |

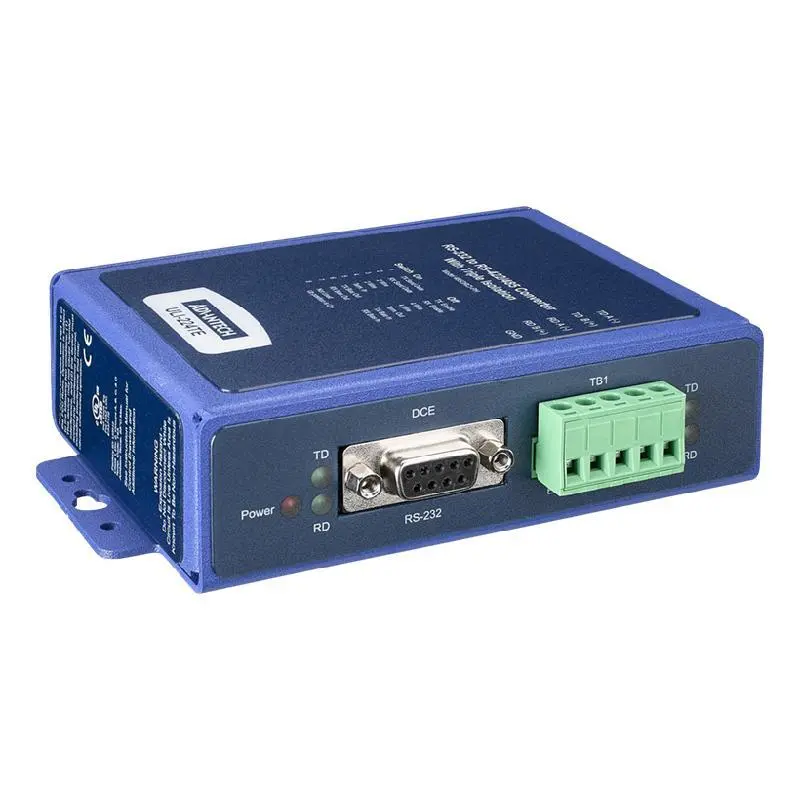

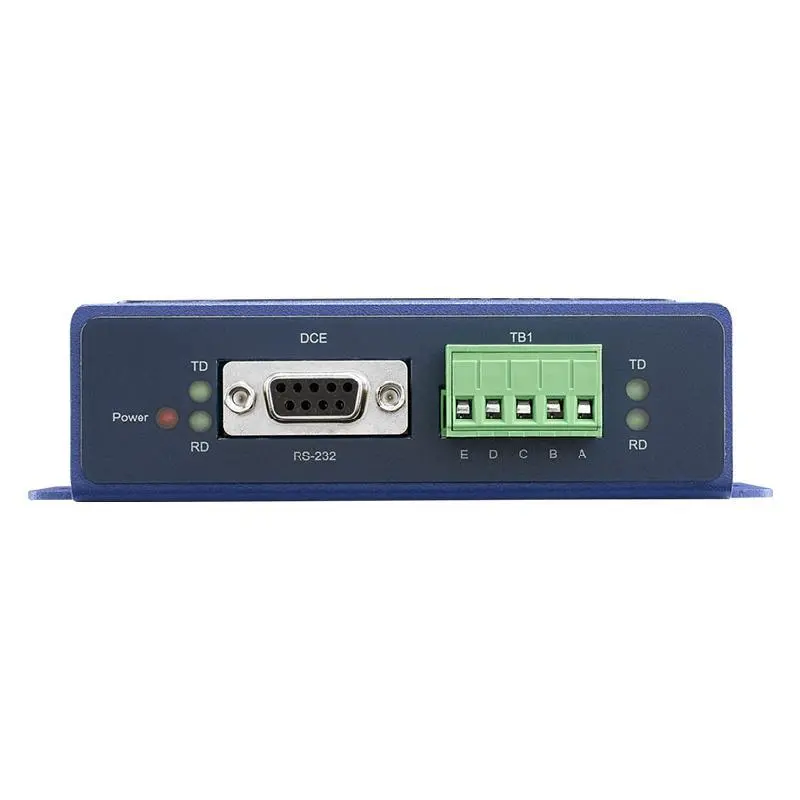

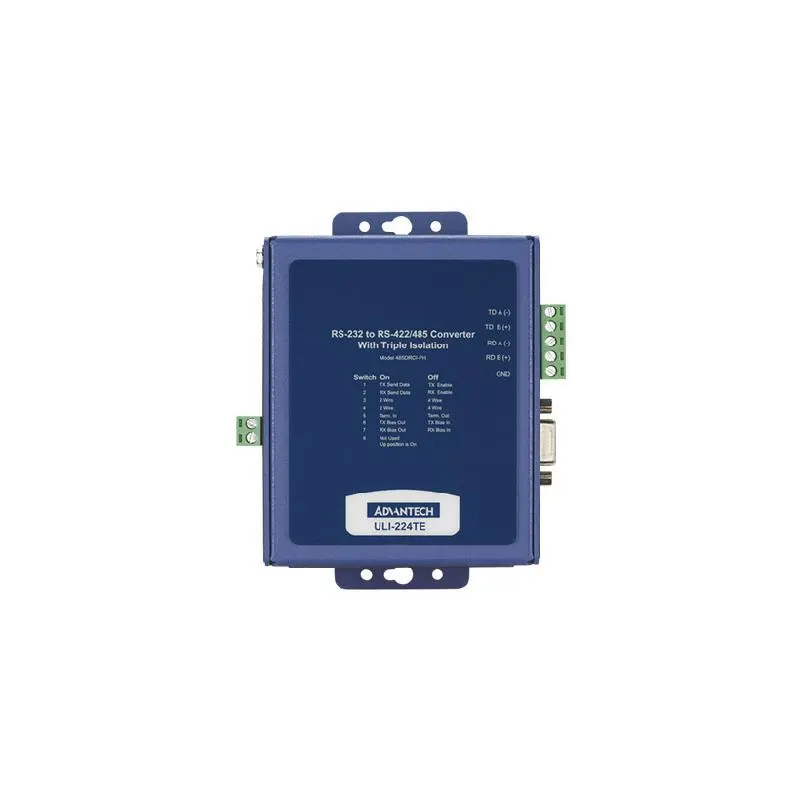

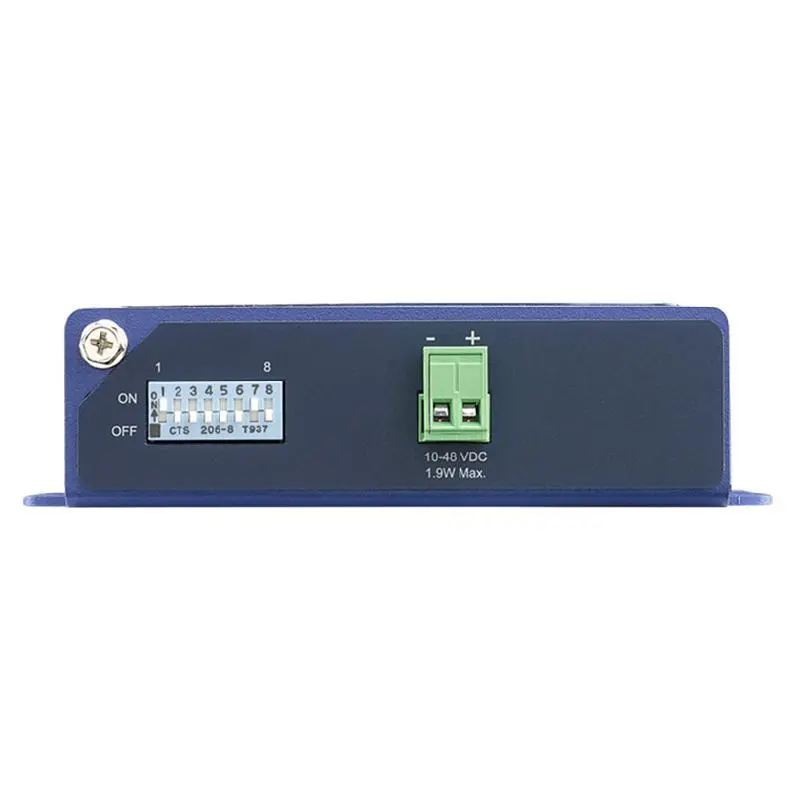

Advantech BB-485DRCI-PH ULI-224TE - Heavy Industrial RS-232 (DB9 Female to RS-422/485 (Terminal Block) Converter. Panel Mount Metal Chassis
