| EKI-2741FPI-AE | EKI-2741FPI-B | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af/at | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af/at |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | 100 m |
| PoE Information | PoE Port Number | 1 | 1 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km | Up to 110 km |
| Switch Properties | Switch Fabric Speed | 1.0Gbps | 1.0Gbps |
| Switch Properties | Jumbo Frame | 10K bytes | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 36.7 x 108.4 x 103.5 mm | 36.7 x 108.4 x 103.5 mm |
| Mechanism | IP Rating | IP31 | IP31 |
| Mechanism | Enclosure (Metal) | Metal | Metal |
| Mechanism | Weight | 0.45 kg (1.0 lb) | 0.45 kg (1.0 lb) |
| Mechanism | Mounting | DIN-rail, Wall | DIN-rail, Wall |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% | 10~95% |
| MTBF | Time | 743,594 hours | Max. 34.5W |
| Power | Power Operating Current | 0.07A @48Vdc(system) | 2-pin removable screw terminal |
| Power | Power Consumption | 34W | CE, FCC Class A |
| Power | Power Connector Type | 2-pin removable screw terminal | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Certification | EMI | CE, FCC Class A | IEC 60068-2-27 |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 | IEC 60068-2-6 |
| Certification | Freefall | IEC 60068-2-32 | 5 years |
| Certification | Vibration | IEC 60068-2-6 | LVD 62368-1 |
| Warranty | Warranty Period | 5 years | |
| Certification | Safety | UL508, Class 1 Division 2 | |

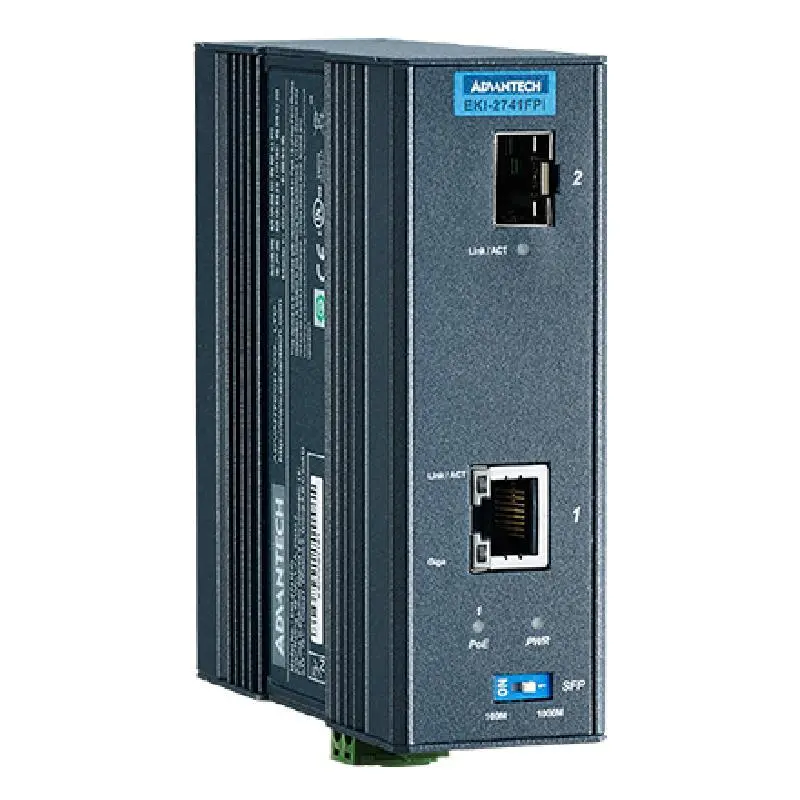

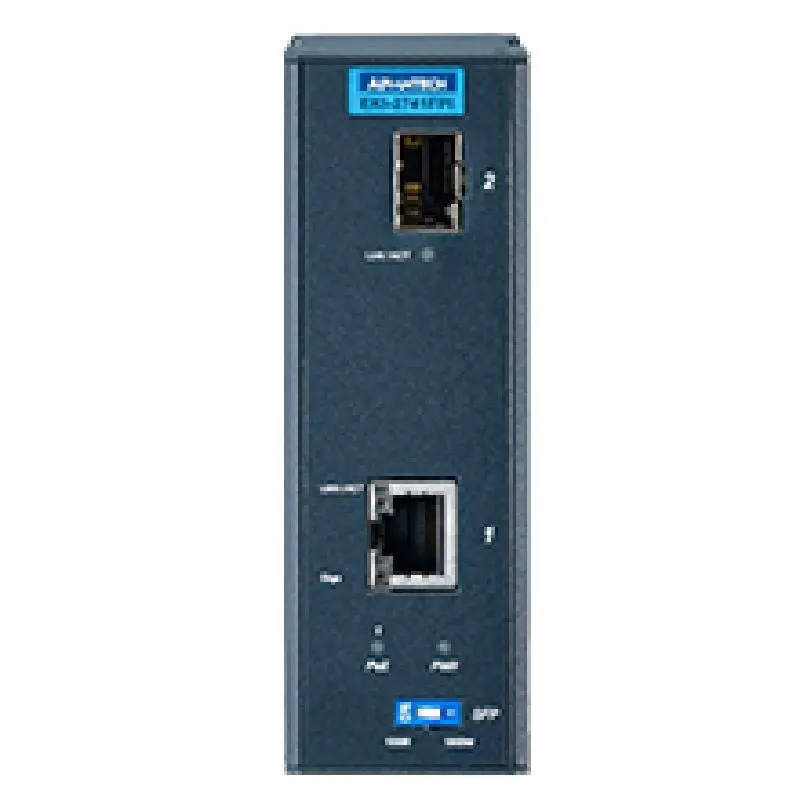

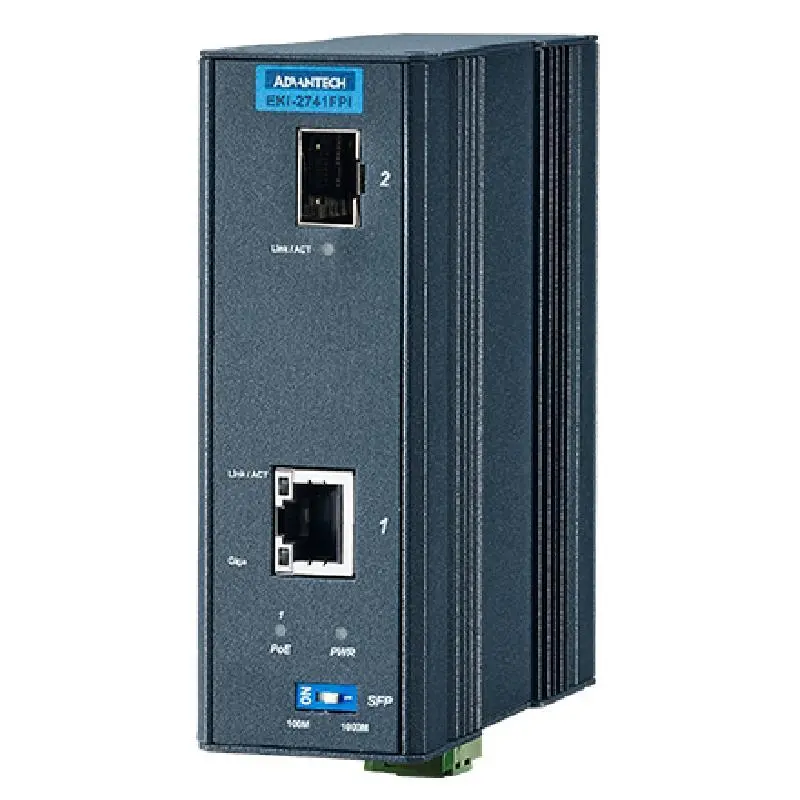

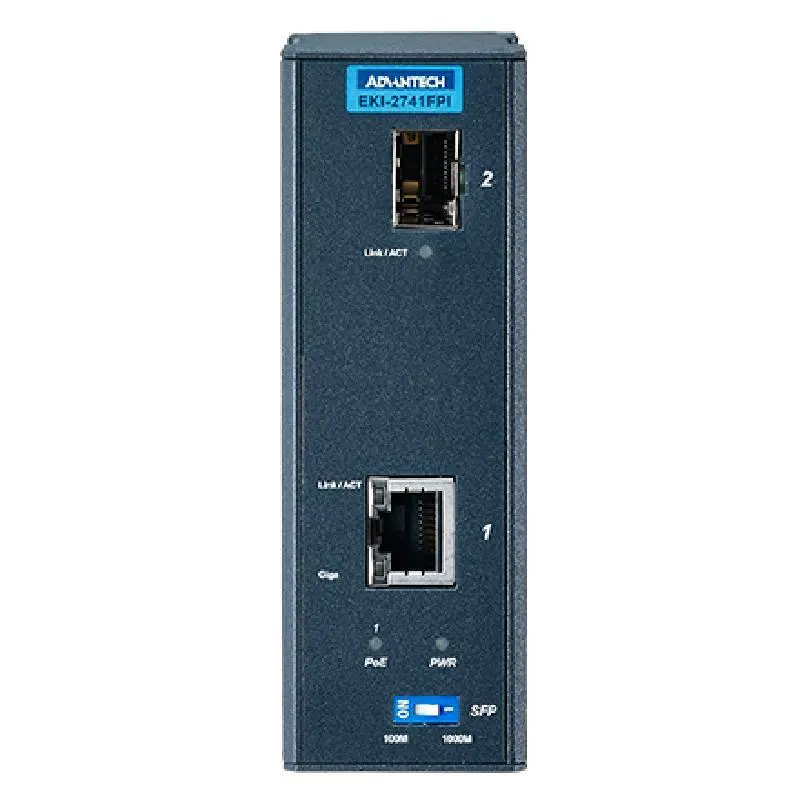

Advantech EKI-2741FPI 1GE PoE, SFP Injector ,IEEE802.3af/at, 24~48VDC, -40~75℃
