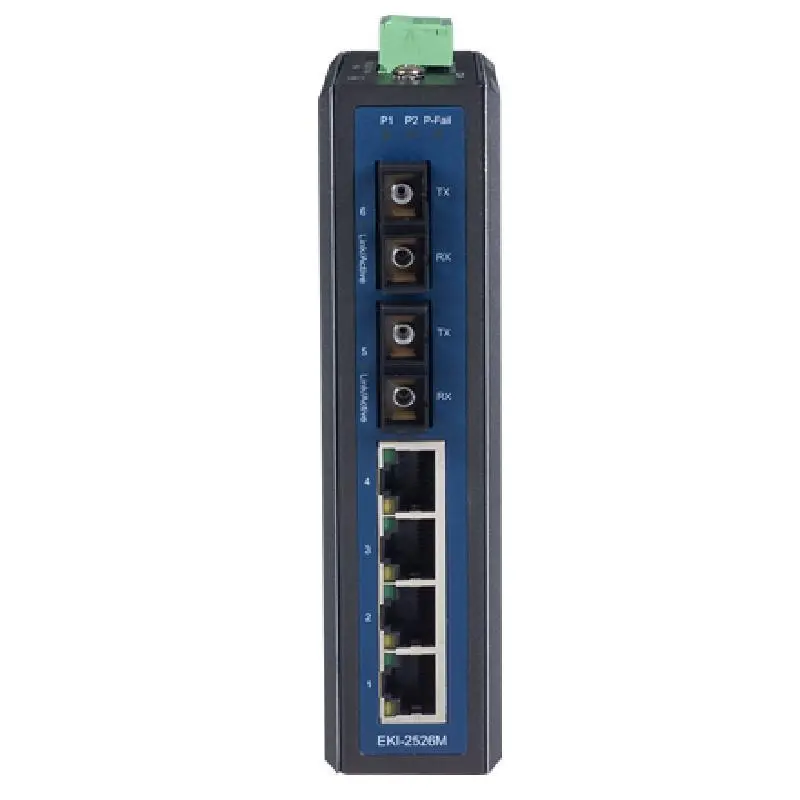

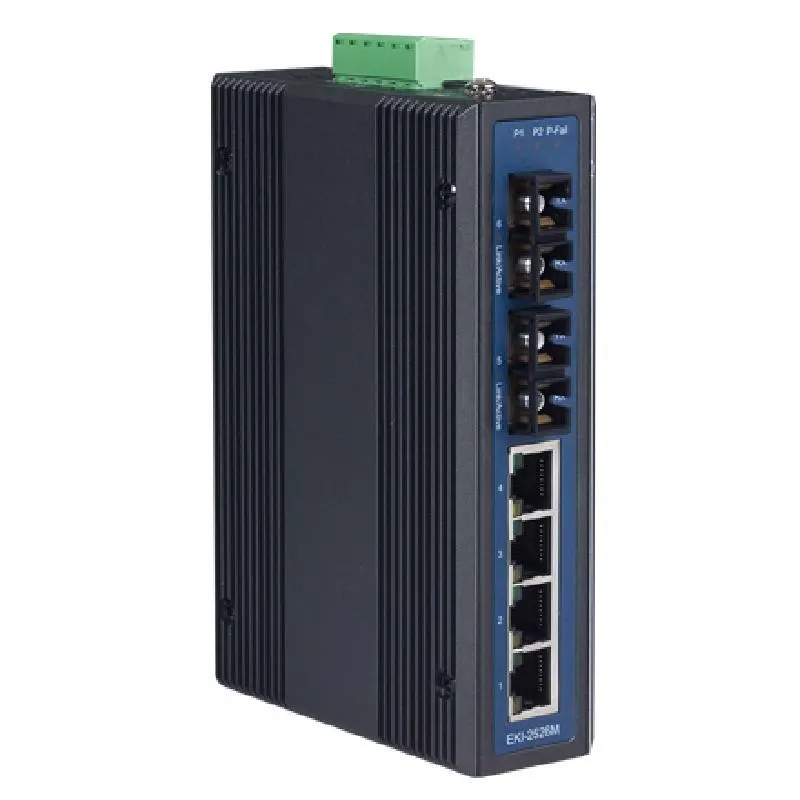

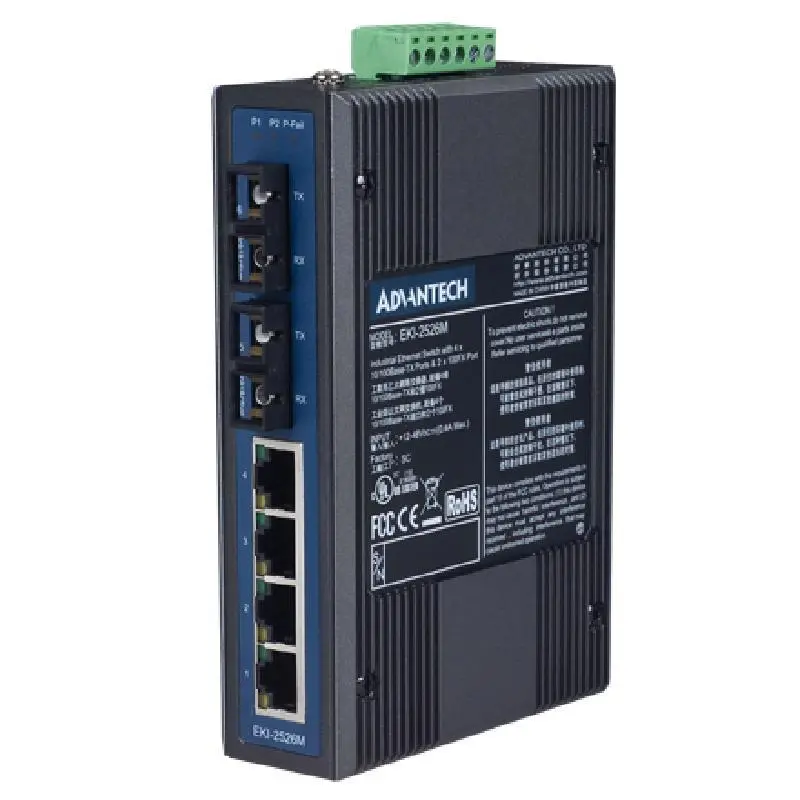

Advantech EKI-2526M 4FE+2FE ST Multi-mode Unmanaged Ethernet Switch

    Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector

    Provides 2 x 100 Mbps Multi-mode SC type fiber optic port

    Supports full/half duplex flow control

    Supports MDI/MDI-X auto crossover

    Provides Redundant 12 ~ 48 VDC power input

    Provides flexible mounting: DIN-rail and Wall mount

EKI-2526M-AE EKI-2526M-ST-AE
Certification EMI FCC Part 15 Subpart B Class A, EN 55022 Class A FCC Part 15 Subpart B Class A, EN 55022 Class A
Certification EMS EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Certification Safety UL/cUL 60950-1, Class I Division 2 UL/cUL 60950-1
Environment Temperature (Min. Operating) -10°C (14°F) -10°C (14°F)
Environment Temperature (Max. Operating) 60°C (140°F) 60°C (140°F)
Environment Operating Temperature -10 ~ 60°C (14 ~ 140°F) -10 ~ 60°C (14 ~ 140°F)
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F) -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication Fiber Port Number 2 2
Ethernet Communication Fiber Port Interface Multi-Mode Multi-Mode
Ethernet Communication Fiber Port Connector Type SC Type ST type
Ethernet Communication Fiber Transmission Distance 2 km 2 km
Ethernet Communication Fiber Transmission Speed 100 Mbps 100 Mbps
Ethernet Communication RJ-45 Port Number 4 4
Ethernet Communication RJ-45 Port Connector Type RJ-45 RJ-45
Ethernet Communication RJ-45 Transmission Distance 100 m 100 m
Ethernet Communication RJ-45 Transmission Speed 10/100 Mbps 10/100 Mbps
Mechanism Mounting (DIN-rail) Yes Yes
Mechanism Mounting (Stack) - -
Mechanism Mounting (Panel) - -
Mechanism Mounting (Wall) Yes Yes
Mechanism Mounting (Rack Mount) - -
Mechanism Mounting (Pole Mount) - -
Mechanism Dimensions (W x H x D) 37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.) 37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.)
Mechanism Enclosure (Plastic) - -
Mechanism IP Rating IP30 IP30
PoE Information PoE Port Number - -
PoE Information PoE Budget - -
PoE Information PoE Output - -
PoE Information Support PoE No No
Power Power Connector Type 6-pin removable screw terminal 6-pin removable screw terminal
Power Power Consumption 6.41W 6.41W
Power Power Input (AC) - -
Power Power Input (DC) 12 ~ 48 VDC 12 ~ 48 VDC
Power Power Input (PoE) - -
Power Power Input (Battery) - -
Power Redundant Dual Inputs Yes Yes
Warranty Warranty Period 5 years 5 years
Protection Overload Current Present Present
Protection Reverse Polarity Present Present
