| EKI-2525M-BE | ||
| Certification | EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| Certification | EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 |
| Certification | Safety | UL/cUL 60950-1, Class I Division 2 |
| Environment | Temperature (Min. Operating) | -10°C (14°F) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | 1 |
| Ethernet Communication | Fiber Port Interface | Multi-Mode |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Ethernet Communication | Fiber Transmission Distance | 2 km |
| Ethernet Communication | Fiber Transmission Speed | 100 Mbps |
| Ethernet Communication | RJ-45 Port Number | 4 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.) |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power | Power Consumption | 5W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Redundant Dual Inputs | Yes |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |

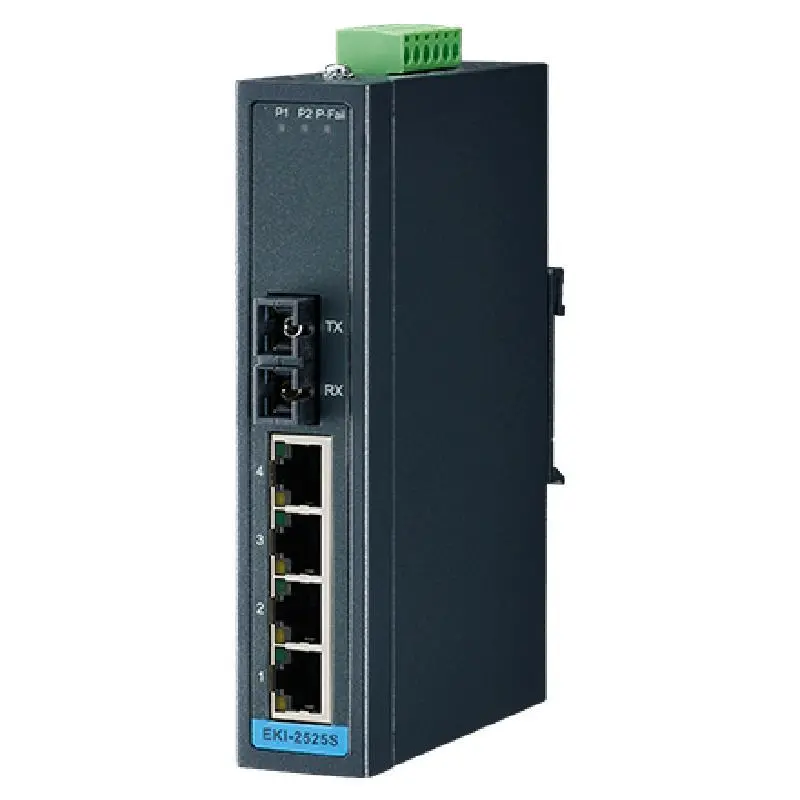

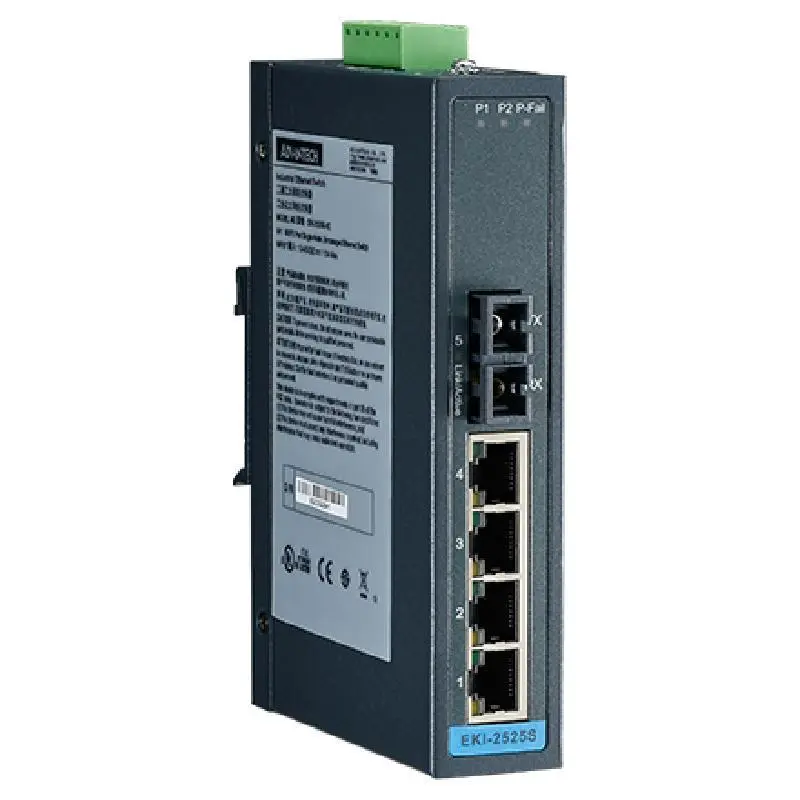

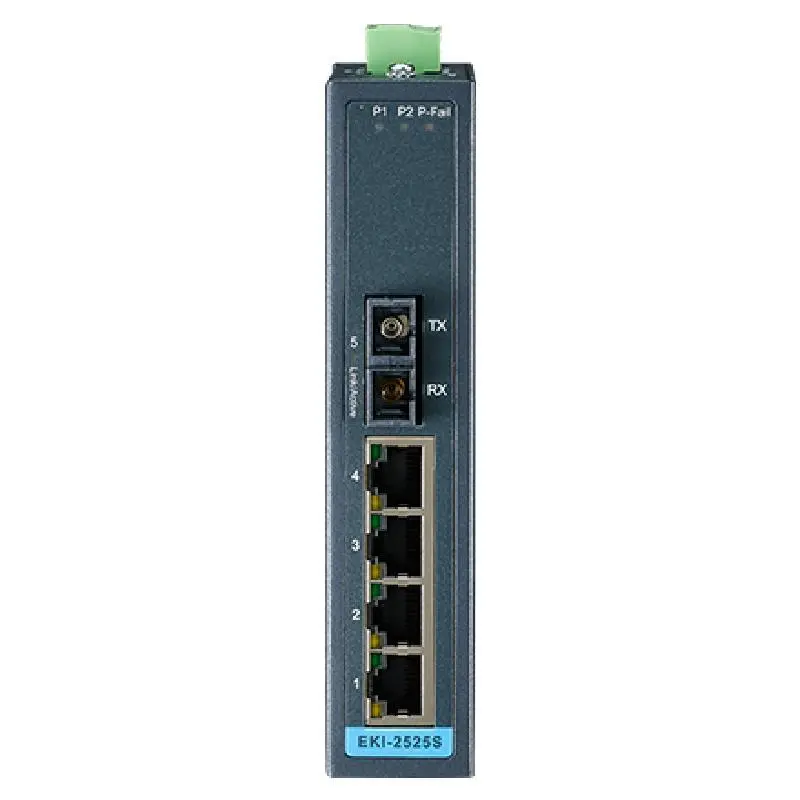

Advantech EKI-2525M 4FE+1FE SC Multi-mode Unmanaged Ethernet Switch
