| BB-SR30519110 | ||
| Mechanical | Weight | 170 |
| Region | NAM | Yes |
| Interface | ETH Port(s) | 5 |
| Region | EMEA | – |
| Interface | USB | 1 |
| Interface | I/O | 2 x DI + 1 x DO |
| Region | LATAM | – |
| Interface | MicroSD | Yes |
| Region | APAC | – |
| Region | LTE450 | – |
| Wi-Fi / GPS / PoE | WiFi 2.4/5 GHz | Yes |
| Region | AUS/NZ | – |
| Wi-Fi / GPS / PoE | GNSS receiver | Yes |
| PoE Information | PoE-PD | Yes |
| Region | China | – |
| Antenna Connectors | Cellular Antennas | 2 x SMA |
| Region | Korea | – |
| Antenna Connectors | WiFi Antennas | 1 x R-SMA |
| Region | GSM-R | – |
| Antenna Connectors | GPS Antenna | 1 x SMA |
| Region | Global | – |
| General | GPRS/EDGE | Yes |
| Power | Power Input (DC) | 10 ~ 60 VDC |
| General | 3G/HSPA+ | Yes |
| Power | Sleep Mode | Yes |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| General | LTE cat.1 | – |
| Environment | Operating Humidity | 0~95% |
| General | LTE cat.4 | – |
| Mechanism | Dimensions (W x H x D) | 125 x 55 x 97 mm |
| General | LTE450 | – |
| Mechanism | Enclosure (Plastic) | Yes |
| General | Twin module | – |
| Mechanism | Mounting (DIN-rail) | Yes |
| Port | LED | 2 |
| Software | Advances Software Tool | WA/DMP, WA/VPN |
| WiFi / GPS / PoE | WiFi 2.4 GHz / WiFi 2.4 GHz SMA | – / – |
| WiFi / GPS / PoE | WiFi 2.4/5 GHz | Yes |
| WiFi / GPS / PoE | GPS | Yes |
| WiFi / GPS / PoE | PoE PD | Yes |
| WiFi / GPS / PoE | PoE PSE | – |
| Interfaces | ETH port(s) | 5 |
| Interfaces | USB | Yes |
| Interfaces | RS232 / RS485 / RS422 | – / – / – |
| Interfaces | RS232 | – |
| Interfaces | RS485 | – |
| Interfaces | RS422 | – |
| Interfaces | MBUS / WMBUS | – / – |
| Interfaces | DUST | – |
| I/O ports | CNT (4x DI | – |
| I/O ports | I/O 1x DI + 1x DO | – |
| I/O ports | I/O 2x DI + 1x DO | Yes |
| Port | LED | Yes |
| Mechanical | Case | Plastic |
| Certifications | CE | Yes |
| Certifications | FCC/IC | Yes |
| Certifications | UL 60950-1 | – |
| Certifications | UL C1D2/Atex | Yes |
| Certifications | Carriers | AT&T / Verizon / Rogers |
| Certifications | KCC | – |
| Certifications | RCM | – |
| Certifications | CCC | – |
| Certifications | UL MX CoC | – |
| Certifications | E8 | – |
| Power | Power Supply | 10 to 60 V DC |
| Enviroment | Operating Temperature | –40 °C to +75 °C |
| Enviroment | Storage Temperature | –40 °C to +85 °C |
| Enviroment | Humidity | 0 to 95 % |
| Mechanical | Dimensions [mm] | 55 x 97 x 125 |
| Port | LED | 2x SMA |
| Port | LED | 1x R-SMA |
| Port | LED | 1x SMA |
| Cellular Module | LTE Bands | LTE B2, B4, B5, B13, B17 |
| Cellular Module | UMTS Bands | B2 (1900), B4 (1700), B5 (850) |
| Cellular Module | GSM Bands | 850, 900, 1800, 1900 |
| Cellular Module | CDMA Bands | – |
| Port | LED | SIM, WAN, DAT, PWR, USR, POE, IN0, IN1, OUT, ETH |
| Port | LED | DIN |

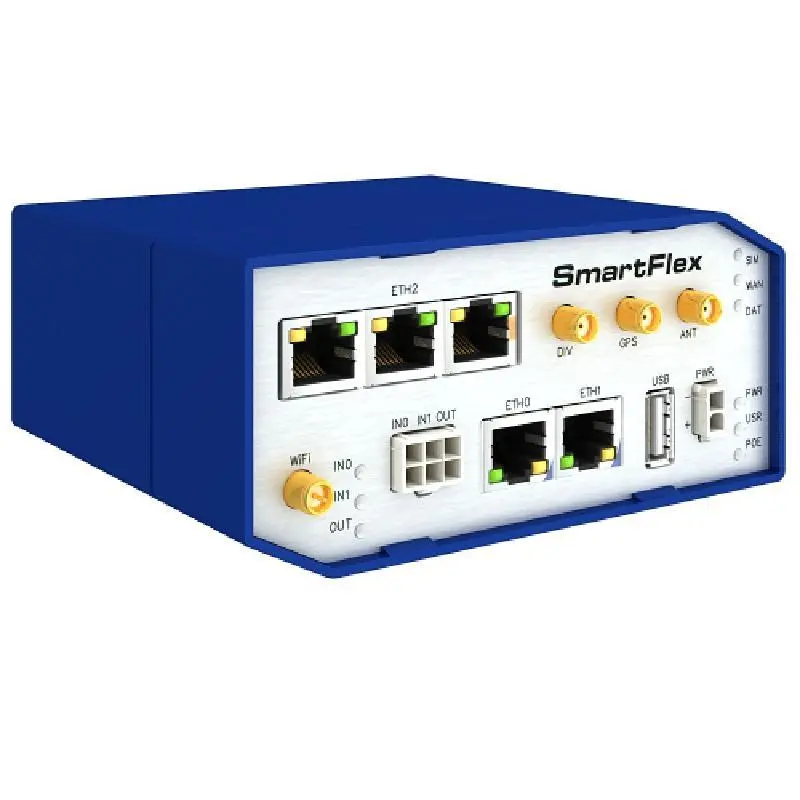

Advantech BB-SR30519110 SmartFlex, NAM, 5x Ethernet, Wi-Fi, PoE PD, Plastic, Without Accessories
