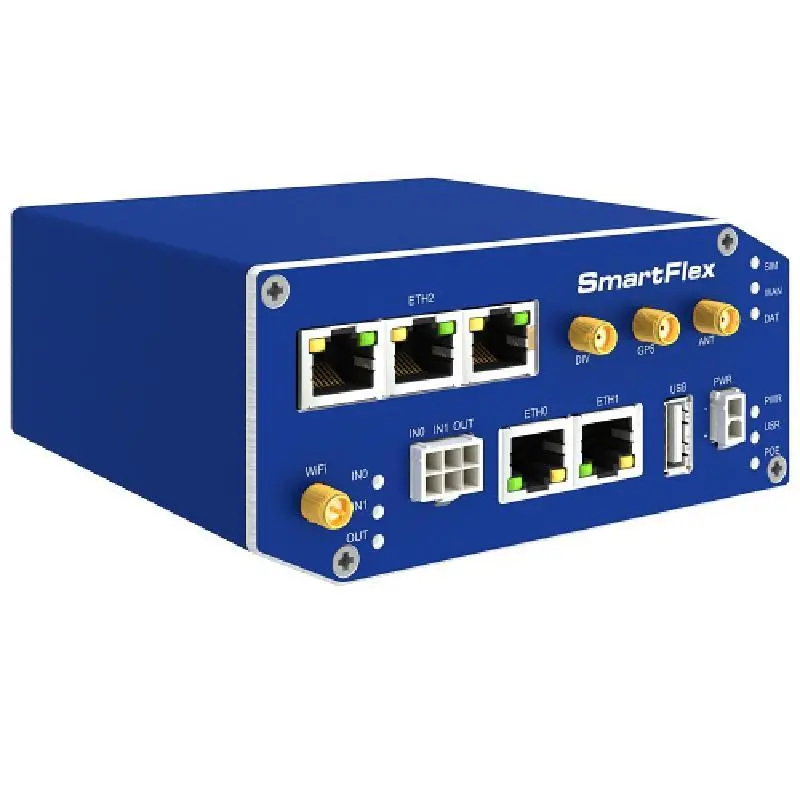

Advantech BB-SR30510120 SmartFlex, NAM, 5x Ethernet, Wi-Fi, Metal, Without Accessories

    LTE cat.3, 3G/HSPA+, GPRS/EDGE, NAM, 2x SIM

    LTE B2, B4, B5, B13, B17

    Powerful CPU and Memory, Hosting of SW IoT applications

    DIN rail mounting, Sleep mode

    5x ETH

    WiFi 2.4/5 GHz, GPS, USB, I/O 2x DI + 1x DO, MicroSD

    Operating temp. –40 °C to +75 °C, Power supply 10 to 60 V DC

    Certifications: CE, FCC/IC, UL C1D2/Atex, AT&T, Verizon

    Advanced networking, Diagnostics, VPN support, Firewall

BB-SR30510120
Mechanical Weight 380
Region NAM Yes
Interface ETH Port(s) 5
Region EMEA
Interface USB 1
Interface I/O 2 x DI + 1 x DO
Region LATAM
Interface MicroSD Yes
Region APAC
Region LTE450
Wi-Fi / GPS / PoE WiFi 2.4/5 GHz Yes
Region AUS/NZ
Wi-Fi / GPS / PoE GNSS receiver Yes
Antenna Connectors Cellular Antennas 2 x SMA
Region China
Antenna Connectors WiFi Antennas 1 x R-SMA
Region Korea
Antenna Connectors GPS Antenna 1 x SMA
Region GSM-R
Power Power Input (DC) 10 ~ 60 VDC
Region Global
General GPRS/EDGE Yes
Power Sleep Mode Yes
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
General 3G/HSPA+ Yes
Environment Operating Humidity 0~95%
General LTE cat.1
Mechanism Dimensions (W x H x D) 125 x 55 x 97 mm
General LTE cat.4
Mechanism Enclosure (Plastic) Yes
General LTE450
Mechanism Mounting (DIN-rail) Yes
General Twin module
Software Advances Software Tool WA/DMP, WA/VPN
Port LED 2
WiFi / GPS / PoE WiFi 2.4 GHz / WiFi 2.4 GHz SMA – / –
WiFi / GPS / PoE WiFi 2.4/5 GHz Yes
WiFi / GPS / PoE GPS Yes
WiFi / GPS / PoE PoE PD
WiFi / GPS / PoE PoE PSE
Interfaces ETH port(s) 5
Interfaces USB Yes
Interfaces RS232 / RS485 / RS422 – / – / –
Interfaces RS232
Interfaces RS485
Interfaces RS422
Interfaces MBUS / WMBUS – / –
Interfaces DUST
I/O ports CNT (4x DI
I/O ports I/O 1x DI + 1x DO
I/O ports I/O 2x DI + 1x DO Yes
Port LED Yes
Mechanical Case Metal
Certifications CE Yes
Certifications FCC/IC Yes
Certifications UL 60950-1
Certifications UL C1D2/Atex Yes
Certifications Carriers AT&T / Verizon / Rogers
Certifications KCC
Certifications RCM
Certifications CCC
Certifications UL MX CoC
Certifications E8
Power Power Supply 10 to 60 V DC
Enviroment Operating Temperature –40 °C to +75 °C
Enviroment Storage Temperature –40 °C to +85 °C
Enviroment Humidity 0 to 95 %
Mechanical Dimensions [mm] 55 x 97 x 125
Port LED 2x SMA
Port LED 1x R-SMA
Port LED 1x SMA
Cellular Module LTE Bands LTE B2, B4, B5, B13, B17
Cellular Module UMTS Bands B2 (1900), B4 (1700), B5 (850)
Cellular Module GSM Bands 850, 900, 1800, 1900
Cellular Module CDMA Bands
Port LED SIM, WAN, DAT, PWR, USR, POE, IN0, IN1, OUT, ETH
Port LED DIN
