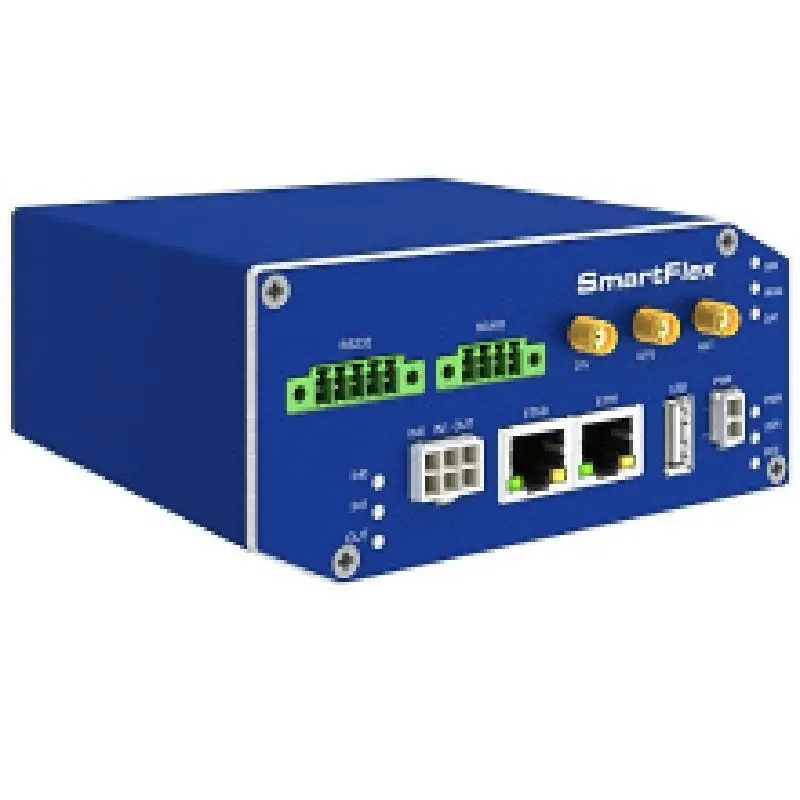

Advantech BB-SR30500320 SmartFlex, NAM, 2x Ethernet, 1x RS232, 1x RS485, Metal, Without Accessories

    LTE cat.3, 3G/HSPA+, GPRS/EDGE, NAM, 2x SIM

    LTE B2, B4, B5, B13, B17

    Powerful CPU and Memory, Hosting of SW IoT applications

    DIN rail mounting, Sleep mode

    2x ETH

    1x RS232, 1x RS485/422

    GPS, USB, I/O 2x DI + 1x DO, MicroSD

    Operating temp. –40 °C to +75 °C, Power supply 10 to 60 V DC

    Certifications: CE, FCC/IC, UL C1D2/Atex, AT&T, Verizon

    Advanced networking, Diagnostics, VPN support, Firewall

BB-SR30500320
Region NAM Yes
Interface ETH Port(s) 2
Interface USB 1
Interface RS232 1
Interface RS485/422 1
Interface I/O 2 x DI + 1 x DO
Interface MicroSD Yes
Wi-Fi / GPS / PoE GNSS receiver Yes
Antenna Connectors Cellular Antennas 2 x SMA
Antenna Connectors GPS Antenna 1 x SMA
Power Power Input (DC) 10 ~ 60 VDC
Power Sleep Mode Yes
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
Environment Operating Humidity 0~95%
Mechanism Dimensions (W x H x D) 125 x 55 x 97 mm
Mechanism Enclosure (Metal) Metal
Mechanism Mounting (DIN-rail) Yes
Software Advances Software Tool WA/DMP, WA/VPN
