| FPM-8151H-R3BE | ||
| Environment | Ingress Protection | Front Panel IP65 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -30~80 °C (-22~176 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| General | Humidity (Storage) | 10~95% RH (non-condensing) |
| General | Rated Voltage | 24 VDC |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI, C1D2 |

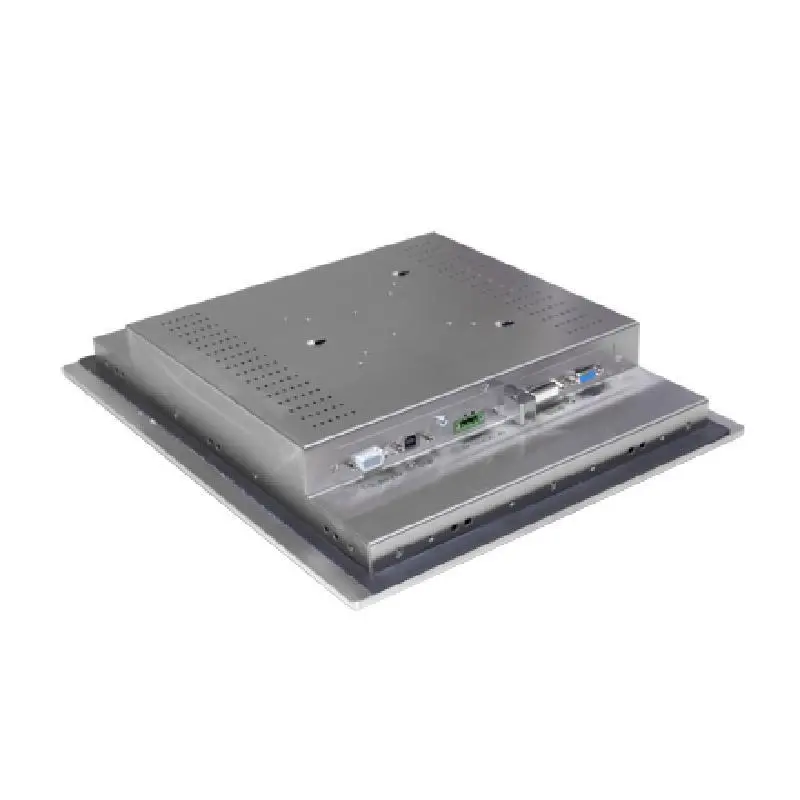

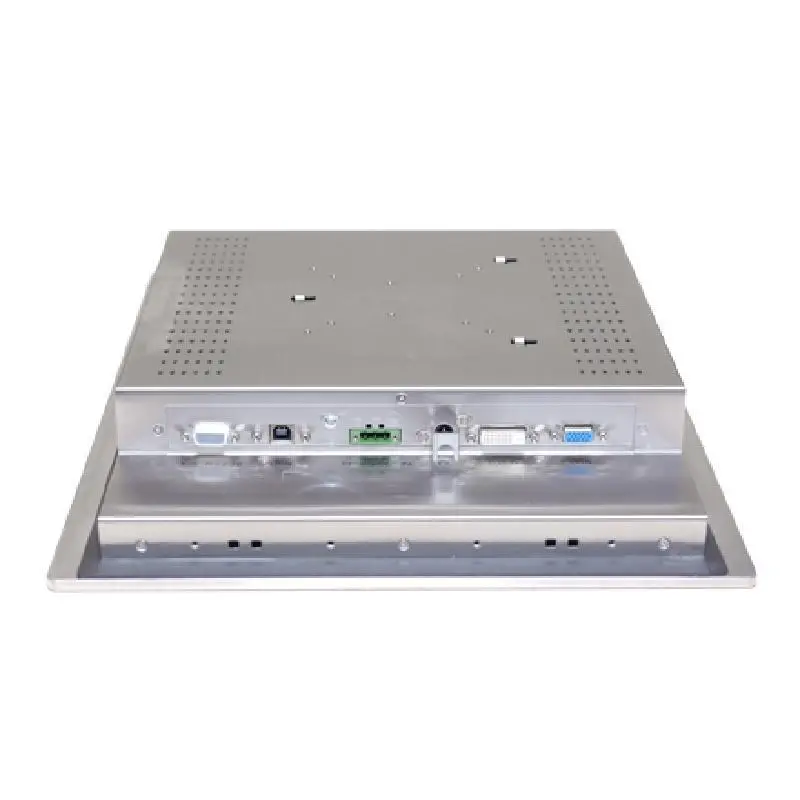

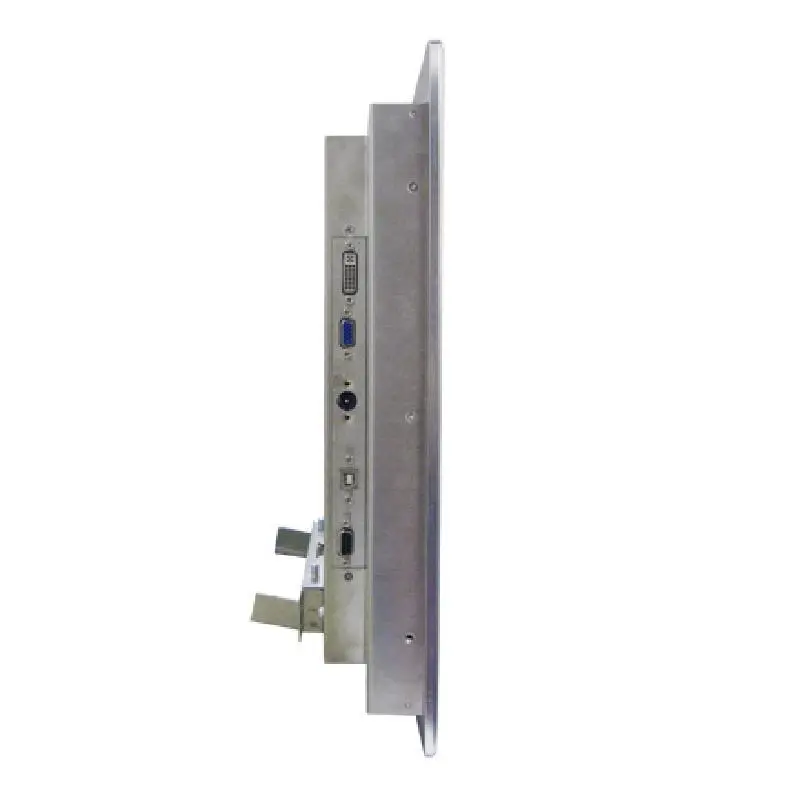

| Hardware | I/O | 1 x VGA, 1 x DVI, 1 x RS-232, 1 x USB |
| Hardware | OS Support | Windows 2000, XP, Vista, 7, XPe, CE and Linux |
| Hardware | OSD Controls | OSD panel on front panel |
| Hardware | Power Consumption | 12 W @ 24 VDC |
| Hardware | Power Input | 24 VDC |
| Hardware | Power Requirement | 24 VDC |
| Hardware | Video Port | VGA, DVI |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 15" |
| LCD Display | Luminance (cd/m2) | 350 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 160/140 |
| Mechanical | Dimension (W x H x D) | 422 x 338 x 68 mm |
| Mechanical | Enclosure | 316L Stainless Steel |
| Mechanical | Form Factor | Passive Cooling |

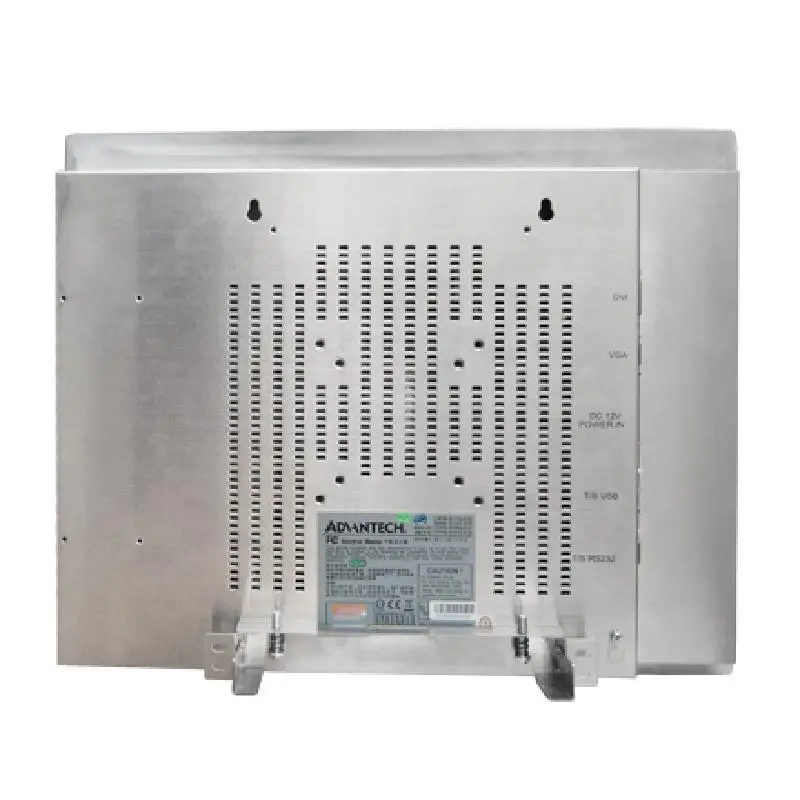

| Mechanical | Mounting | Panel |
| Mechanical | Weight (Net) | 8.5 kg (18.74 lb) |
| Touchscreen | Touch Type | 5-wire resistive |

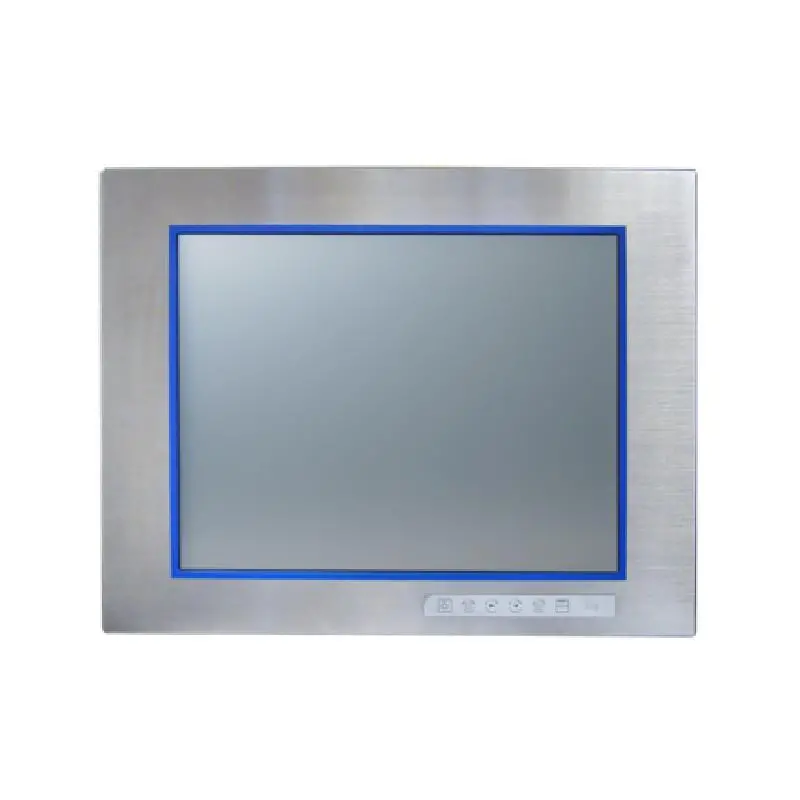

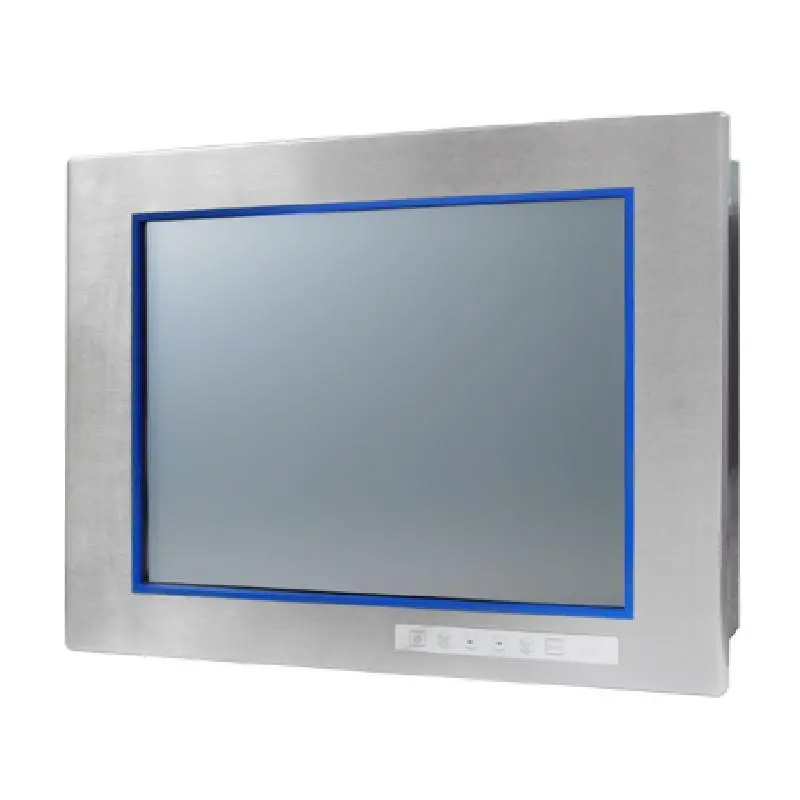

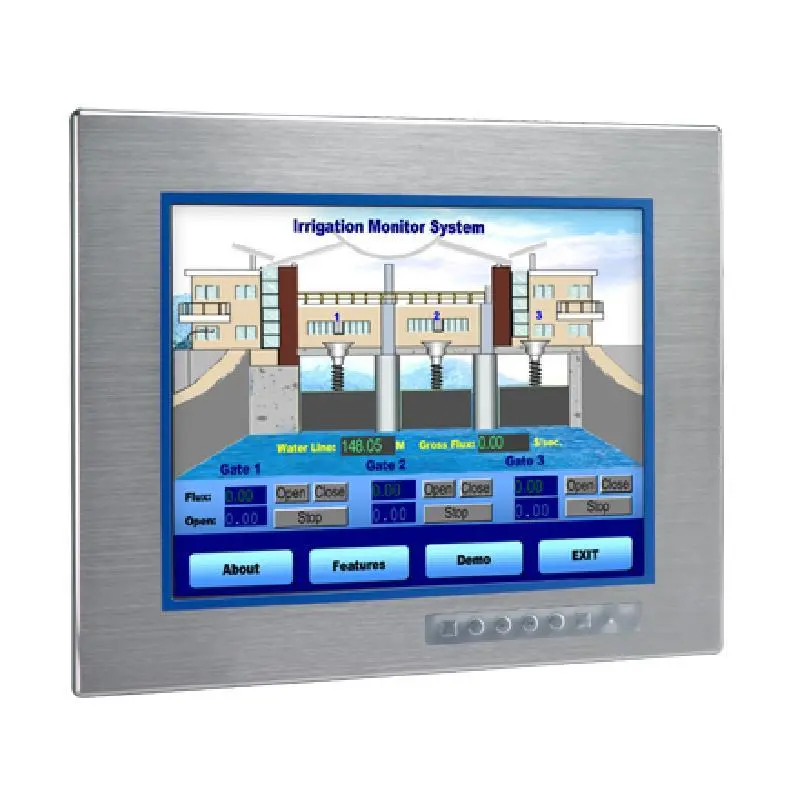

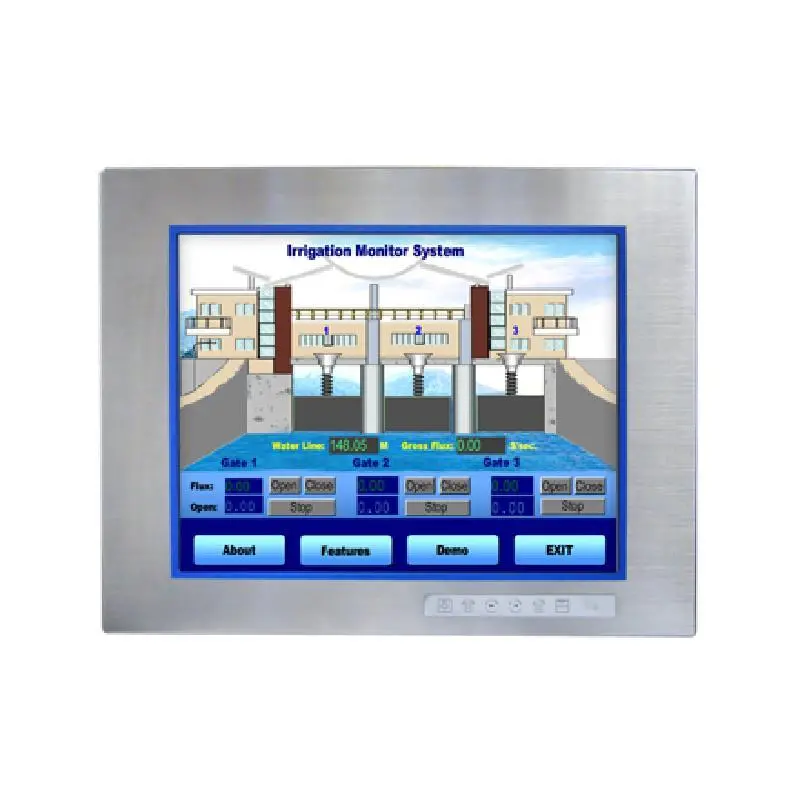

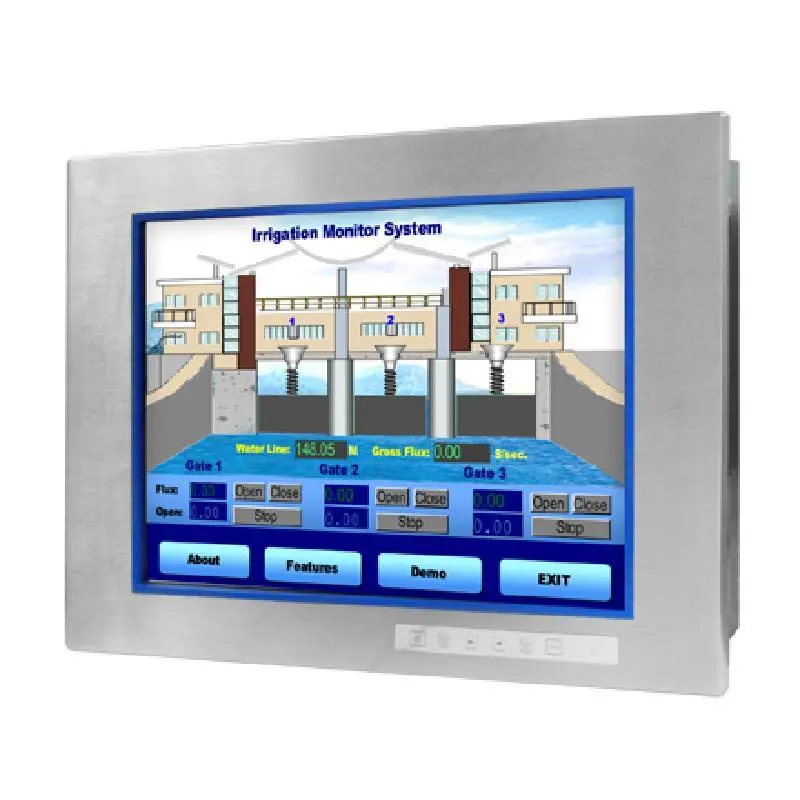

Advantech FPM-8151H 15" XGA Industrial Monitor for Hazardous Location, with "316L Stainless Steel Front Panel"
