| UNO-1372GH-E3AE | ||
| Environment | Ingress Protection | IP40 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 5 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC, CCC, BSMI, C1D2 |
| Hardware | CPU | Intel® Atom® E3845 1.91GHz Quad-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Memory | 1 x SO-DIMM with 4 GB DDR3L 1333 MHz |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSC, WES7, Linux |
| Hardware | Power Input | 9~36 VDC |
| Hardware | Storage | 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay |
| I/O Interface | Audio | Line-Out |
| I/O Interface | Displays | 1 x VGA, 1 x HDMI |
| I/O Interface | Expansion | 2 x Full-size mPCIe Slot |
| I/O Interface | LAN Ports | 3 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 4-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-422/485 |
| I/O Interface | USB Ports | 1 x USB 3.0, 2 x USB 2.0 |
| Local I/O | General Digital I/O | 4-ch DI, 4-ch DO |
| Mechanical | Dimension (W x H x D) | 85 x 139 x 152 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.6 Kg (3.5 lb) |

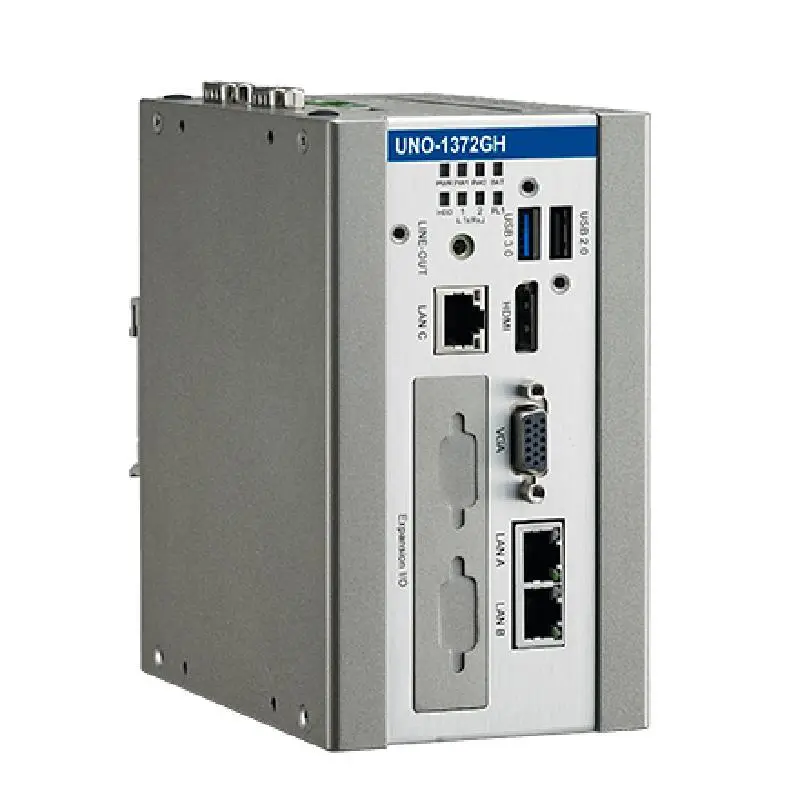

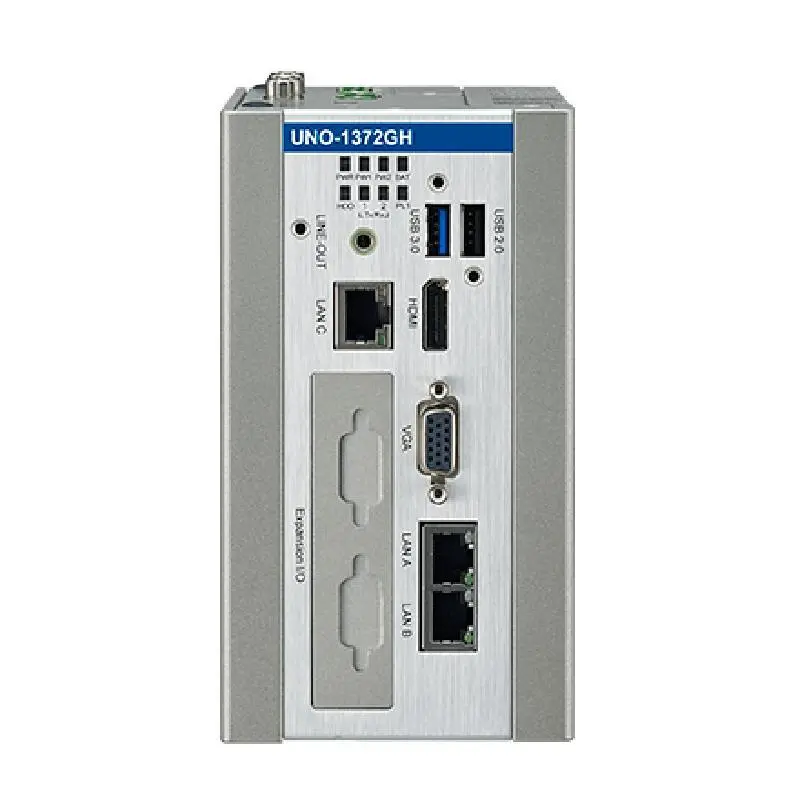

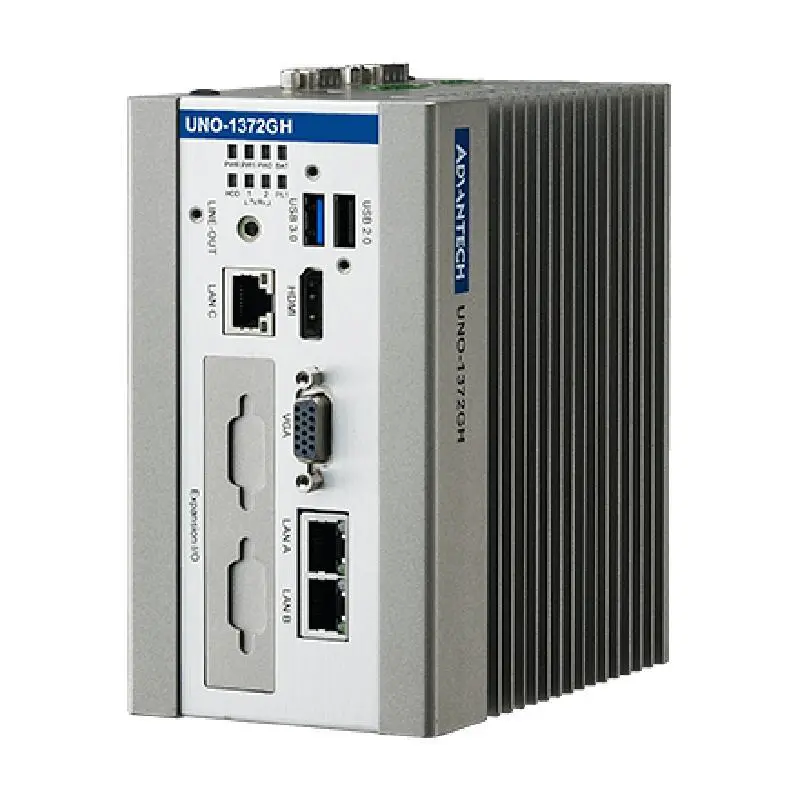

Advantech UNO-1372GH Explosion-Proof DIN-Rail Gateway with Intel® Atom® E3845
