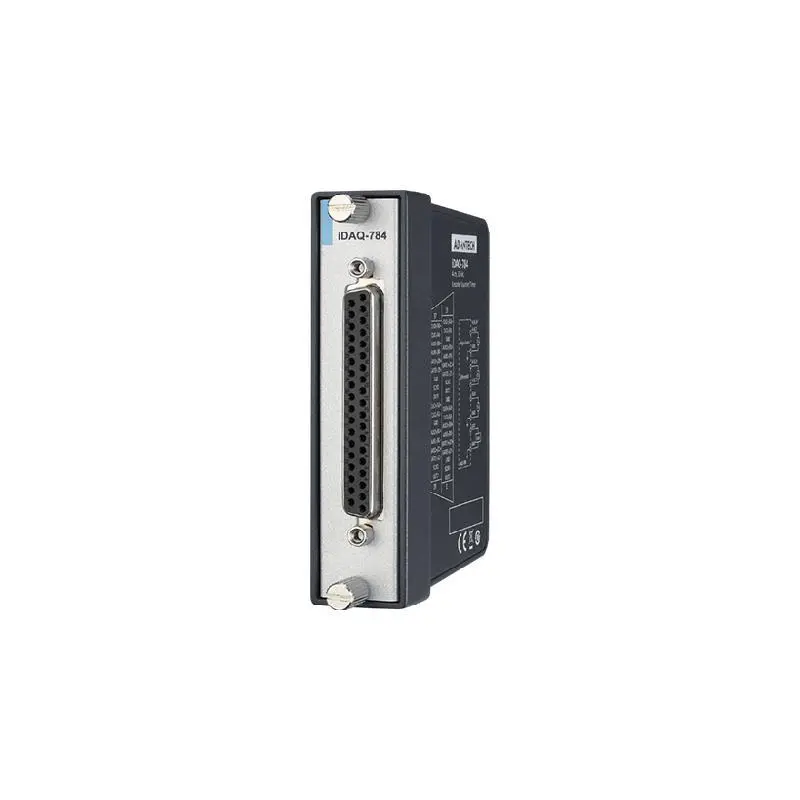

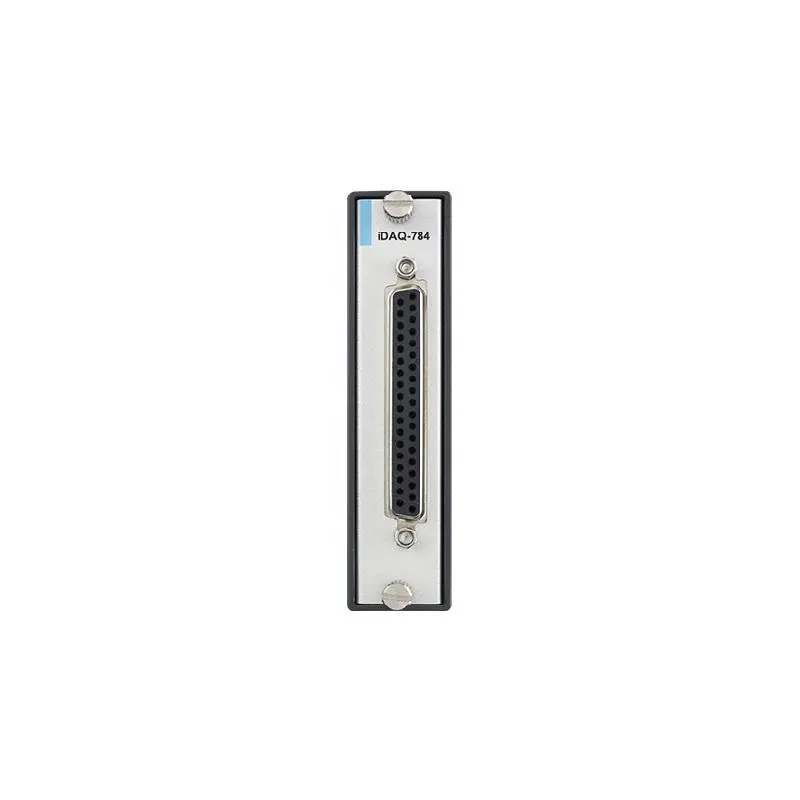

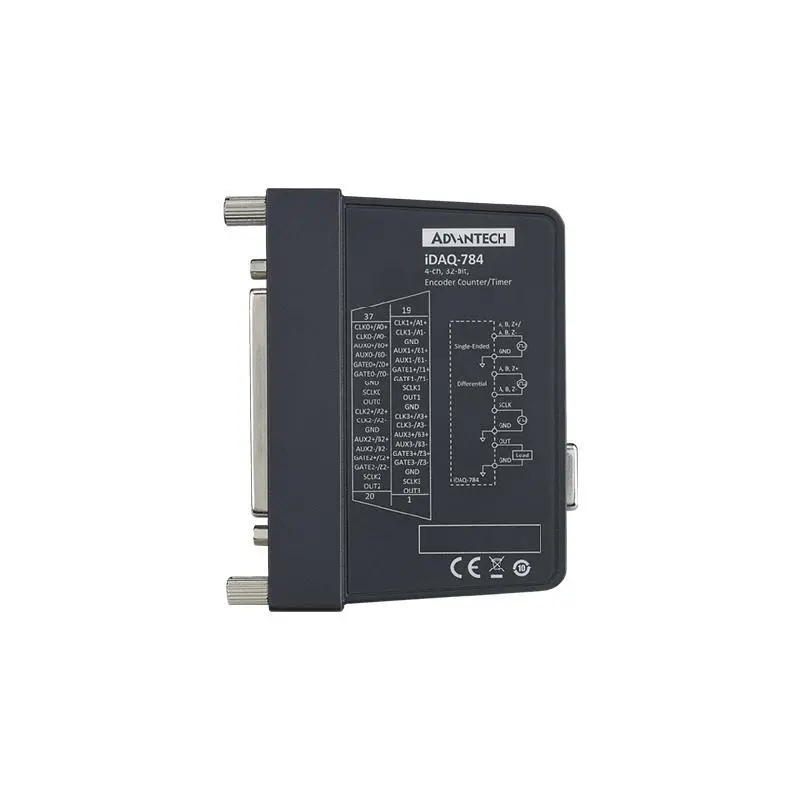

Advantech iDAQ-784 4-ch, 32-bit Encoder Counter/Timer iDAQ Module

4x 32-bit encoder/counter

Support encoder modes: Quadrature (X1, X2, X4), Two-pulse (CW/CCW), Pulse-direction (Signed Pulse)

Programmable trigger output (preload FIFO) for position comparison

Compare output as trigger or conversion clock to iDAQ modules via iDAQ chassis

Built-in digital filter

Buffered acquisition synchronized with other iDAQ modules

		IDAQ-784-A
Counter/Encoder Input	Channels	4
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Mode	Counter (up/down, bi-direction, up, A/B Phase)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
