| IDAQ-871-A | ||
| Analog Input | Channels | 4 |
| Analog Input | Resolution(Bits) | 24-bit |
| Analog Input | Sampling Rates(S/s) | 25.6 KS/s (per channel) |
| Analog Input | Input Range | ±1 V/V, ±500 mV/V, ±250 mV/V, ±125 mV/V, ±62.5 mV/V, ±31.25 mV/V, ±15.63 mV/V, ±7.81 mV/V |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Vibration Protection | 5 Grms, random |
| Environment | Shock Protection | 30 G, half sine |

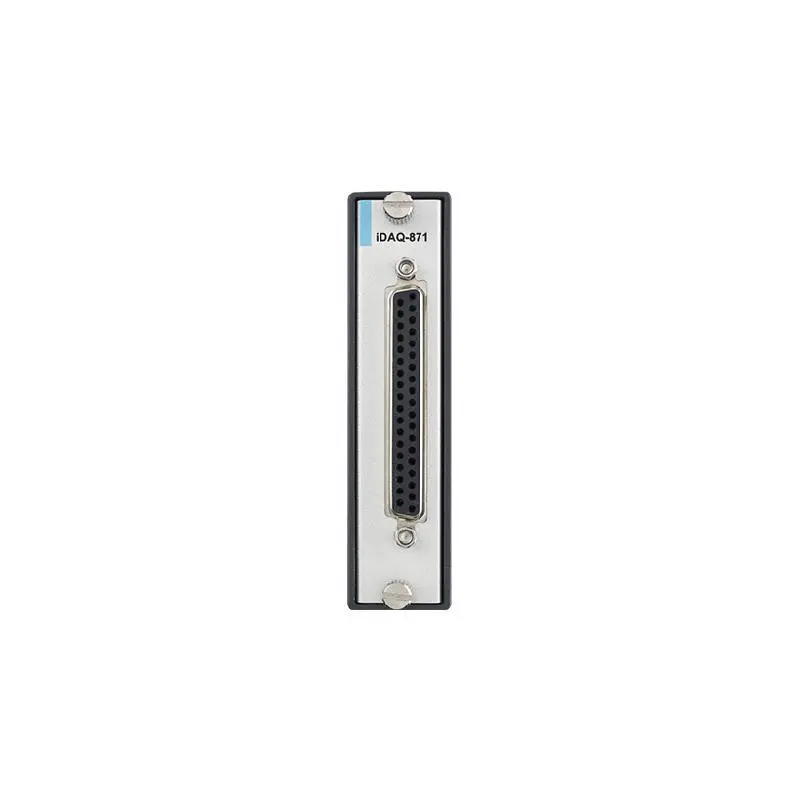

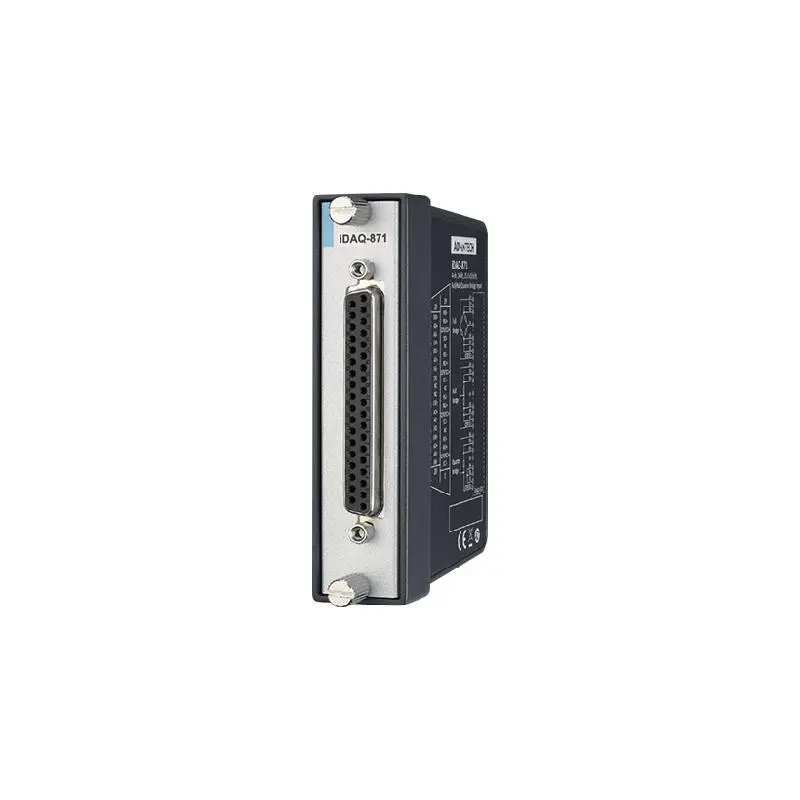

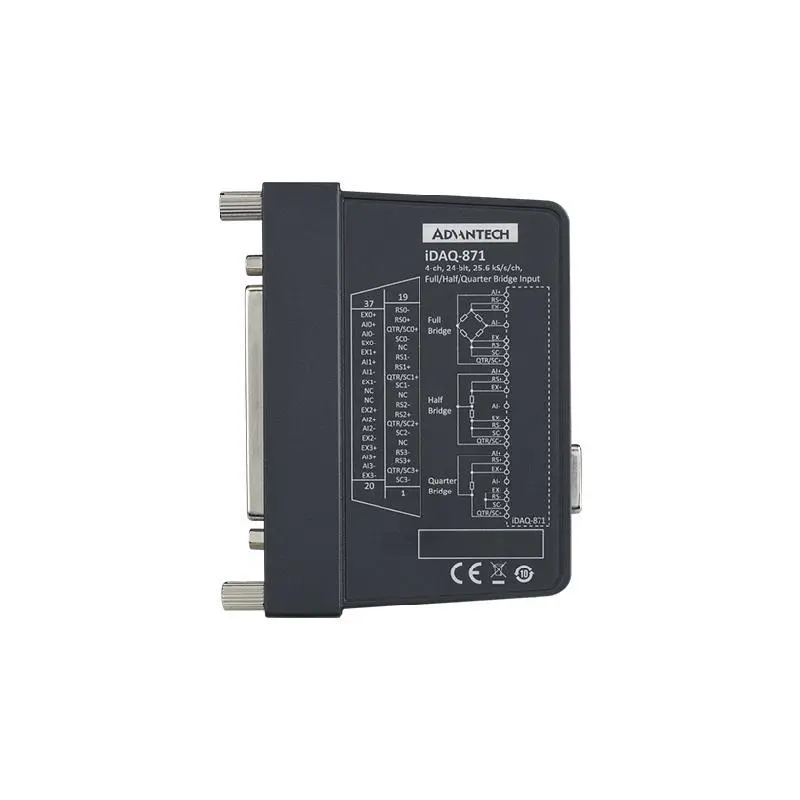

Advantech iDAQ-871 4-ch, 24-bit, 25.6kS/s, Full/Half/ Quarter Bridge Input iDAQ Module
