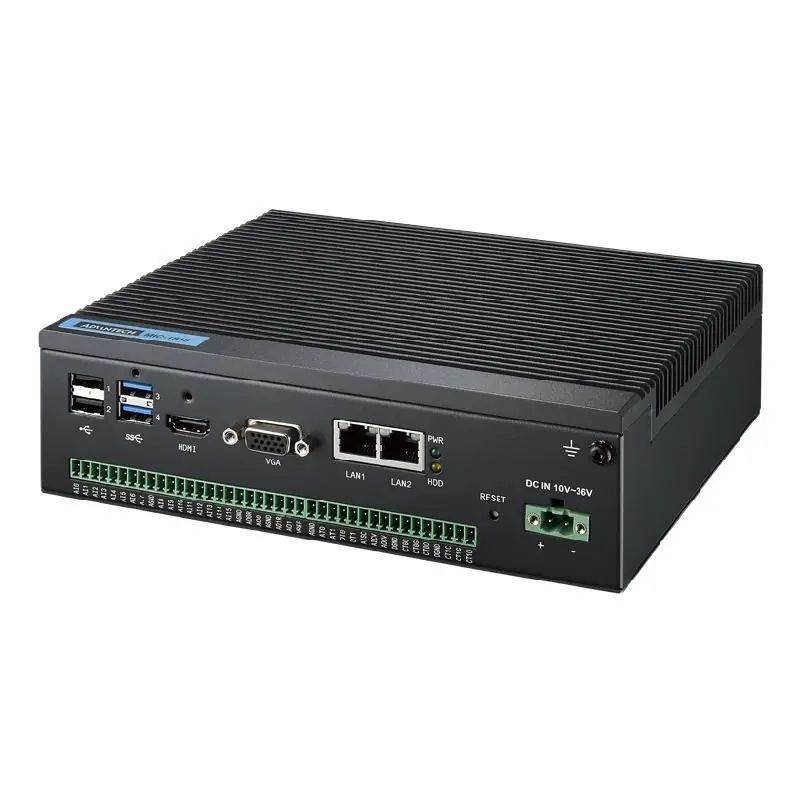

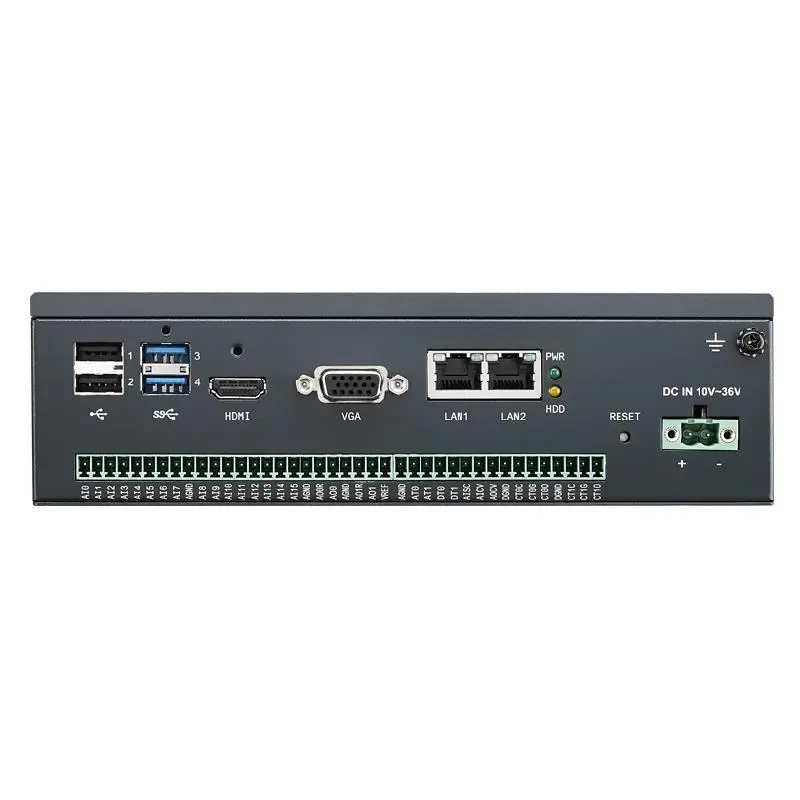

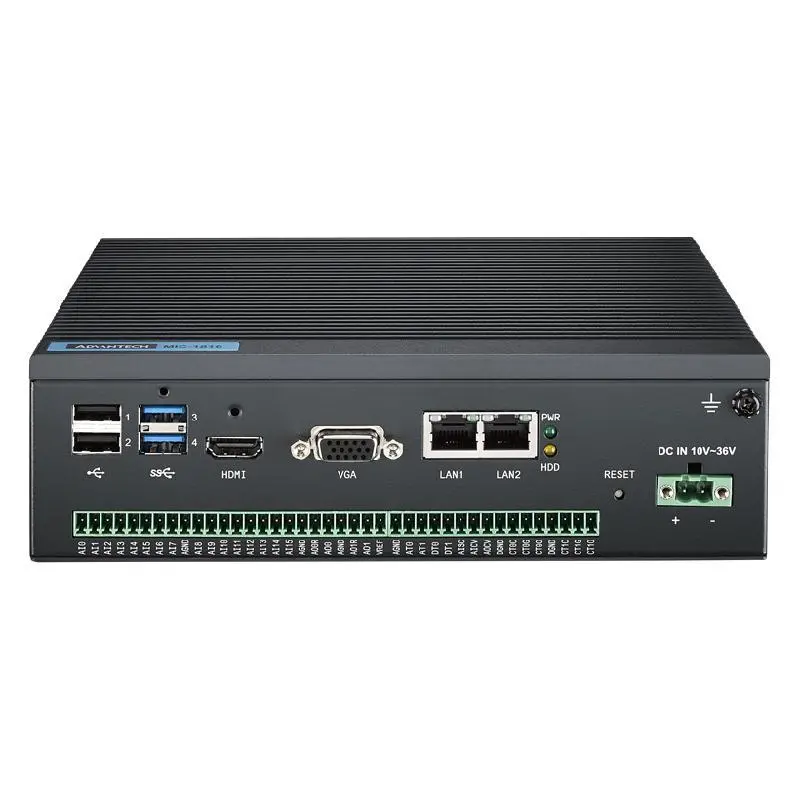

Advantech MIC-1816 16-bit, 1MS/s, 16-ch DAQ platform with Core™ i3/ Celeron® processer

16x analog inputs, up to 1 MS/s, 16-bit resolution

2x analog outputs, up to 3 MS/s, 16-bit resolution

Support for digital trigger and analog trigger

16x isolated digital input and 8 x isolated digital output

2x 32-bit programmable counter/timers

Onboard FIFO memory (4,096 samples)

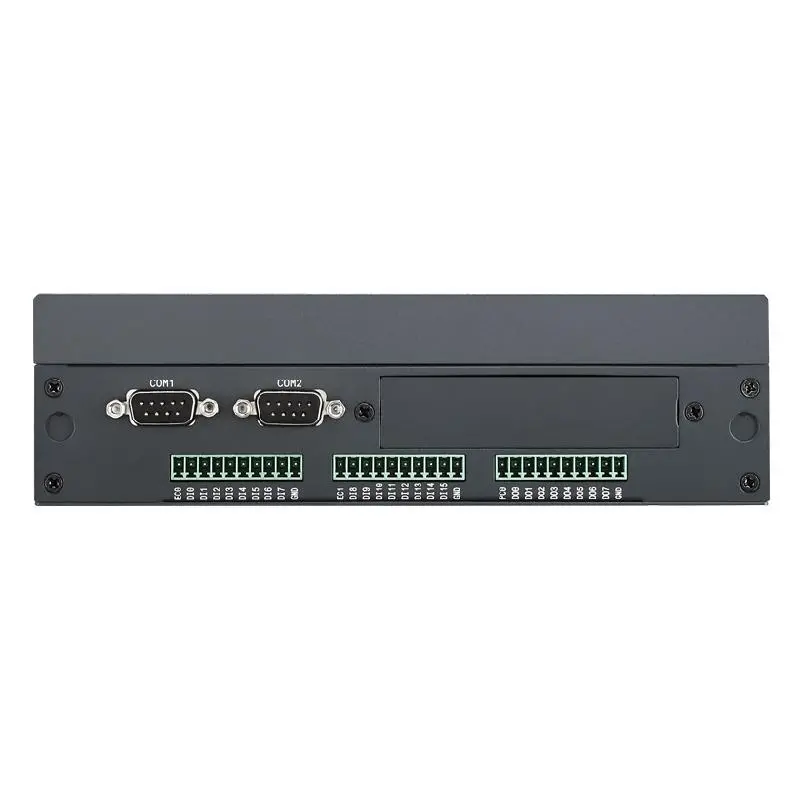

2 x RS-232/422/485 ports

2 x 10/100/1000 Base-T RJ-45 LAN ports

2 x USB 2.0 and 2 x USB 3.0 ports

iDoor expansion supported

		MIC-1816-U0A1E
Analog Input	Channels	16
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	1 MS/s (sum)
Analog Output	Channels	2
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V
Analog Output	Resolution	16-bit
Analog Output	Update Rate(S/s)	3 MS/s
Counter/Encoder Input	Channels	2
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Max. Input Frequency	10 MHz
Digital Input	Channels	16 (Isolated)
Digital Output	Channels	8 (Isolated)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Hardware	Certification	CB, UL, CE, FCC Class A, CCC, BSMI
Power Requirements	Input Voltage	10~30 VDC
