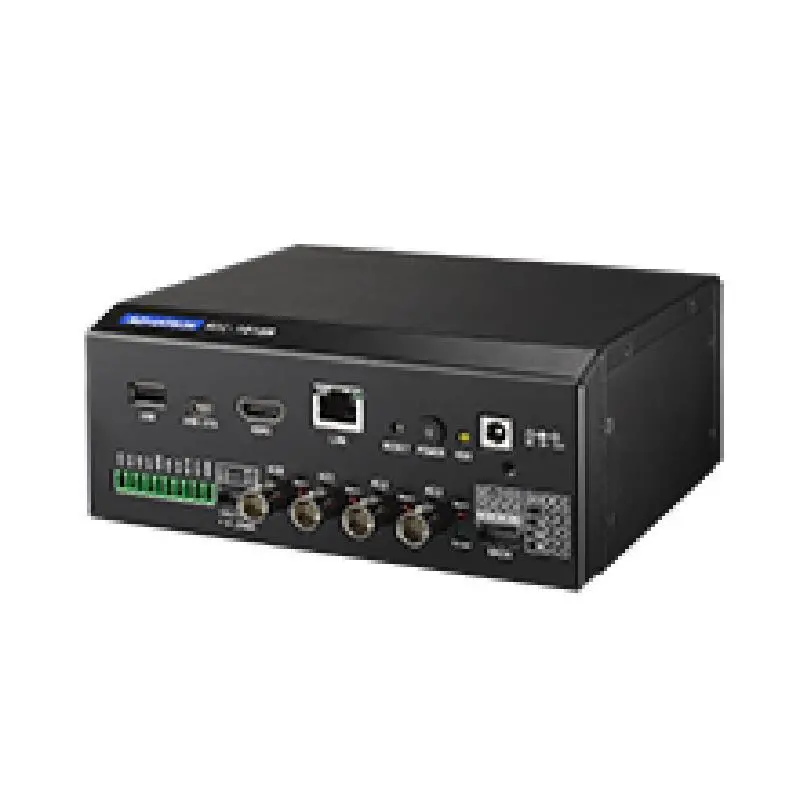

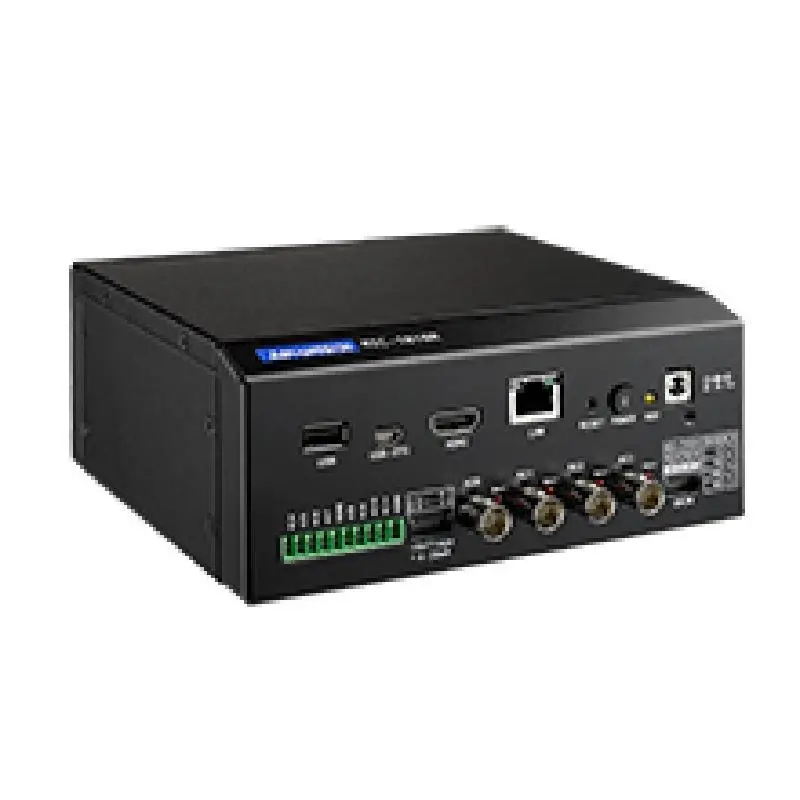

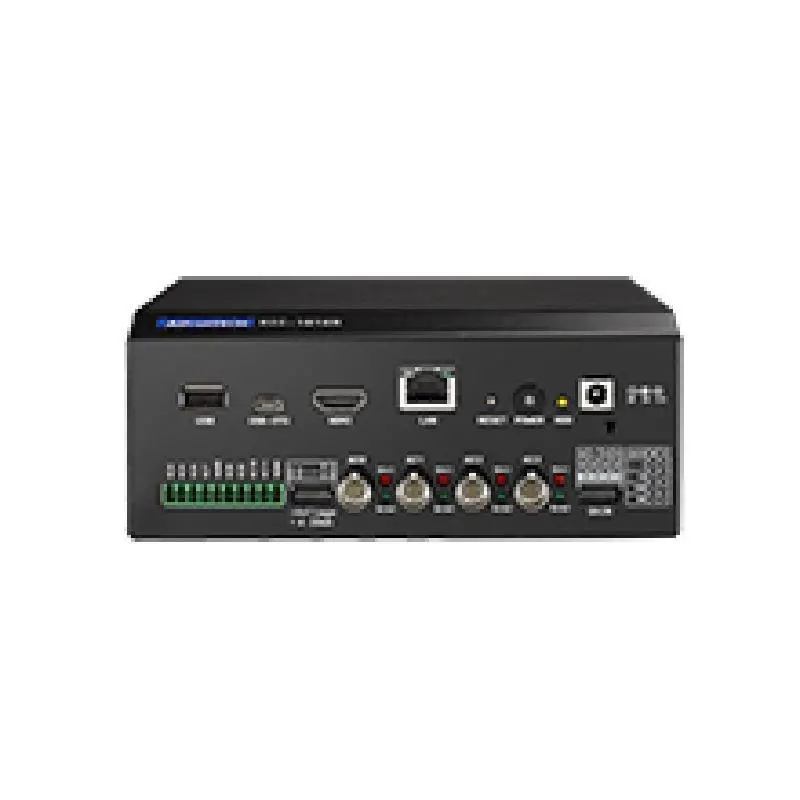

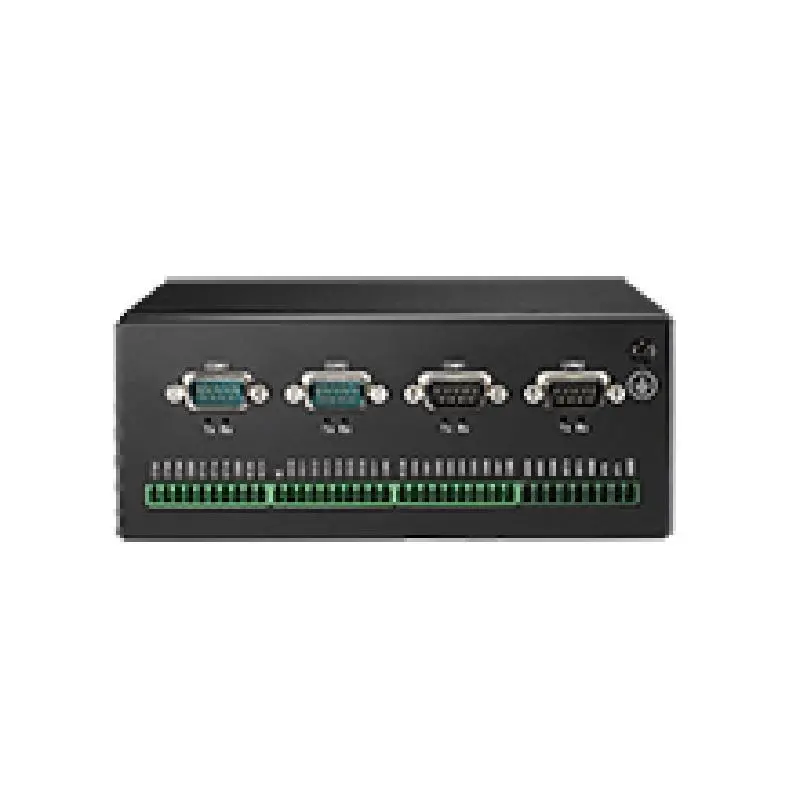

Advantech MIC-1816R 16-bit, 1MS/s, Sound and Vibration DAQ Platform with ARM Cortex™-A9 i.MX6 1GHz

i.MX6 Quad - 4x Cortex-A9 processor

Sampling rate up to 1MS/s

4 x IEPE input with preamp gain = 1,10,100

8 x Analog input with voltage or 4~20mA

2 x Analog outputs, up to 3 MS/s, 16-bit resolution

Supports digital and analog triggers

16 x isolated digital input and 8 x isolated digital output

2 x 32-bit programmable counter/timers

Onboard FIFO memory (4,000 samples)

Onboard 2G DDR3 memory design

Build-in 4G EMMC NAND Flash for OS (Yotco only)

2-port RS-232 with surge protection

1 x 10/100/1000 Base-T RJ-45 LAN ports

1 x USB 2.0 and 1 x USB 2.0 OTG

2 x CAN ports transmission speeds up to 1Mbps
