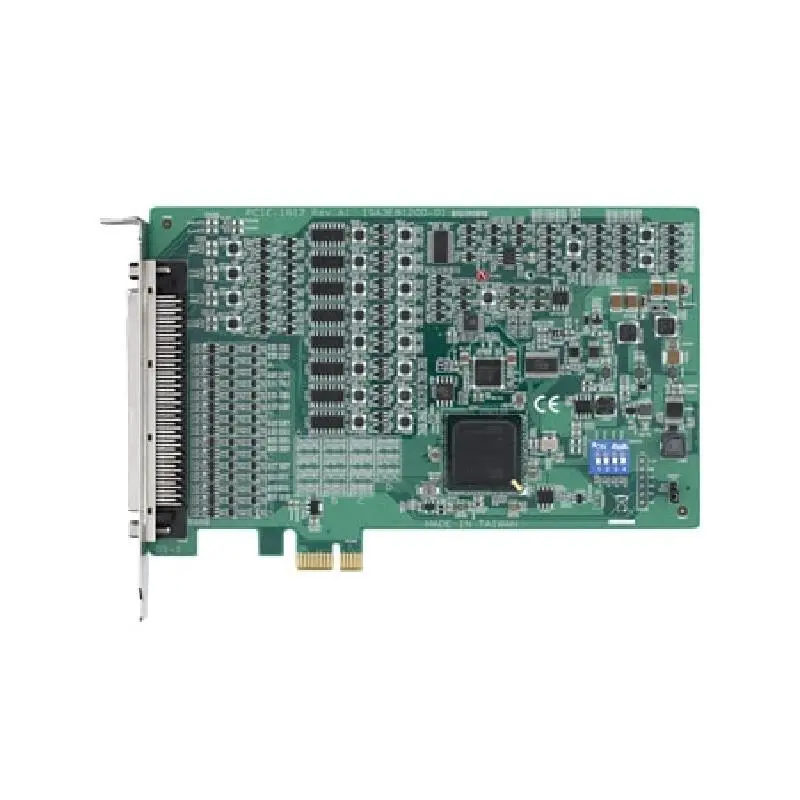

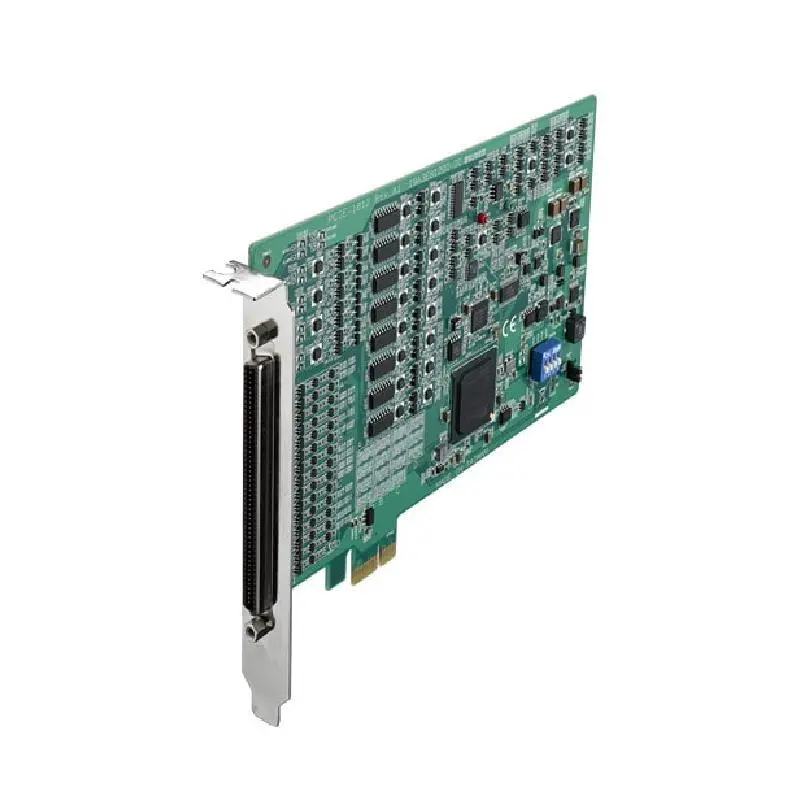

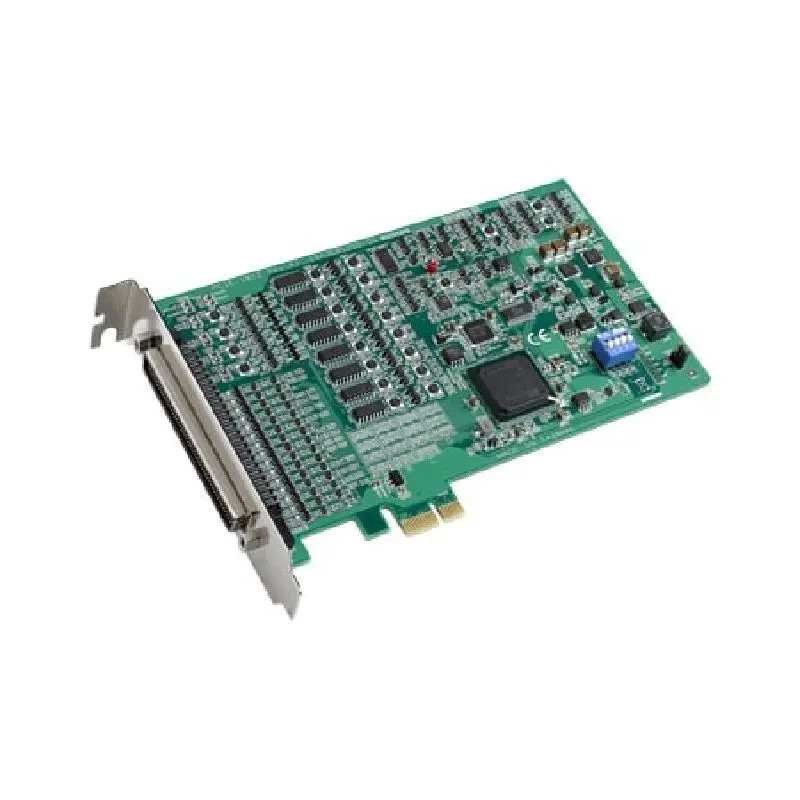

Advantech PCIE-1812 250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card

8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution

2 analog outputs, up to 3 MS/s, 16-bit resolution

Full auto-calibration

2 analog triggers and 2 digital triggers for AI/O

32 programmable DI/Os with interrupt functions

Four 32-bit programmable counters/ timers/ encoders

Board ID switch

Support for Microsoft Windows 10, 8 and 7

		PCIE-1812-AE
Analog Input	Channels	8
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	250 KS/s (per channel)
Analog Output	Channels	2
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V
Analog Output	Resolution	16-bit
Analog Output	Update Rate(S/s)	3 MS/s
Counter/Encoder Input	Channels	4
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Mode	Counter (up/down, bi-direction, up, A/B Phase)
Digital Input	Channels	32 (TTL)
Digital Output	Channels	32 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
