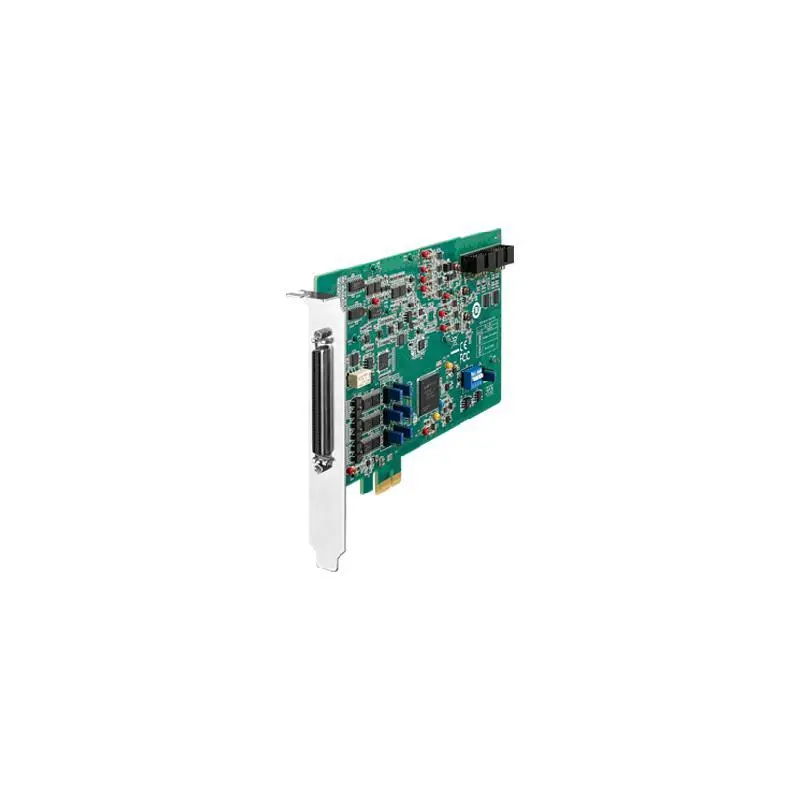

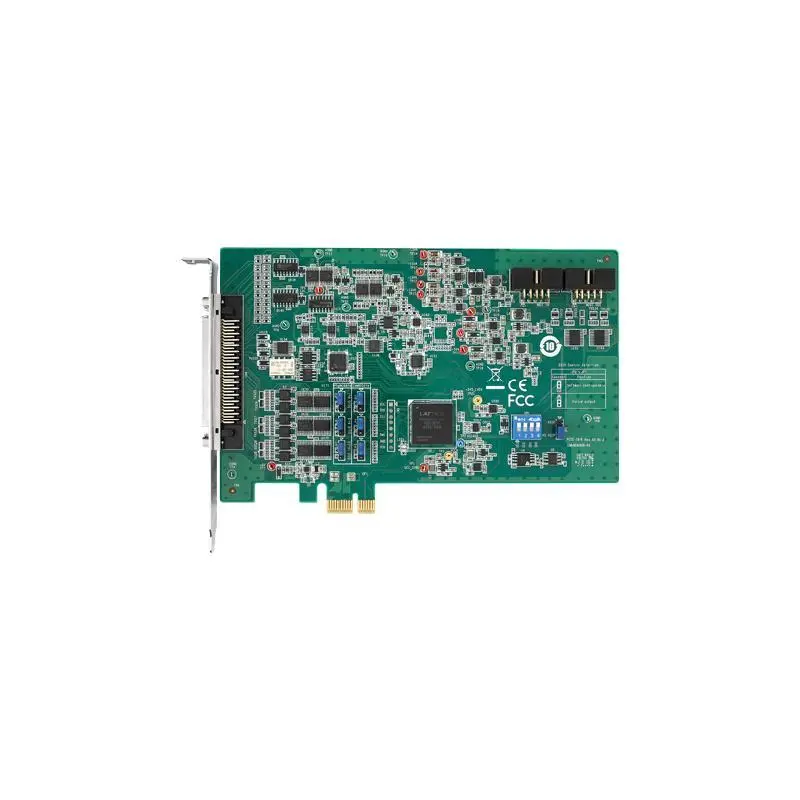

Advantech PCIE-1816H 5 MS/s, 16-bit, 16-ch Multifunction PCIE Card

16 analog inputs, up to 5 MS/s, 16-bit resolution

2 analog outputs up to 3 MS/s, 16-bit resolution

Support Analog and Digital Trigger for AI/O

Support Waveform generation for AO

24 programmable digital I/O lines

Two 32-bit programmable counter/timers

Onboard FIFO memory (8k samples)

Support for Microsoft Windows 7/10 and Linux

		PCIE-1816H-B
Analog Input	Channels	16
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	5 M (sum)
Analog Output	Channels	2
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V
Analog Output	Resolution	16-bit
Analog Output	Update Rate(S/s)	3 MS/s
Counter/Encoder Input	Channels	2
Counter/Encoder Input	Counting Range	32-bit
Digital Input	Channels	24 (TTL)
Digital Output	Channels	24 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
