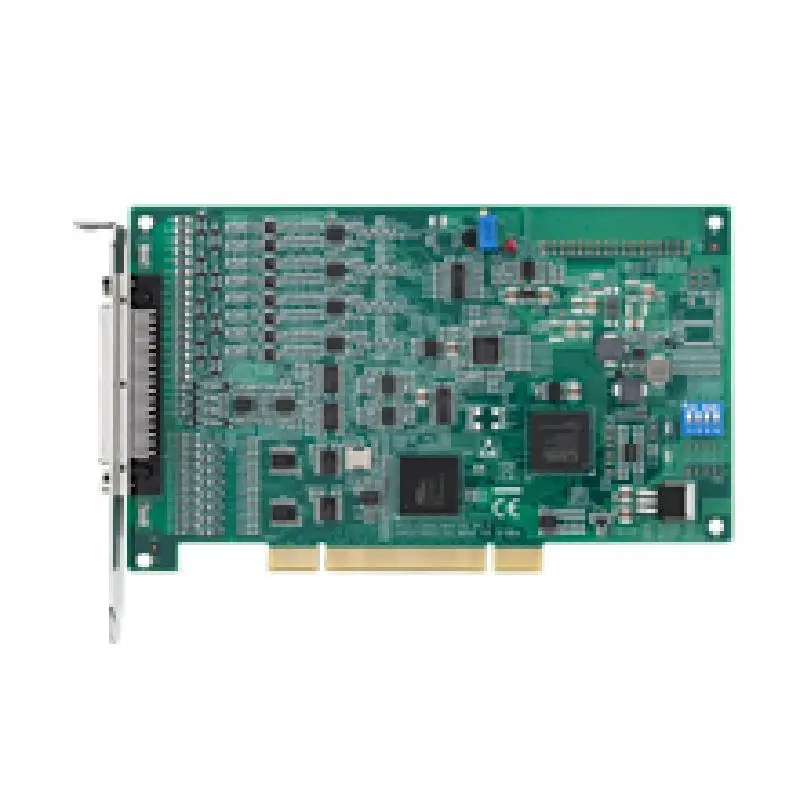

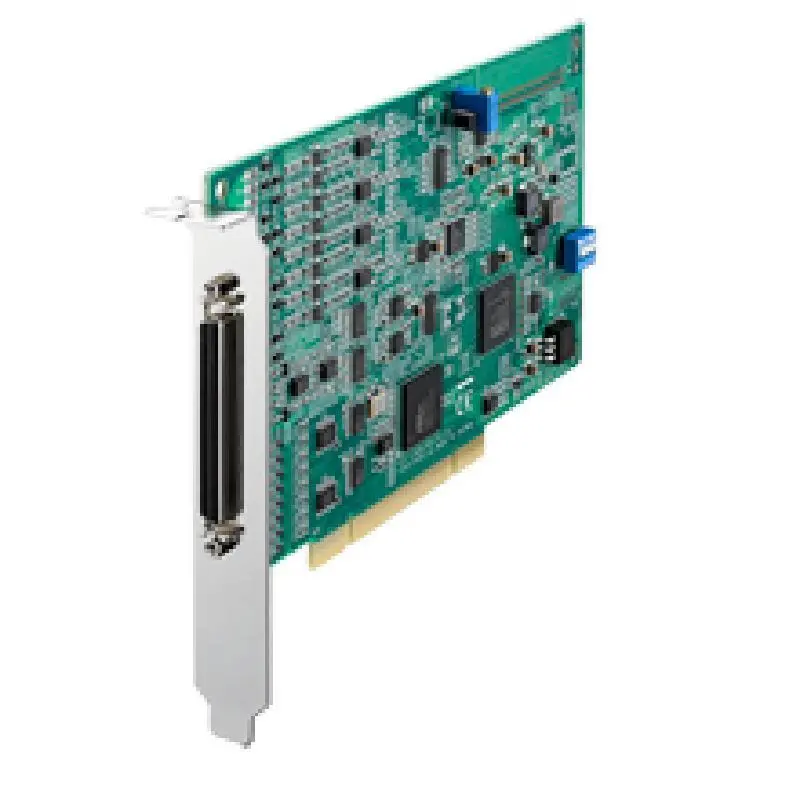

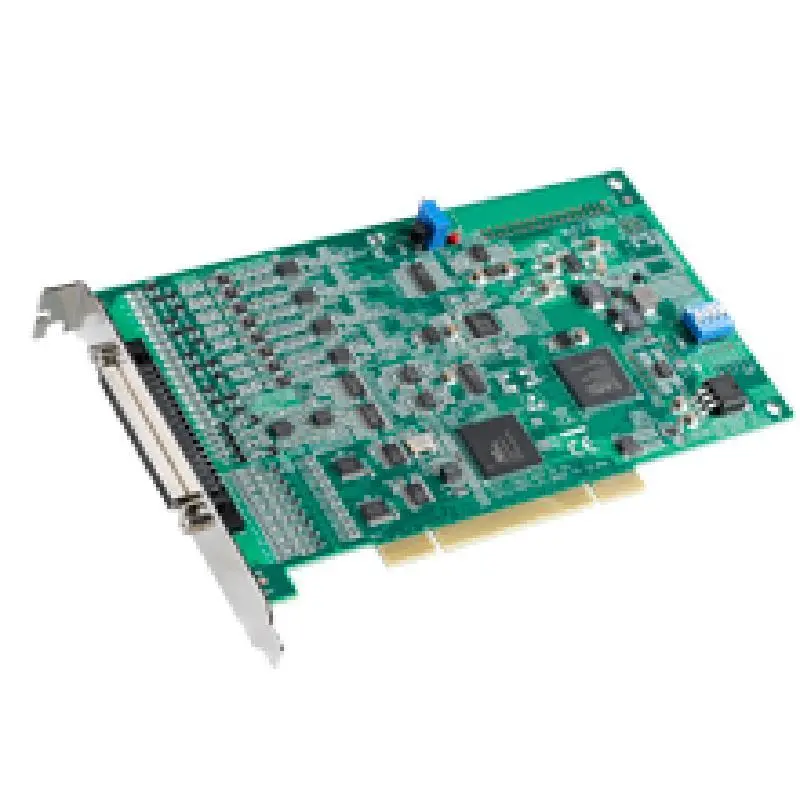

Advantech PCI-1706U 250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card

8 differential analog inputs

8 A/D converters simultaneously sampling

16-bit A/D converter, with up to 250kHz sampling rate for each channel

Programmable gain

Multiple A/D triggering modes

Onboard FIFO memory up to 8K Sample

Programmable pacer/counter

BoardID™ switch

Universal PCI Bus (supports 3.3V or 5V PCI bus signals)

		PCI-1706U-AE
Analog Input	Channels	8
Analog Input	Input Range	±1.25 V, ±2.5 V, ±5 V, ±10 V
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	250 KS/s (per channel)
Analog Output	Channels	2
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Analog Output	Resolution	12-bit
Analog Output	Update Rate(S/s)	Static update
Counter/Encoder Input	Channels	2
Counter/Encoder Input	Counting Range	32-bit
Digital Input	Channels	16 (TTL)
Digital Output	Channels	16 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
