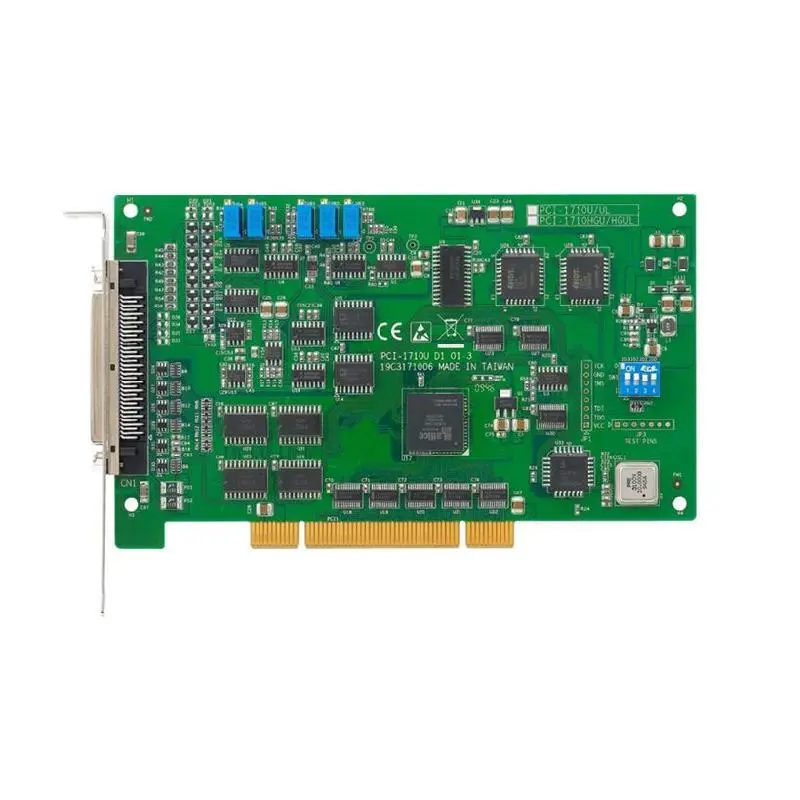

Advantech PCI-1710 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

16-ch single-ended or 8-ch differential or a combination of analog input

12-bit A/D converter, with up to 100 kHz sampling rate

Onboard programmable counter

Two 12-bit analog output channels

16-ch digital input and 16-ch digital output

Automatic channel/gain scanning

Onboard FIFO memory (4,096 samples)

Programmable gain

BoardID™ switch

		PCI-1710U-DE	PCI-1710UL-DE	PCI-1710HGU-DE
Analog Input	Channels	16	16	16
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V	±0.0.005 V ±0.01 V, ±0.05 V, ±0.1 V, ±0.5 V, ±1 V, ±5 V, ±10 V, 0~0.01 V, 0~0.1 V, 0~1 V, 0~10 V
Analog Input	Resolution(Bits)	12-bit	12-bit	12-bit
Analog Input	Sampling Rates(S/s)	100 KS/s (sum)	100 KS/s (sum)	100 KS/s (sum)
Analog Output	Channels	2	2	2
Analog Output	Output Ranges	0~5 V, 0~10 V	0~5 V, 0~10 V	0~5 V, 0~10 V
Analog Output	Resolution	12-bit	12-bit	12-bit
Analog Output	Update Rate(S/s)	Static update	Static update	Static update
Counter/Encoder Input	Channels	2	2	2
Counter/Encoder Input	Counting Range	16-bit	16-bit	16-bit
Digital Input	Channels	16 (TTL)	16 (TTL)	16 (TTL)
Digital Output	Channels	16 (TTL)	16 (TTL)	16 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
