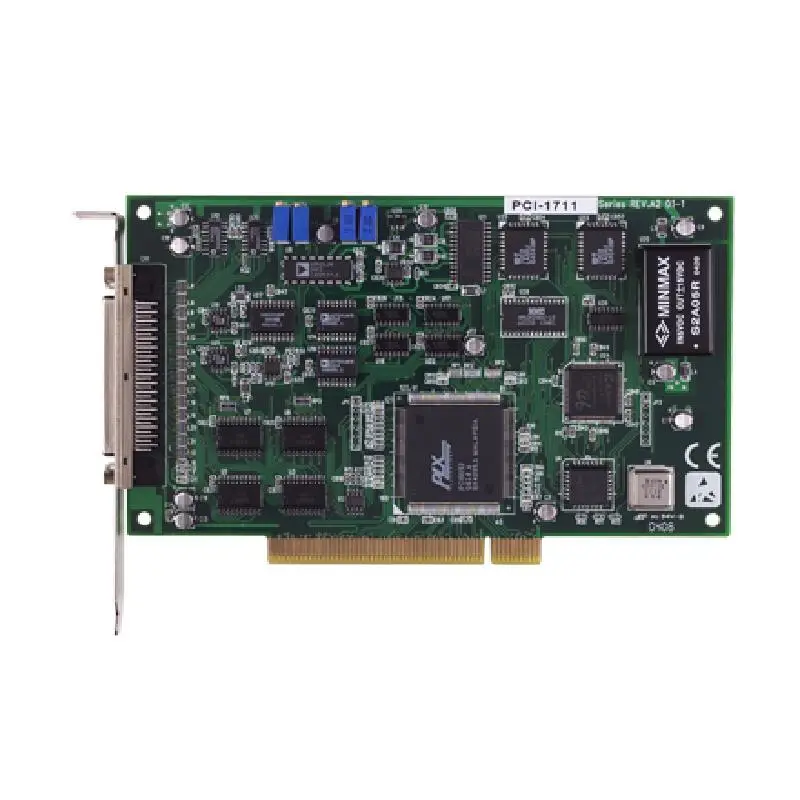

Advantech PCI-1711 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

16-ch single-ended analog input

Cost-effective

12-bit A/D converter, with up to 100 kHz sampling rate

16 single-ended analog inputs

Programmable gain

16 digital inputs and 16 digital outputs

16-ch digital input and 16-ch digital output

Two 12-bit analog output channels

Onboard FIFO memory (1,024 samples)

Onboard FIFO memory (1024 samples)

Automatic channel/gain scanning

Onboard programmable counter

		PCI-1711U-CE	PCI-1711UL-CE
Analog Input	Channels	16	16
Analog Input	Input Range	±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V	±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V
Analog Input	Resolution(Bits)	12-bit	12-bit
Analog Input	Sampling Rates(S/s)	100 KS/s (sum)	100 KS/s (sum)
Analog Output	Channels	2	2
Analog Output	Output Ranges	0~5 V, 0~10 V	16-bit
Analog Output	Resolution	12-bit	16 (TTL)
Analog Output	Update Rate(S/s)	Static update	16 (TTL)
Counter/Encoder Input	Channels	2	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Counter/Encoder Input	Counting Range	16-bit
Digital Input	Channels	16 (TTL)
Digital Output	Channels	16 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
