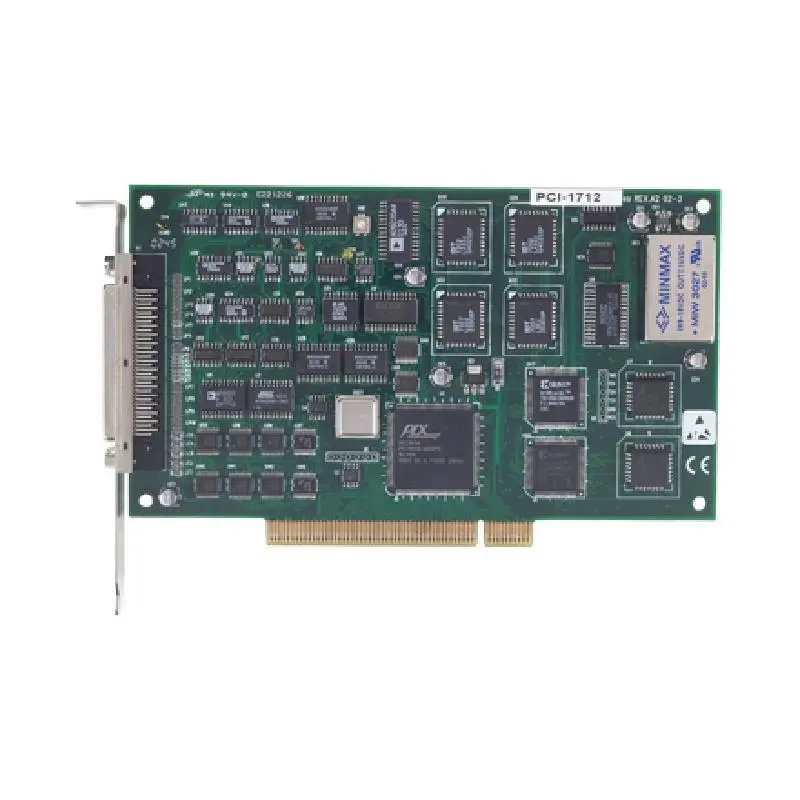

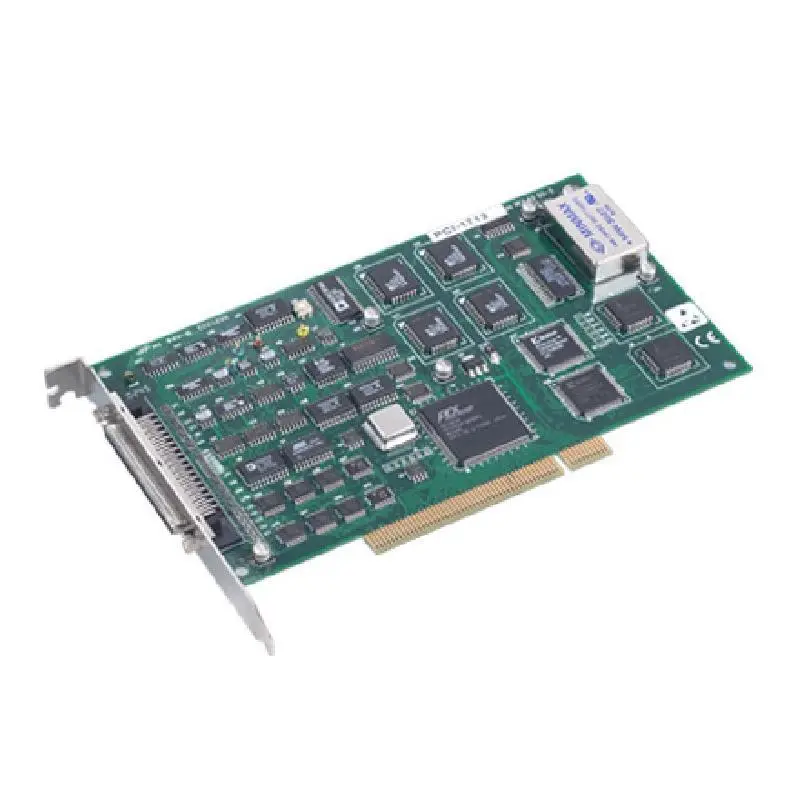

Advantech PCI-1712 1 MS/s, 12-bit, 16-ch Multifunction PCI Card

16 single-ended or 8 differential or a combination of analog inputs

12-bit A/D converter, with up to 1 MHz sampling rate

Two 12-bit analog output channels with continuous waveform output function

16-ch digital input and 16-ch digital output

Three 16-bit programmable multifunction counter/timers on 10 MHz

Programmable gain

Automatic channel/gain scanning

Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)

Auto-calibration (AI/AO)

PCI-Bus for data transfer

Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels

Flexible triggering and clocking capabilities
