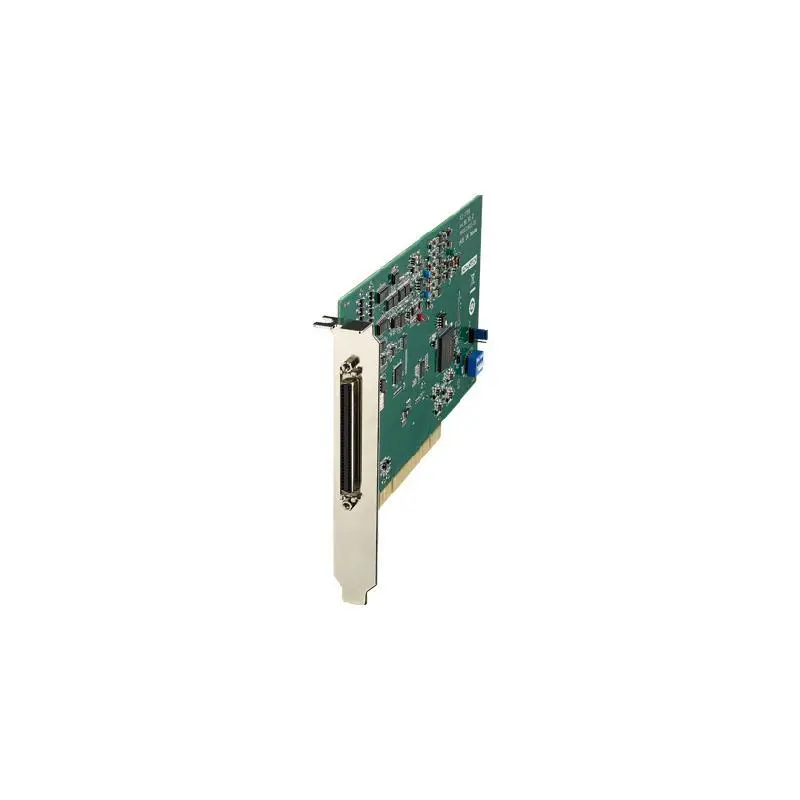

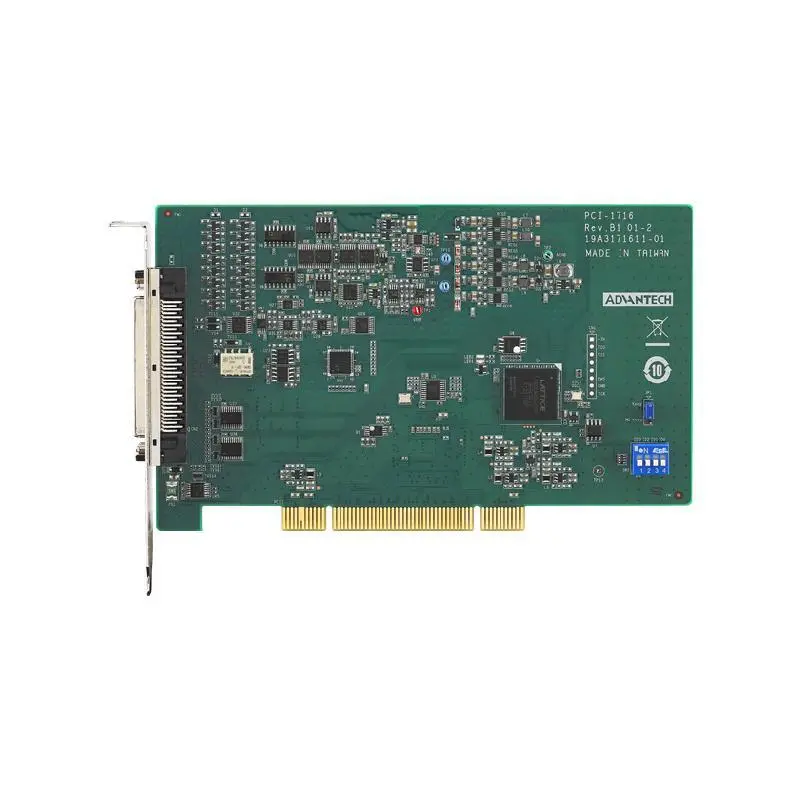

Advantech PCI-1716 500kS/s, 16-bit, 16-ch Multifunction PCI Card

16 single-ended or 8 differential or a combination of analog inputs

16-bit A/D converter, with up to 500 kHz sampling rate

FIFO memory (8,192 samples)

2 analog output channels

16-ch digital input and 16-ch digital output

Auto-calibration

BoardID™ switch

		PCI-1716-BE	PCI-1716L-BE	PCI-1716H-AE
Analog Input	Channels	16	16	16
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input	Resolution(Bits)	16-bit	16-bit	16-bit
Analog Input	Sampling Rates(S/s)	500 KS/s (sum)	500 KS/s (sum)	1 MS/s (sum)
Analog Output	Channels	2	1	2
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V	16-bit	0~5 V, 0~10 V, ±5 V, ±10 V
Analog Output	Resolution	16-bit	16 (TTL)	16-bit
Analog Output	Update Rate(S/s)	1 MS/s	16 (TTL)	1 MS/s
Counter/Encoder Input	Channels	1	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	1
Counter/Encoder Input	Counting Range	16-bit	16-bit
Digital Input	Channels	16 (TTL)	16 (TTL)
Digital Output	Channels	16 (TTL)	16 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
