PCI-1713U-BE | ||
Analog Input | Channels | 32 |
Analog Input | Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V |
Analog Input | Isolation Protection | 2,500 VDC |
Analog Input | Resolution(Bits) | 12-bit |
Analog Input | Sampling Rates(S/s) | 100 KS/s (sum) |
General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |

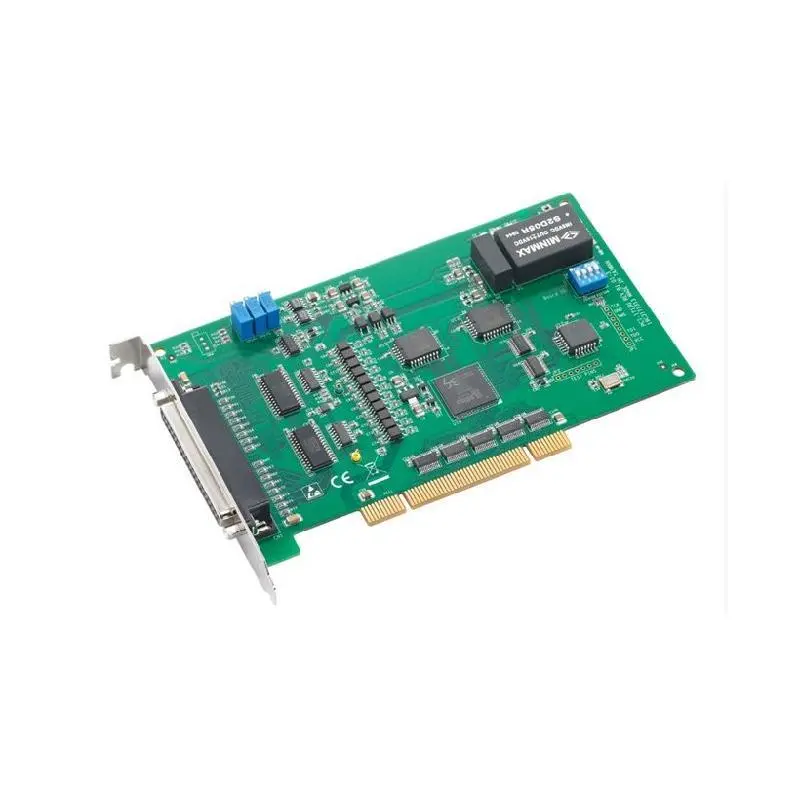

Advantech PCI-1713U 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
2,500 VDC isolation protection
32-ch single-ended or 16-ch differential or a combination of analog input
12-bit resolution for A/D conversion
Programmable gain for each input channel
Software, internal or external pacer sampling modes supported
Onboard FIFO memory: 4,096 samples;
Universal PCI bus
BoardID™ switch
