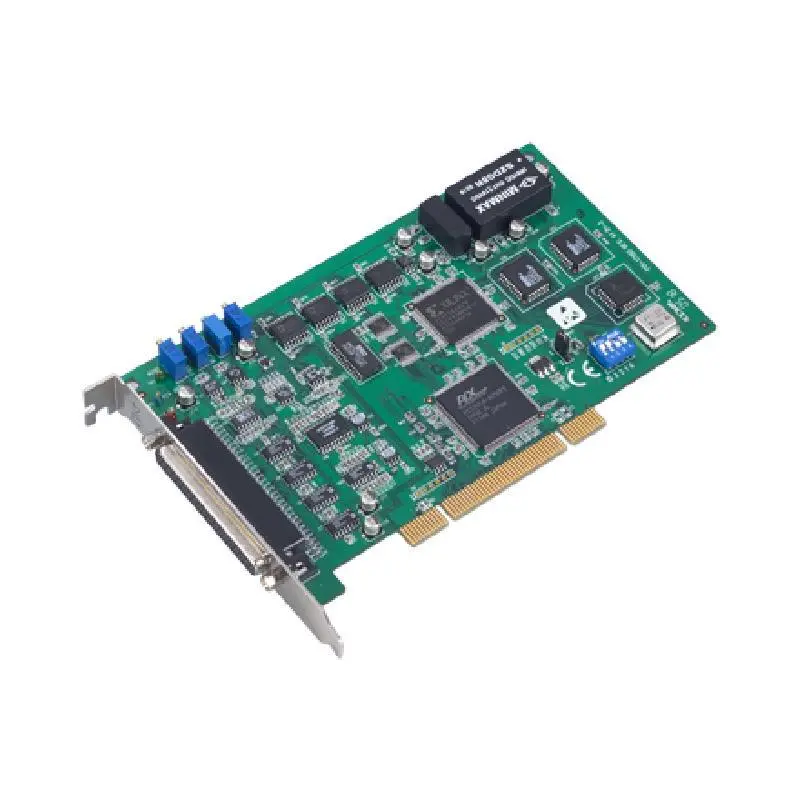

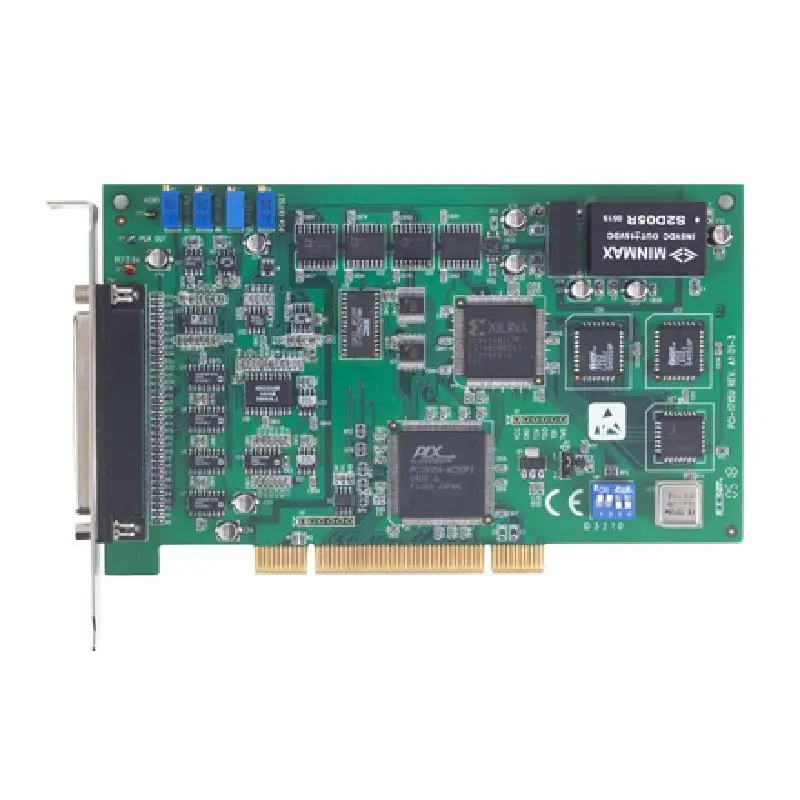

Advantech PCI-1715U 500 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

2,500 VDC isolation protection

32-ch single-ended or 16-ch differential or a combination of analog input

12-bit resolution for A/D conversion

Programmable gain for each input channel

Software, internal or external pacer sampling modes supported

Onboard FIFO memory: 1,024 samples

Universal PCI bus

BoardID™ switch

		PCI-1715U-BE
Analog Input	Channels	32
Analog Input	Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input	Isolation Protection	2,500 VDC
Analog Input	Resolution(Bits)	12-bit
Analog Input	Sampling Rates(S/s)	500 KS/s (sum)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
