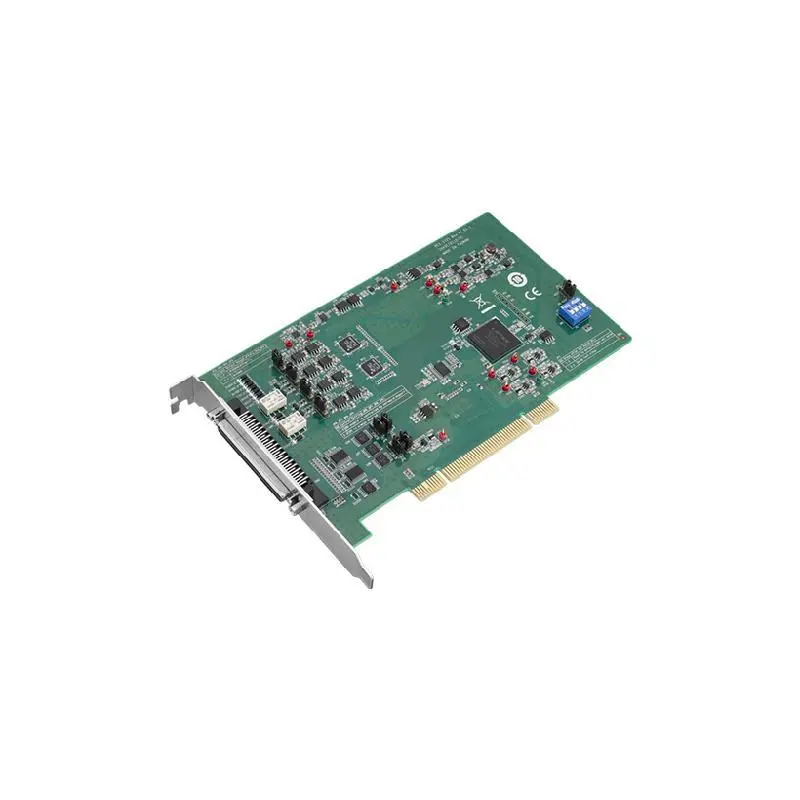

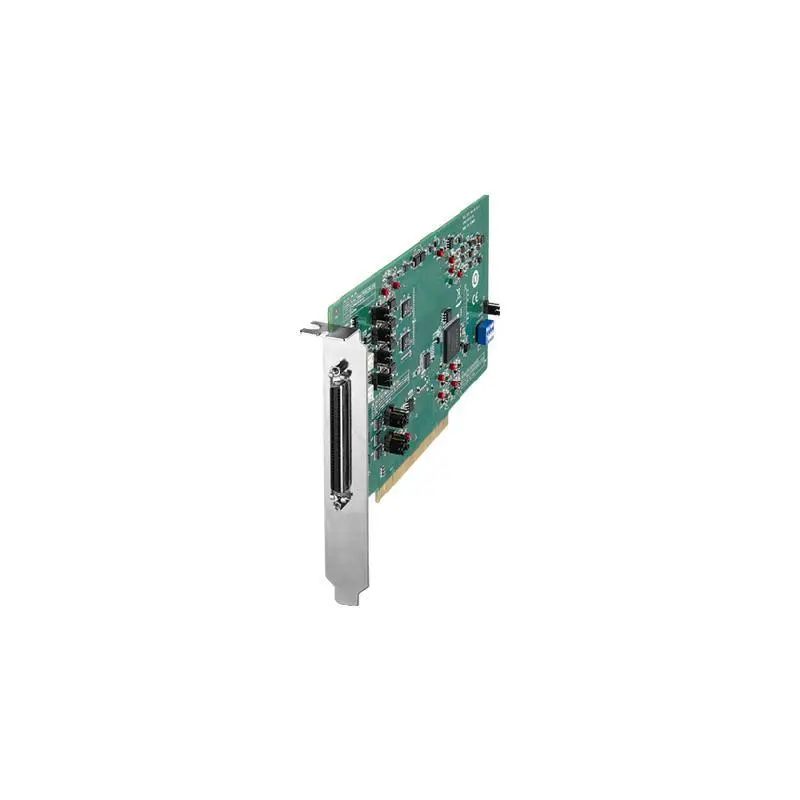

Advantech PCI-1721 12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O

10 MHz maximum digital update rate

Synchronized output function

16-ch DI/O and one 10 MHz 16-bit resolution counter

Four analog output channels with 1,024 samples FIFO buffer

A 12-bit DAC is equipped for each of analog output channels

Real-time waveform output function with internal/external pacer

Flexible output types and range settings

Keeps the output settings and values after system hot reset

Auto calibration function

BoardID™ switch

		PCI-1721-BE
Analog Output	Channels	4
Analog Output	Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Analog Output	Resolution	12-bit
Analog Output	Update Rate(S/s)	10 MS/s
Counter/Encoder Input	Channels	1
Counter/Encoder Input	Counting Range	16-bit
Digital Input	Channels	16 (TTL)
Digital Output	Channels	16 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
