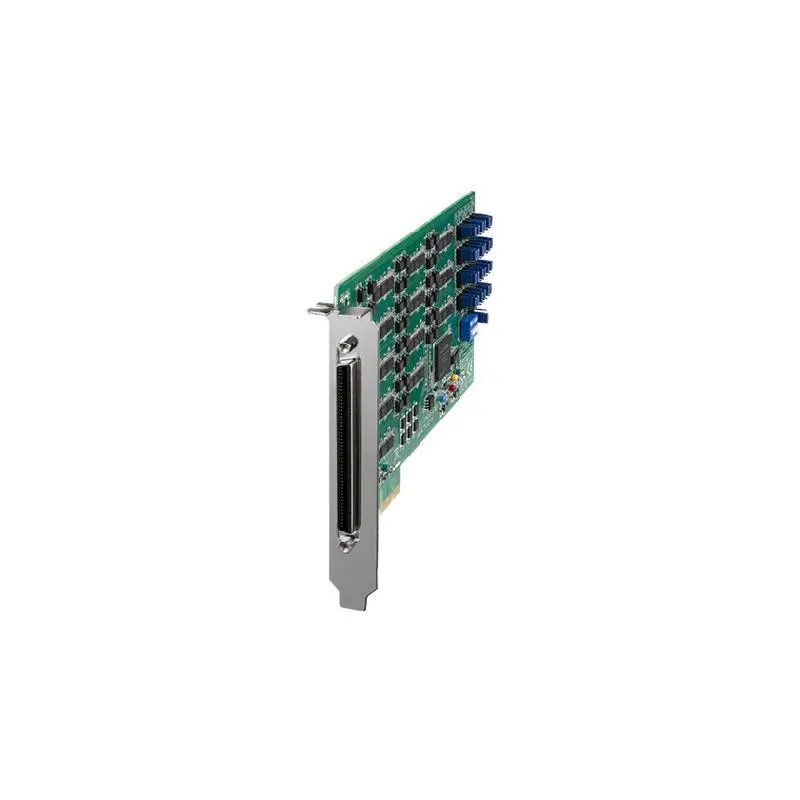

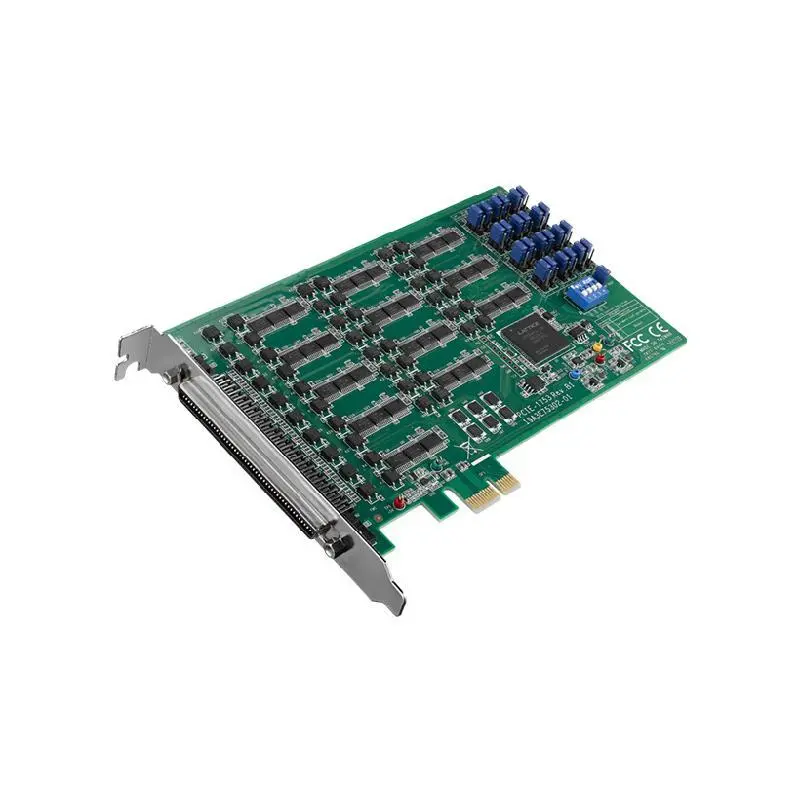

Advantech PCIE-1753 96-ch Digital I/O PCIE Card

Fully compatible with PCI-1753

Up to 96 TTL digital I/O lines

Emulates mode 0 of 8255 PPI

Supports both dry and wet contact

Interrupt handling capability

Output status read-back

Supports input data pattern match and change of state functions

Keep I/O settings and output status after hot reset

Buffered circuits for higher driving capacity than the 8255

High-density 100-pin SCSI connector

		PCIE-1753-B
Digital Input	Channels	96 (TTL)
Digital Output	Channels	96 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
