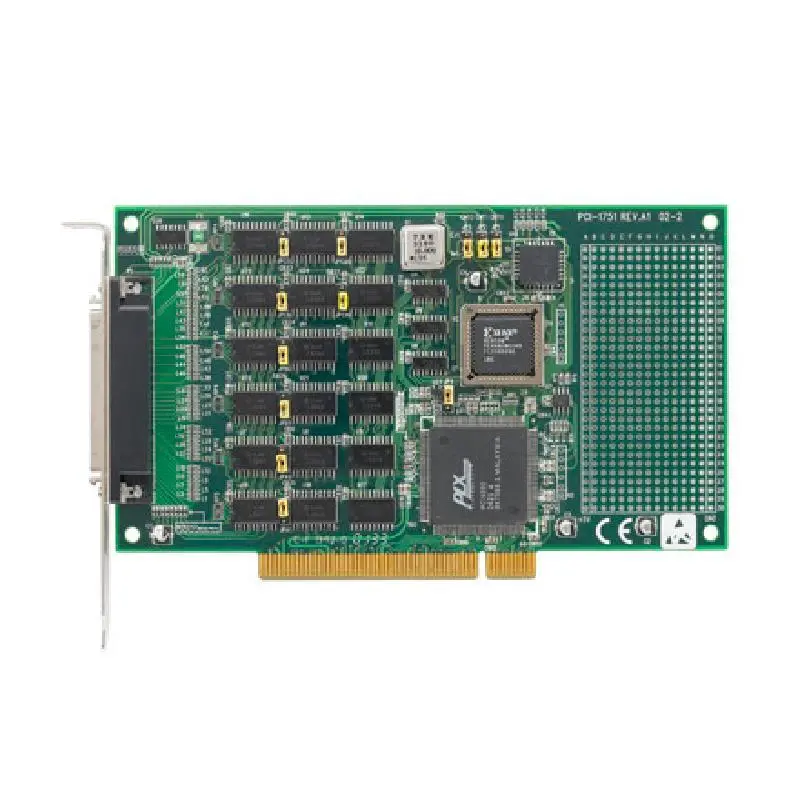

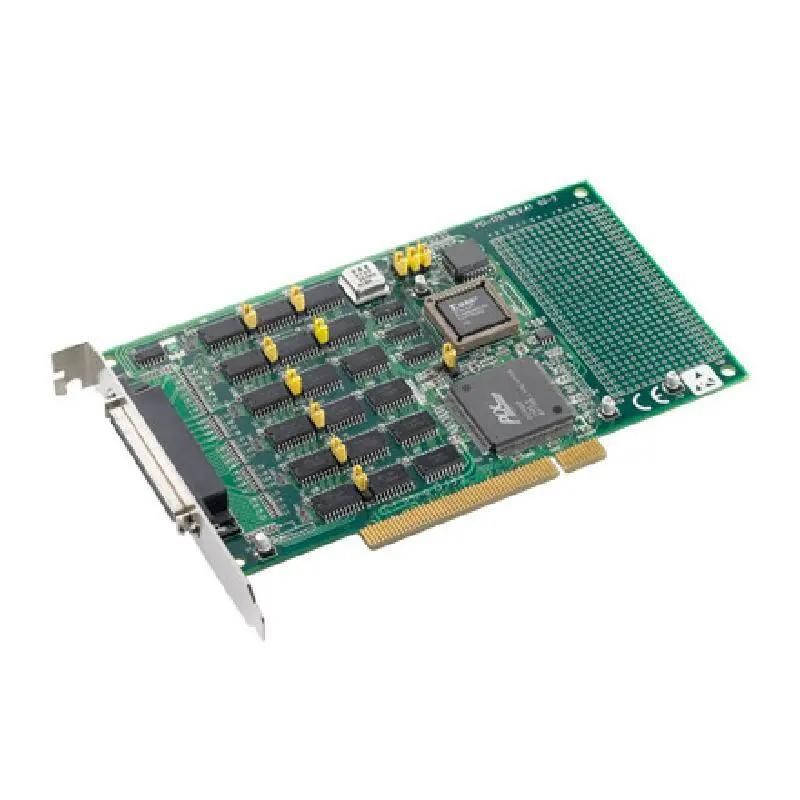

Advantech PCI-1751 48-ch Digital I/O and 3-ch Counter PCI Card

48 TTL digital I/O lines

Emulates mode 0 of 8255 PPI

Supports both dry and wet contact

Interrupt handling capability

Timer/Counter interrupt capability

Buffered circuits for higher driving capacity than the 8255

Keeps the I/O port setting and DO state after system reset

BoardID switch

		PCI-1751-BE
Counter/Encoder Input	Channels	3
Counter/Encoder Input	Counting Range	16-bit
Digital Input	Channels	48 (TTL)
Digital Output	Channels	48 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
