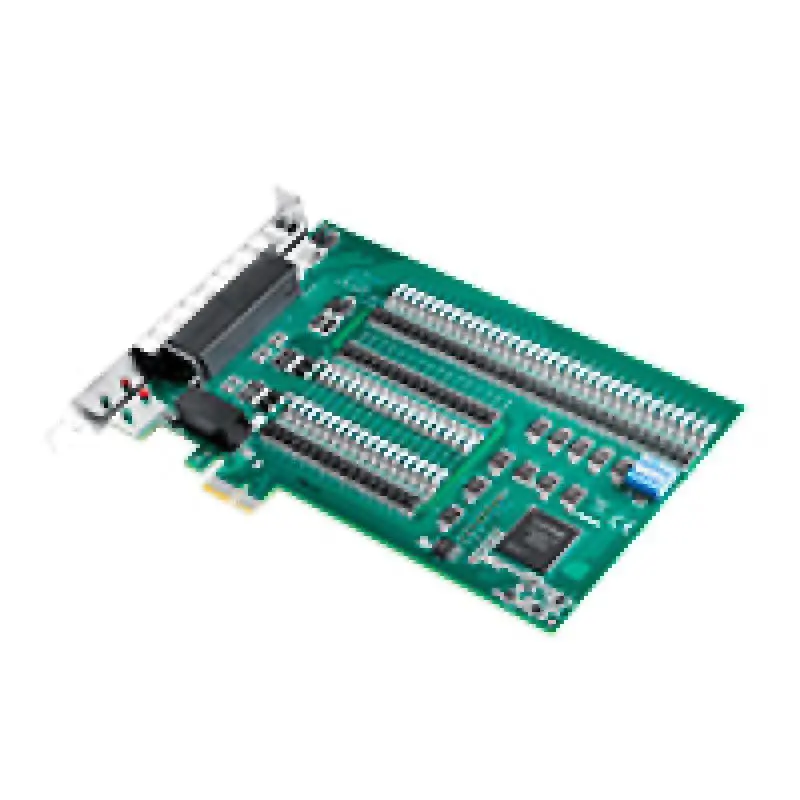

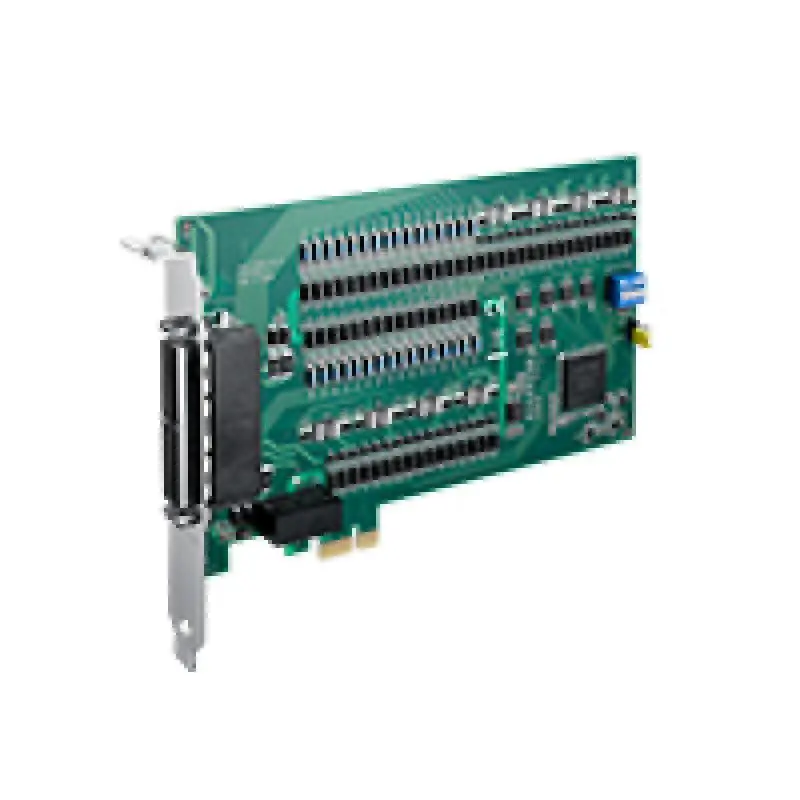

Advantech PCIE-1758 128-ch Isolated Digital I/O PCIE Card

Interrupt handling capability for each channel

128 isolated digital output channels (64 channels for PCI-1758UDIO)

High-voltage isolation on output channels (2,500 VDC)

Wide output range (5 ~ 40 VDC)

High-sink current for isolated output channels (90 mA max./channel)

BoardID™ switch

Digital output value retained after hot system reset

PCIE-1758DI and PCIE-1758DIO

128 isolated digital input channels (64 channels for PCI-1758UDIO)

Wide input range (10 ~ 30 VDC)

High ESD protection (2,000 VDC)

Digital Filter function

PCIE-1758DO and PCIE-1758DIO
