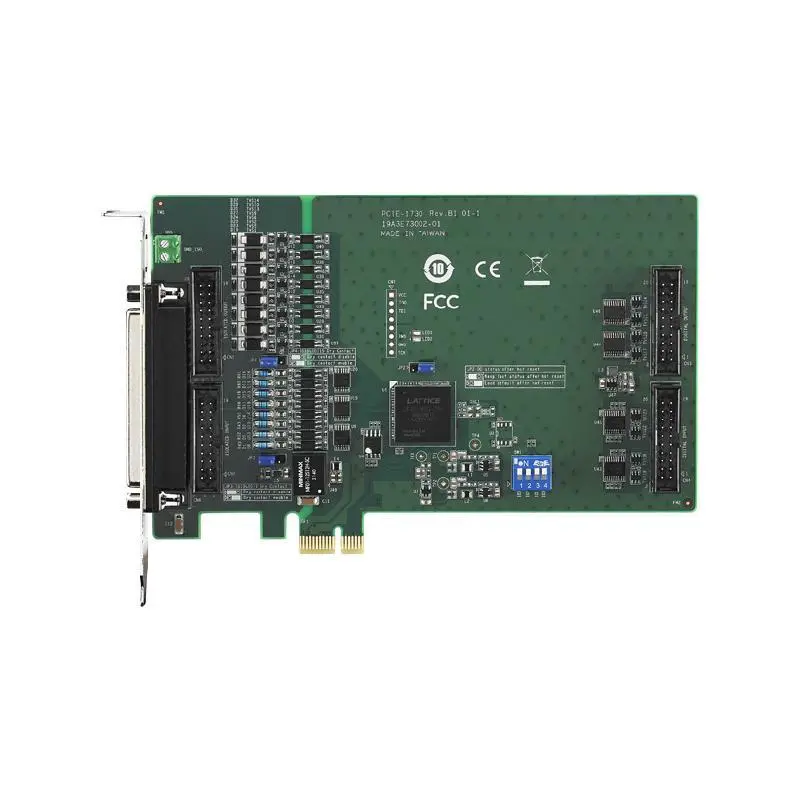

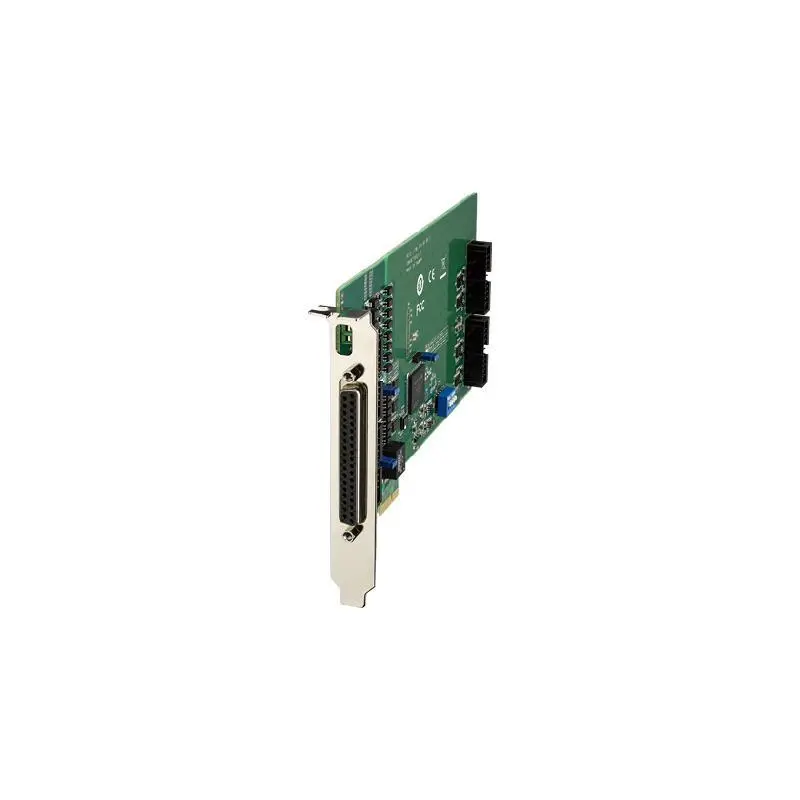

Advantech PCIE-1730 32-ch TTL and 32-ch Isolated Digital I/O PCIE Card

32-ch isolated DI/O (16-ch digital input, 16-ch digital output)

32-ch TTL DI/O (16-ch digital input,16-ch digital output)

High output driving capacity

Interrupt handling capability

2 x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels

D-type connector for isolated input and output channels

High-voltage isolation on output channels (2,500 VDC)

		PCIE-1730-BE	PCIE-1730H-BE
Digital Input	Channels	16 (Isolated), 16 (TTL)	16 (Isolated), 16 (TTL)
Digital Input	Isolation Protection	2,500 VDC	2,500 VDC
Digital Output	Channels	16 (Isolated), 16 (TTL)	16 (Isolated), 16 (TTL)
Digital Output	Isolation Protection	2,500 VDC	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
