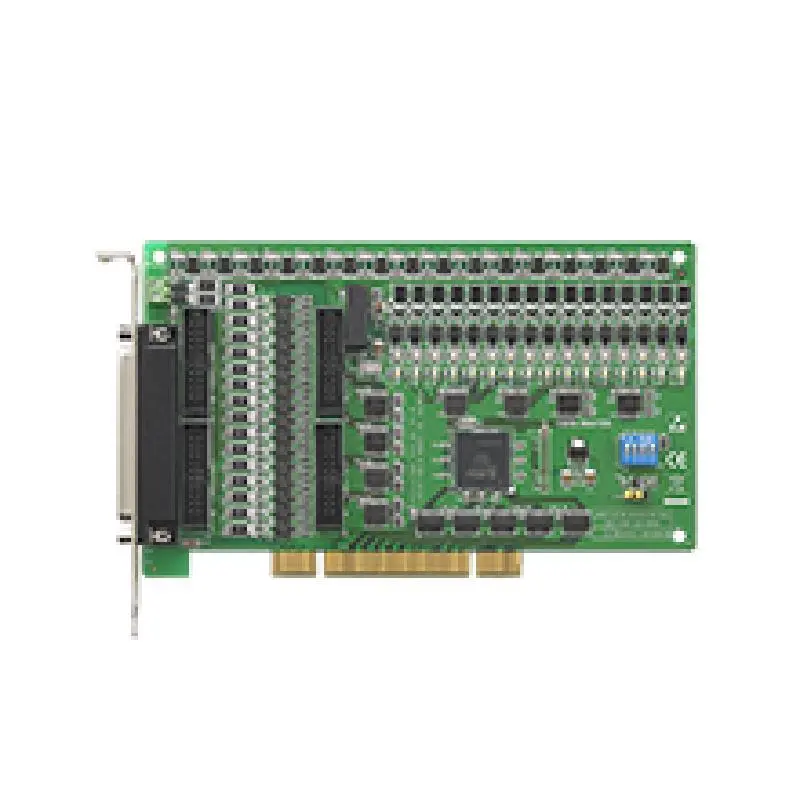

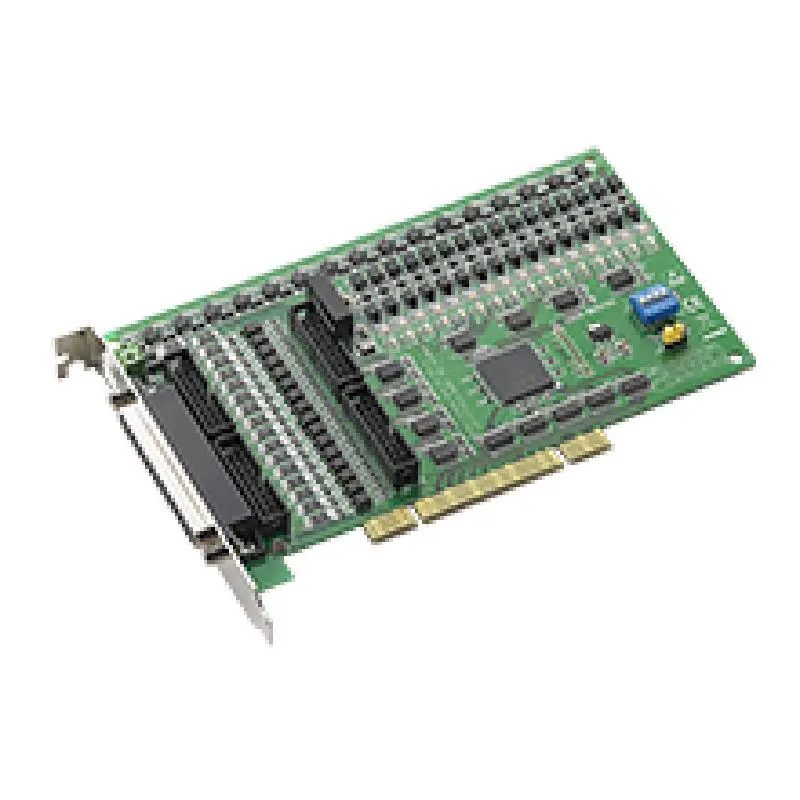

Advantech PCI-1730U 32-ch Isolated Digital I/O Universal PCI Card

ISA-compatible with PCL-730

32-ch TTL DI/O (16-ch digital input,16-ch digital output)

High output driving capacity

Interrupt handling capability

2 x 20-pin connectors for isolated DI/O channels

2 x 20-pin connectors for TTL DI/O channels

D-type connector for isolated input and output channels

High-voltage isolation on output channels

		PCI-1730U-BE
Digital Input	Channels	16 (Isolated), 16 (TTL)
Digital Input	Isolation Protection	2,500 VDC
Digital Output	Channels	16 (Isolated), 16 (TTL)
Digital Output	Isolation Protection	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
