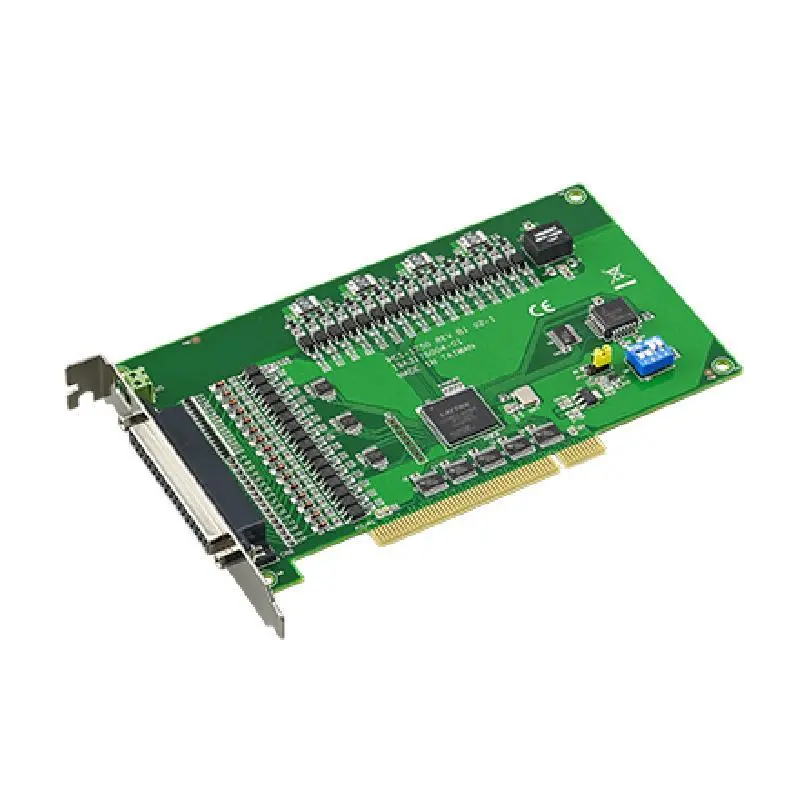

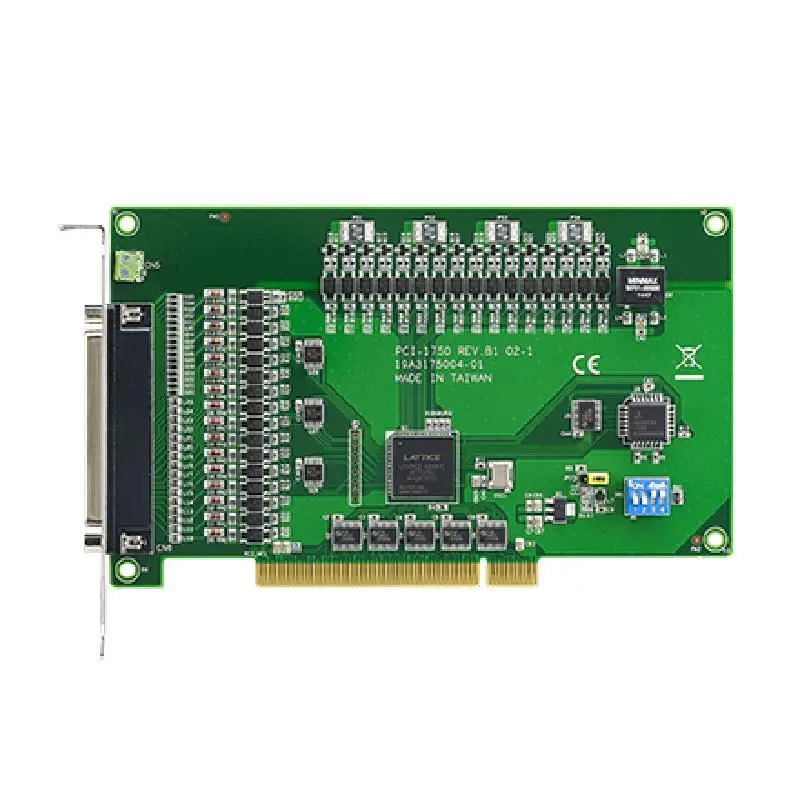

Advantech PCI-1750 32-ch Isolated Digital I/O and 1-ch Counter PCI Card

16 isolated DI and 16 isolated DO channels

High voltage isolation on all isolated channels (2,500 VDC)

High sink current on isolated output channels (200 mA/channel)

Supports dry contact or 5 ~ 50 VDC isolated inputs

Interrupt handling capability

Timer/counter interrupt capability

		PCI-1750-BE	PCI-1750SO-AE
Counter/Encoder Input	Channels	1	1
Counter/Encoder Input	Counting Range	16-bit	16-bit
Digital Input	Channels	16 (Isolated)	16 (Isolated)
Digital Input	Isolation Protection	2,500 VDC	2,500 VDC
Digital Output	Channels	16 (Isolated)	16 (Isolated)
Digital Output	Isolation Protection	2,500 VDC	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
