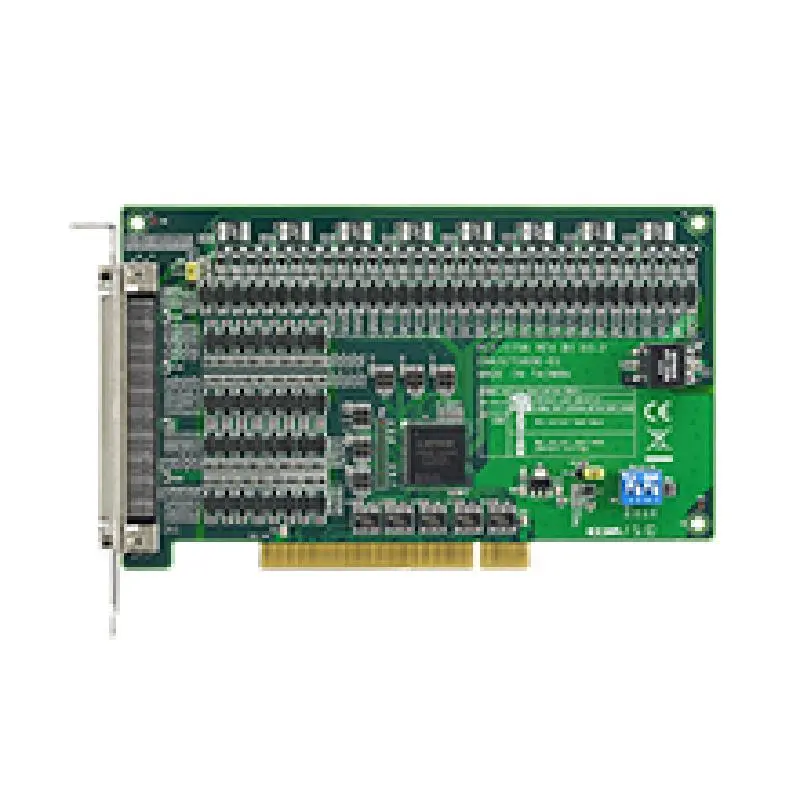

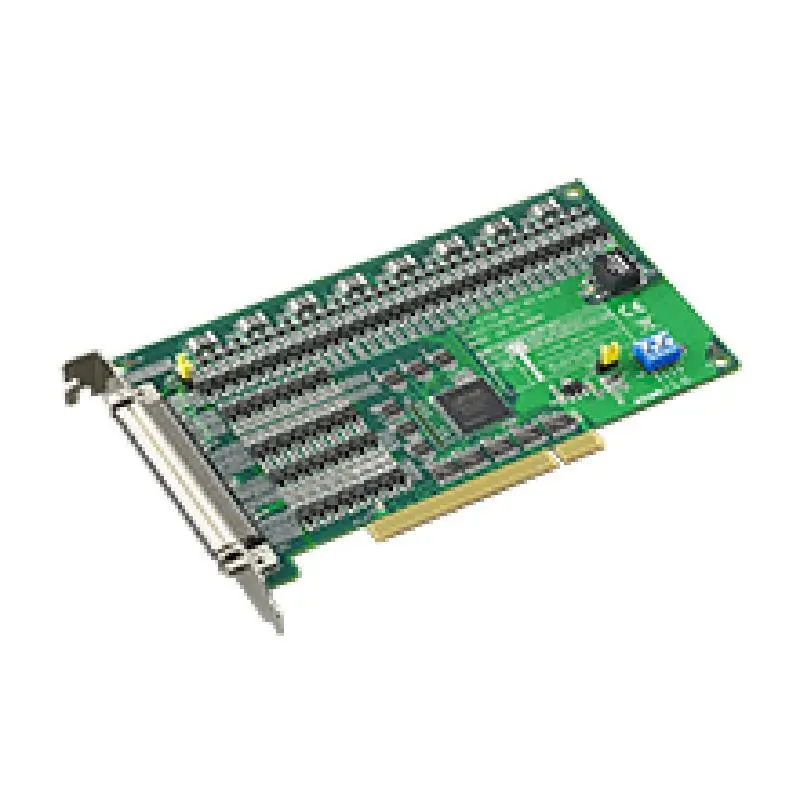

Advantech PCI-1756 64-ch Isolated Digital I/O PCI Card

Either ± voltage input for DI by group

High-voltage isolation input/output channels (2,500 VDC)

Interrupt handling capability

High over-voltage protection (70 VDC) for DI

High-sink current on isolated output channels (200 mA max./channel)

Output status readback

Keeps output settings/ values after system hot reset

2,000 VDC ESD protection for DI

High-density 100-pin SCSI connector

		PCI-1756-BE
Digital Input	Channels	32 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
Digital Output	Channels	32 (Isolated)
Digital Output	Isolation Protection	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
