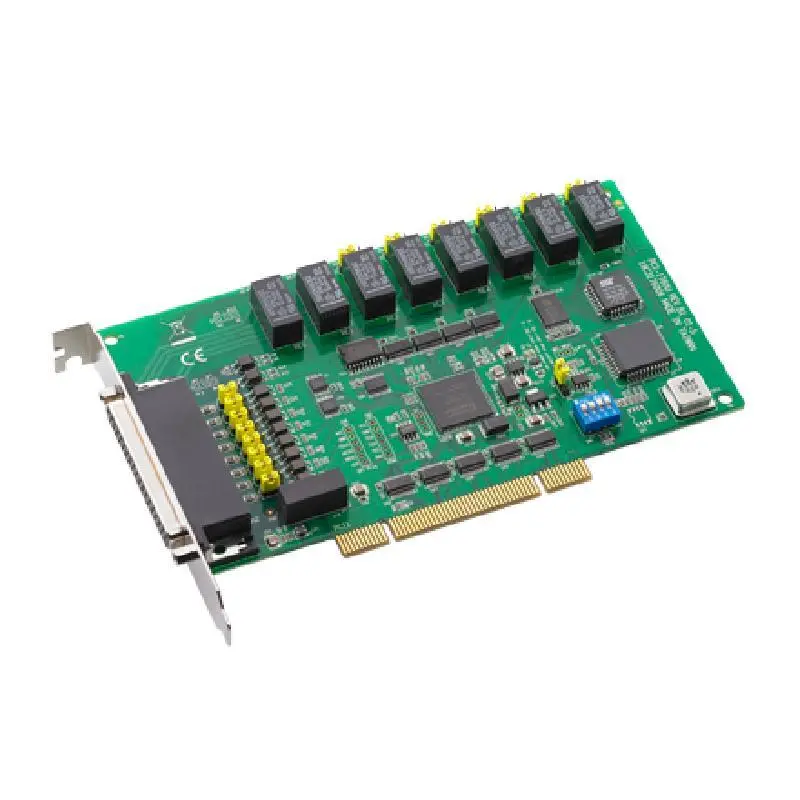

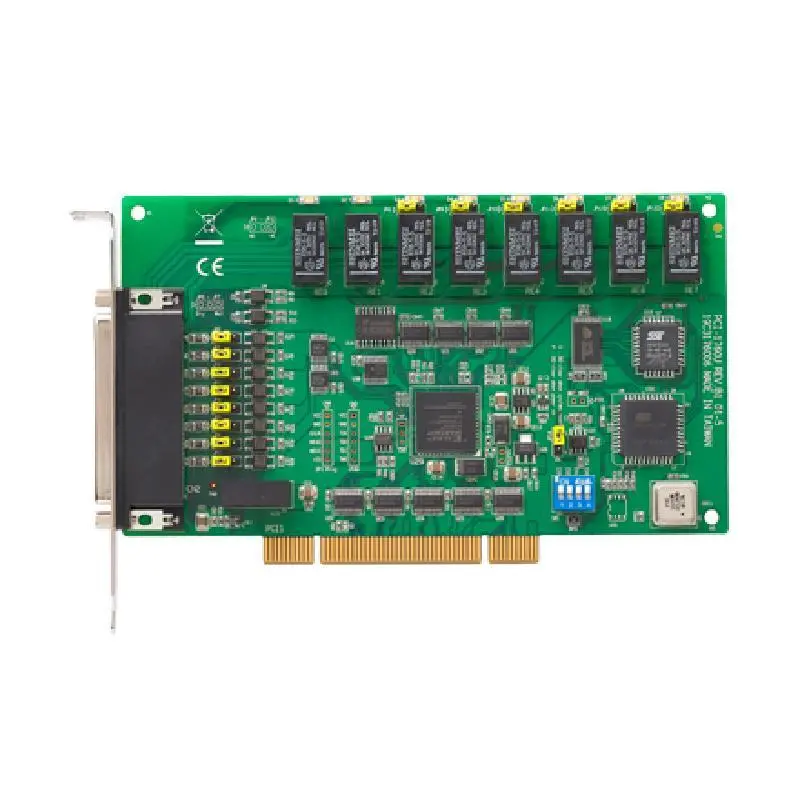

Advantech PCI-1760U 8-ch Relay and 8-ch Isolated DI PCI Card with 8-ch Counter/Timer

Jumper selectable dry contact/wet contact input signals

8 opto-isolated digital input channels

8 relay actuator output channels

2 opto-isolated PWM outputs

Programmable digital filter function for DI

Universal PCI card, for 3.3 V and 5 V PCI slot

Up event counters for DI

LED indicators to show activated relays

Pattern match interrupt function for DI

Change of state interrupt function for DI

Universal PCI and BoardID switch
