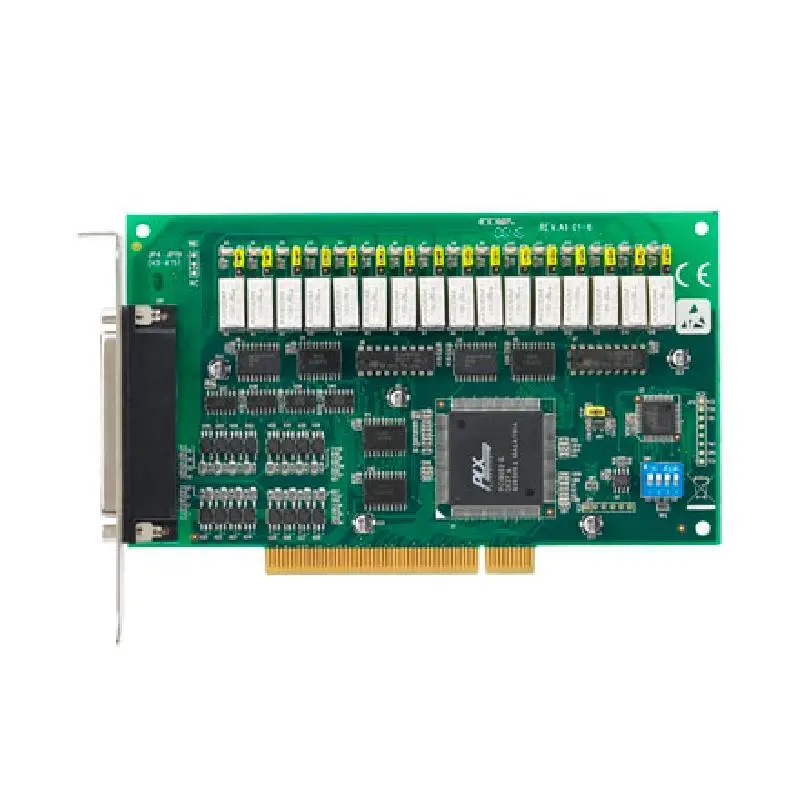

Advantech PCI-1762 16-ch Relay and 16-ch Isolated Digital Input PCI Card

16 relay output channels and 16 isolated digital input channels

LED indicators to show activated relays

Jumper selectable Form A/Form B-type relay output channel

Wide input range (10 ~ 50 VDC)

Retain relay output values when hot system reset

High-voltage isolation on input channels (2,500 VDC)

High ESD protection (2,000 VDC)

High over-voltage protection (70 VDC)

Output status read-back

Interrupt handling capability

High-density DB-62 connector

BoardID™ switch
