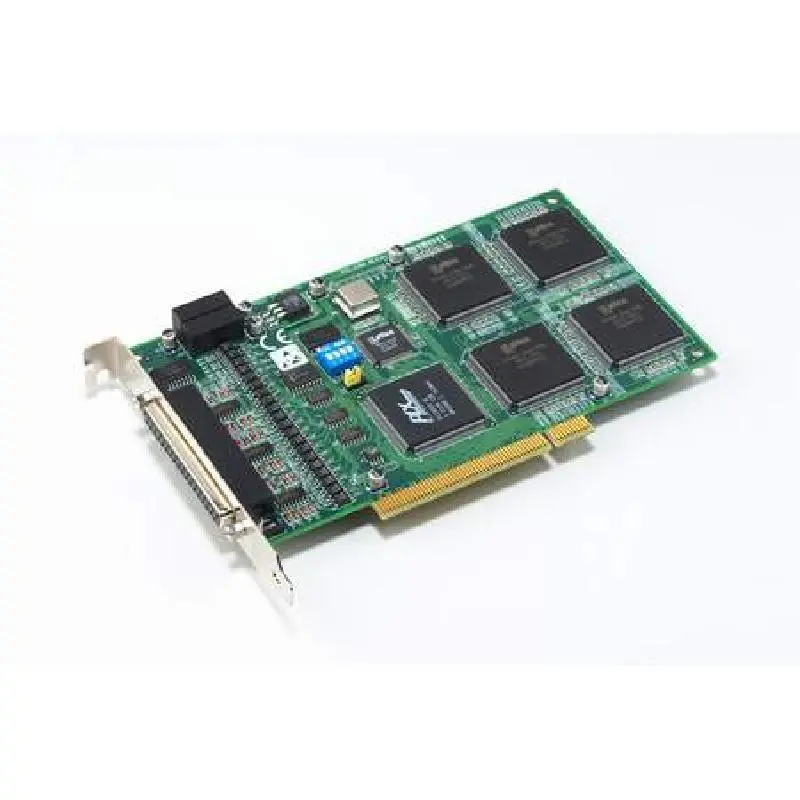

Advantech PCI-1784U 4-axis Quadrature Encode/Counter Universal PCI Card with 8-ch Isolated Digital I/O

Four 32-bit up/down counters

Single ended or differential inputs

Pulse/direction and up/down counter

x1, x2, x4 counts for each encoder cycle

Multiple interrupt sources for precision application

4-stage digital filter with selectable sampling rate

On-board 8-bit timer with wide range time-base selector

Optically isolated up to 2,500 VDC

4 isolated digital input

4 isolated digital output

BoardID™ switch

		PCI-1784U-AE
Counter/Encoder Input	Channels	4
Counter/Encoder Input	Counting Range	32-bit
Counter/Encoder Input	Mode	Counter (up/down, bi-direction, up, A/B Phase)
Digital Input	Channels	4 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
Digital Output	Channels	4 (Isolated)
Digital Output	Isolation Protection	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
