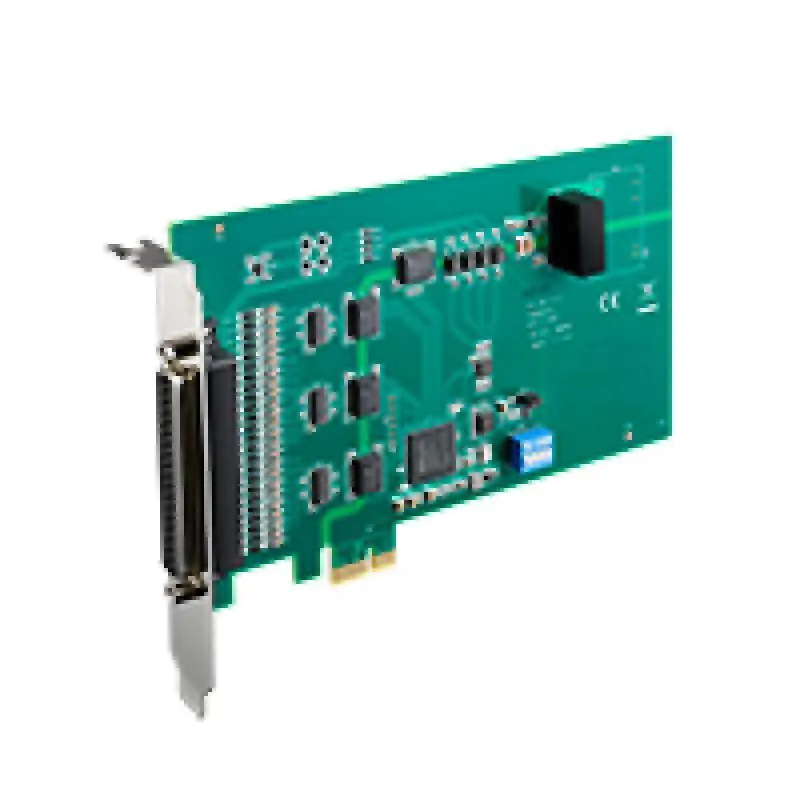

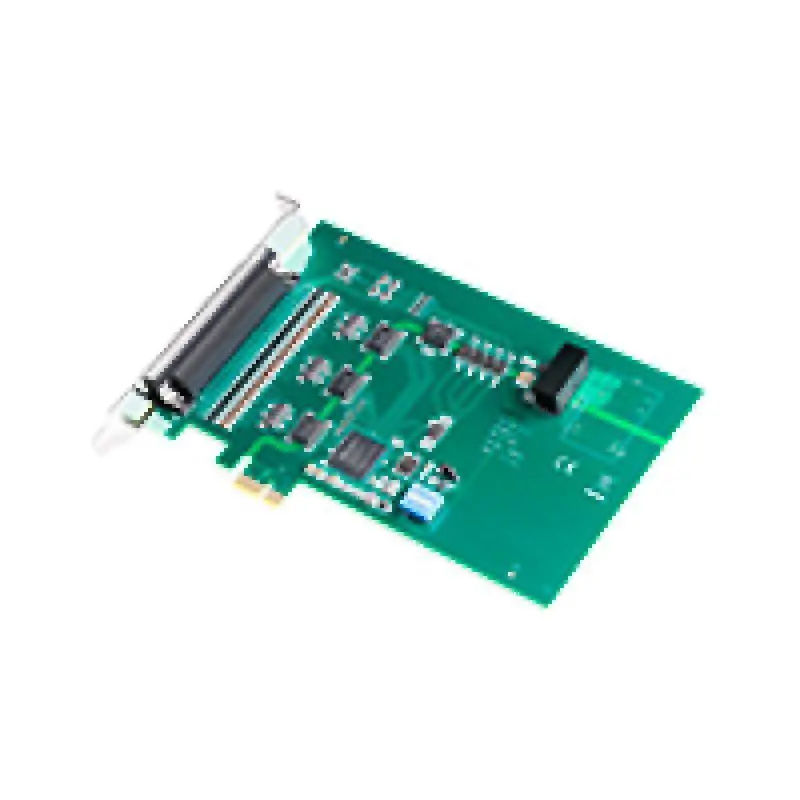

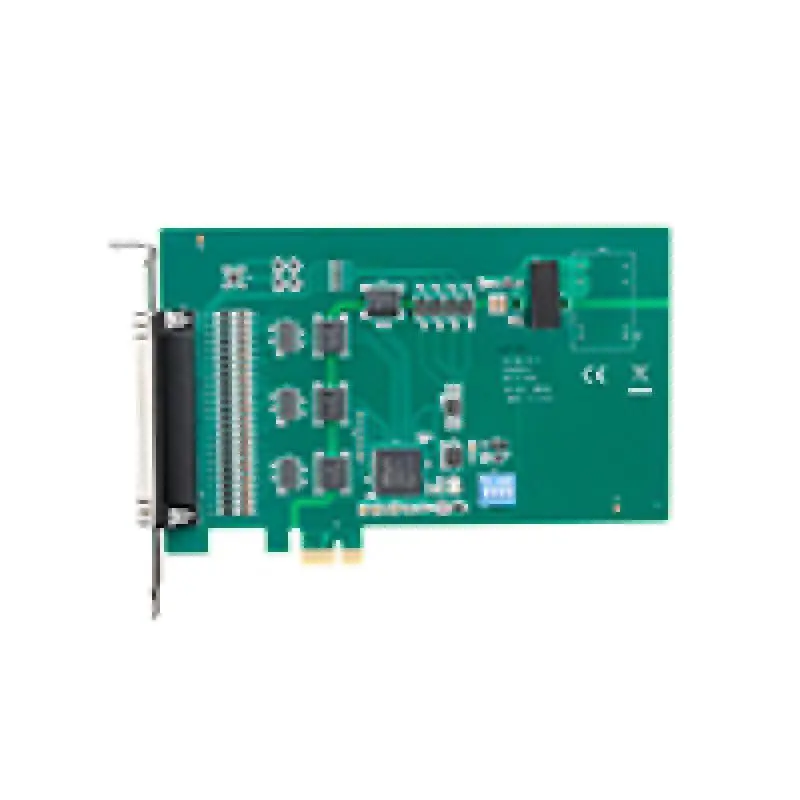

Advantech PCIE-1884 32-bit, 4-ch Encoder/Counter with Preload Position Compare FIFO PCIE Card

    Four 32-bit programmable encoder counters

    Quadrature (X1, X2, X4), dual pulse (CW/CCW), signed pulse (OUT/DIR) modes

    Programmable trigger output (preload FIFO) for position comparison

    Single-ended or differential inputs

    Digital filter with selectable values

    2,500 VDC isolation protection for all signals

PCIE-1884-AE
Counter/Encoder Input Channels 4
Counter/Encoder Input Counting Range 32-bit
Counter/Encoder Input Mode Counter (up/down, bi-direction, up, A/B Phase)
Digital Input Channels 4 (Isolated)
Digital Input Isolation Protection 2,500 VDC
Digital Output Channels 4 (Isolated)
Digital Output Isolation Protection 2,500 VDC
General Programming Language C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
