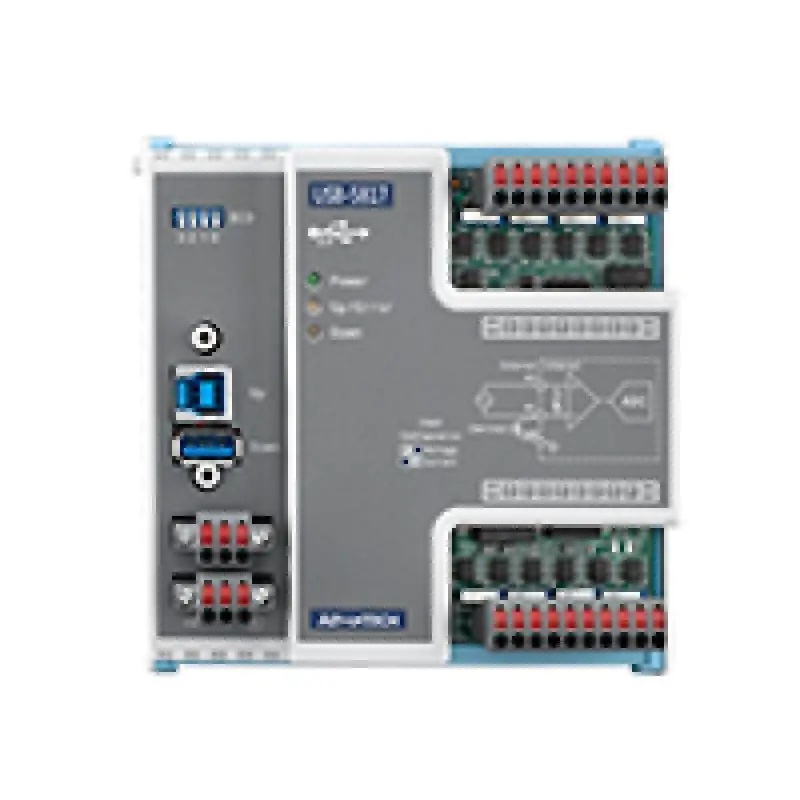

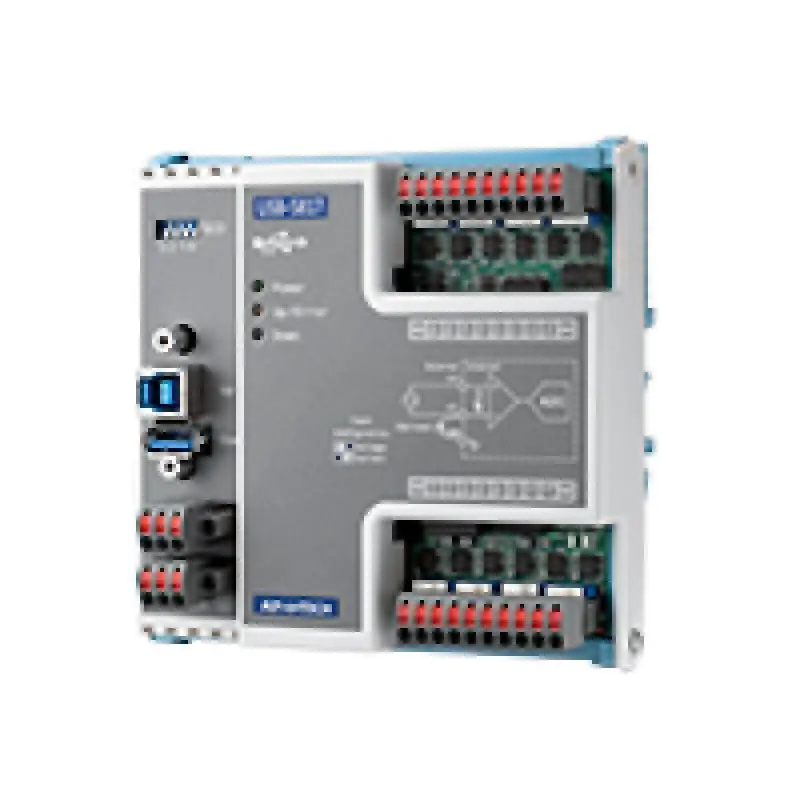

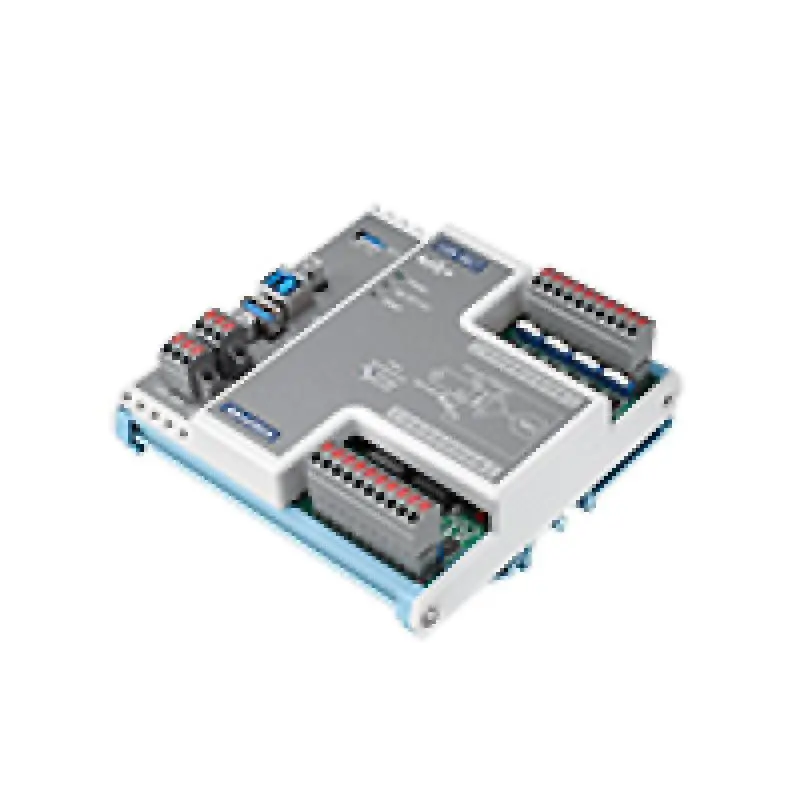

Advantech USB-5817 8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module - industrial computer

Advantech USB-5817 8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module

USB 3.0 SuperSpeed

Daisy chainable by built-in USB hub

8 x 16-bit analog input channels with 2,500 VDC isolation

Support voltage and current measurement

Wide common-mode voltage range (±275 V)

Removable European-type connector

Supported operating systems: Windows XP/7/8/10

Inquiry

Description

		USB-5817-AE
Analog Input	Channels	8
Analog Input	Input Range	±10 V, 0~20 mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	200 KS/s (sum)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
