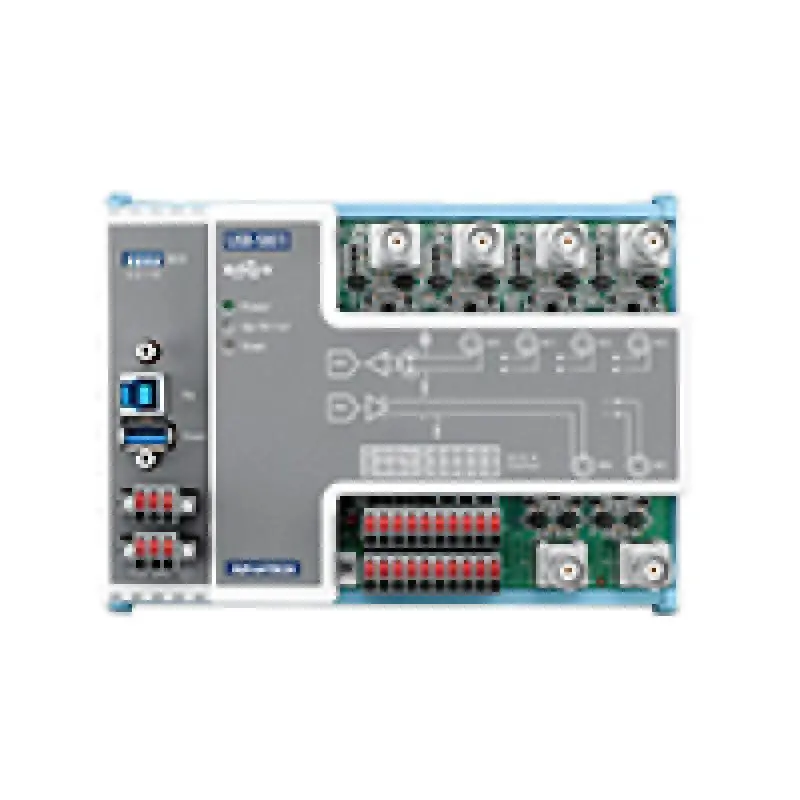

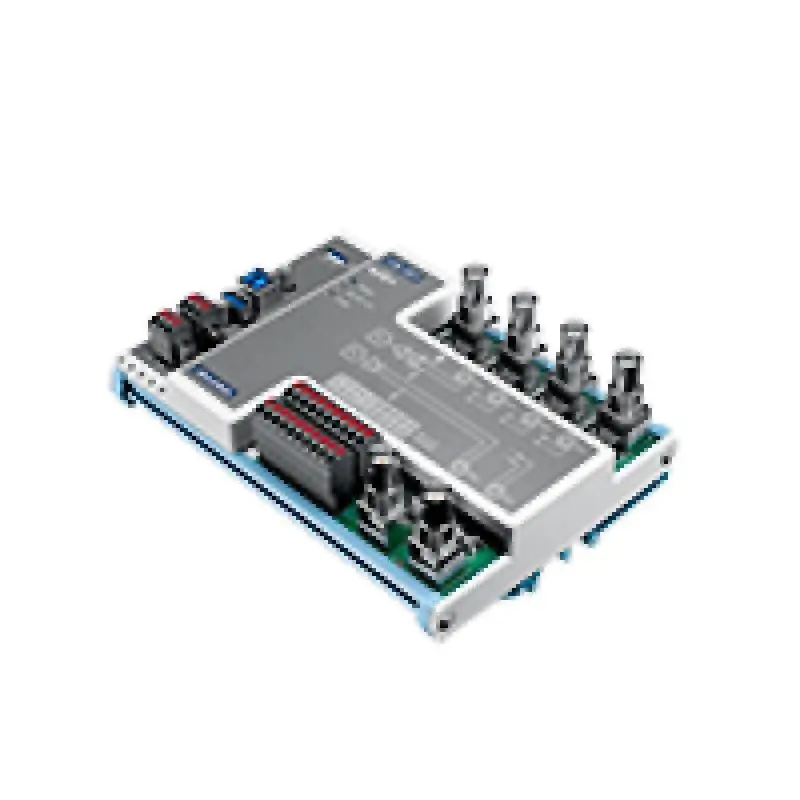

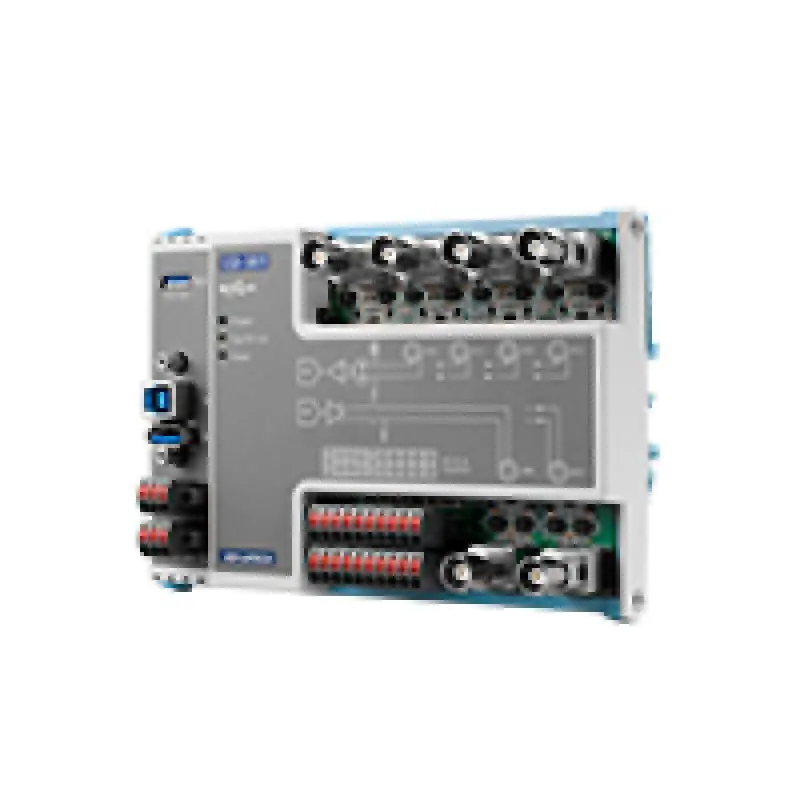

Advantech USB-5801 4-ch, 24-bit, 192 kS/s USB 3.0 I/O Module for Sound and Vibration (with AO and Tachometer)

USB 3.0 SuperSpeed and daisy chainable by built-in USB hub

4x simultaneously sampled analog inputs, up to 192 kS/s

24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)

Built-in anti-aliasing filter

2 mA integrated electronic piezoelectric (IEPE) excitation currents

2 analog outputs with update rate up to 192 kS/s

24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)

2 tachometer inputs for period or frequency measurement

4-ch isolated digital input and 4-ch isolated digital output

		USB-5801-AE
Analog Input	Channels	4
Analog Input	Input Range	±1 V, ±2 V, ±5 V, ±10 V
Analog Input	Resolution(Bits)	24-bit
Analog Input	Sampling Rates(S/s)	192 KS/s (per channel)
Analog Input	Trigger	Post-trigger, pre-trigger, delay-trigger, about-trigger
Analog Output	Channels	2
Analog Output	Output Ranges	±1 V, ±10 V
Analog Output	Resolution	24-bit
Analog Output	Update Rate(S/s)	192 KS/s
Digital Input	Channels	4 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
Digital Output	Channels	4 (Isolated)
Digital Output	Isolation Protection	2,500 VDC
