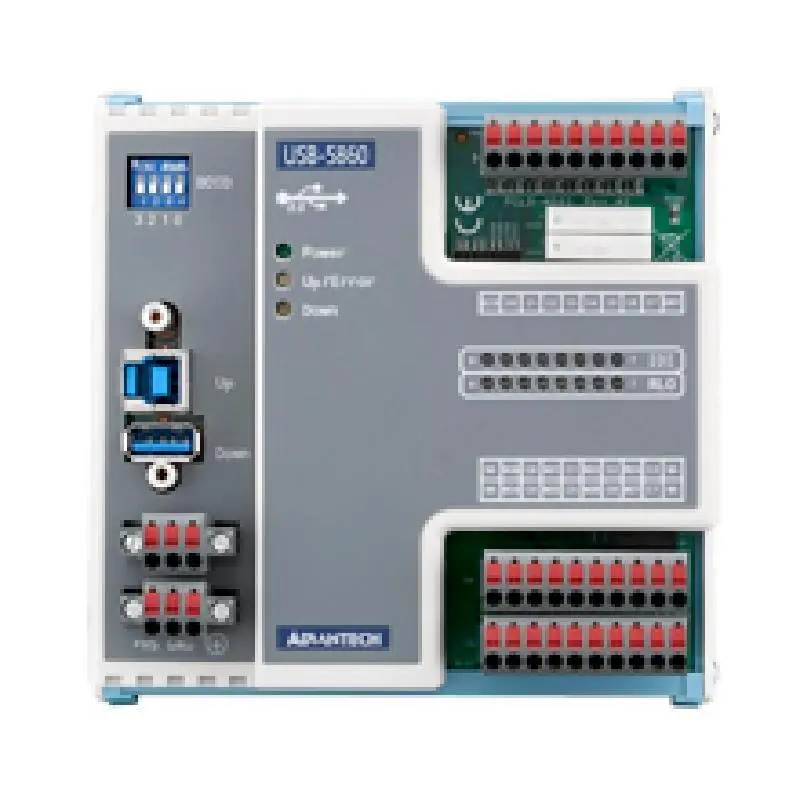

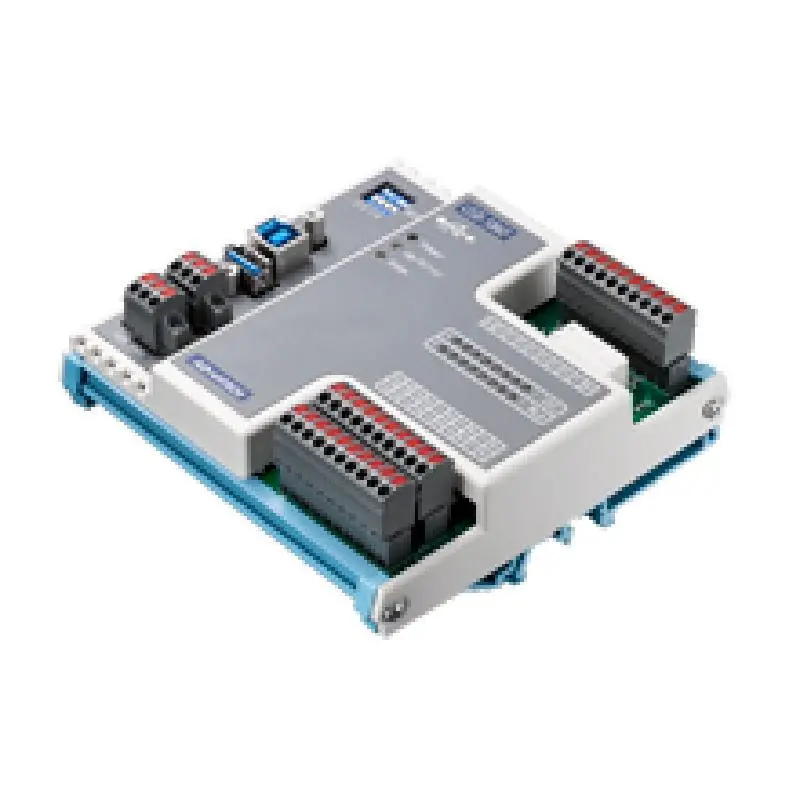

Advantech USB-5860 8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module - industrial computer

Advantech USB-5860 8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module

USB 3.0 SuperSpeed

Daisy chainable by built in USB hub

8-ch Isolated Digital Input and 8-ch Form A-type Relay Output

Wide input voltage range (10 ~ 30 VDC)

High-voltage isolation on input channel (2,500 VDC )

Quick removable European type connector

LED indicators for I/O status

Supported operating systems: Windows XP/7/8/10

Inquiry

Description

		USB-5860-AE
Digital Input	Channels	16 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Relay Output	Channels	8 Form A
Relay Output	Contact Rating (Resistive)	2 A @ 30 VDC, 2 A @ 250 VAC
