| USB-4711A-BE | ||
| Analog Input | Channels | 16 |
| Analog Input | Input Range | ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0~10 V, 0~5 V, 0~2.5 V, 0~1.25 V |
| Analog Input | Resolution(Bits) | 12-bit |
| Analog Input | Sampling Rates(S/s) | 150 KS/s (sum) |
| Analog Output | Channels | 2 |
| Analog Output | Resolution | 12-bit |
| Analog Output | Update Rate(S/s) | Static update |
| Counter/Encoder Input | Channels | 2 |
| Counter/Encoder Input | Counting Range | 32-bit |
| Digital Input | Channels | 8 (TTL) |
| Digital Output | Channels | 8 (TTL) |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |

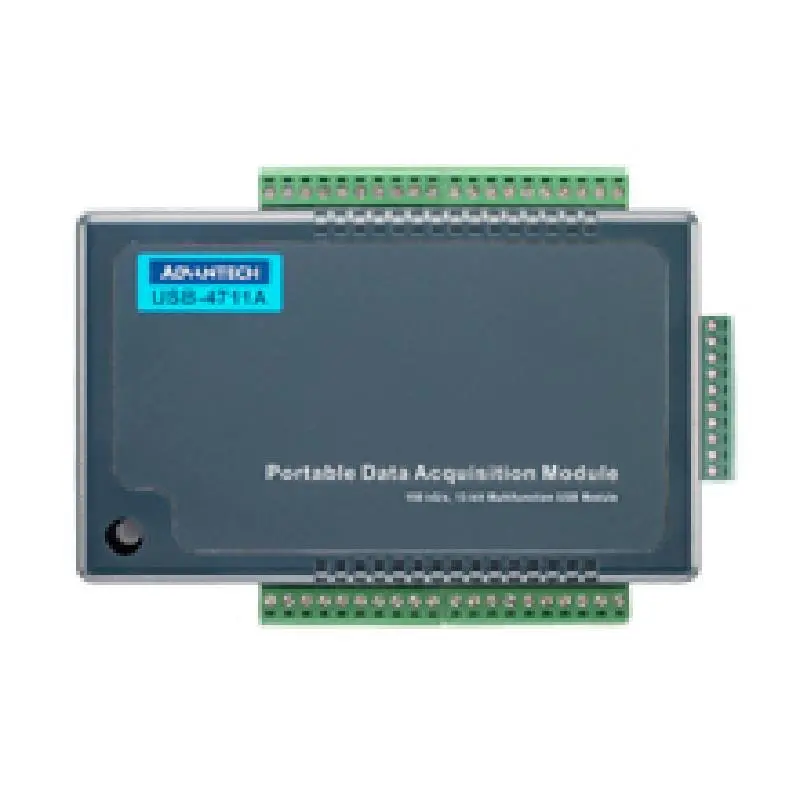

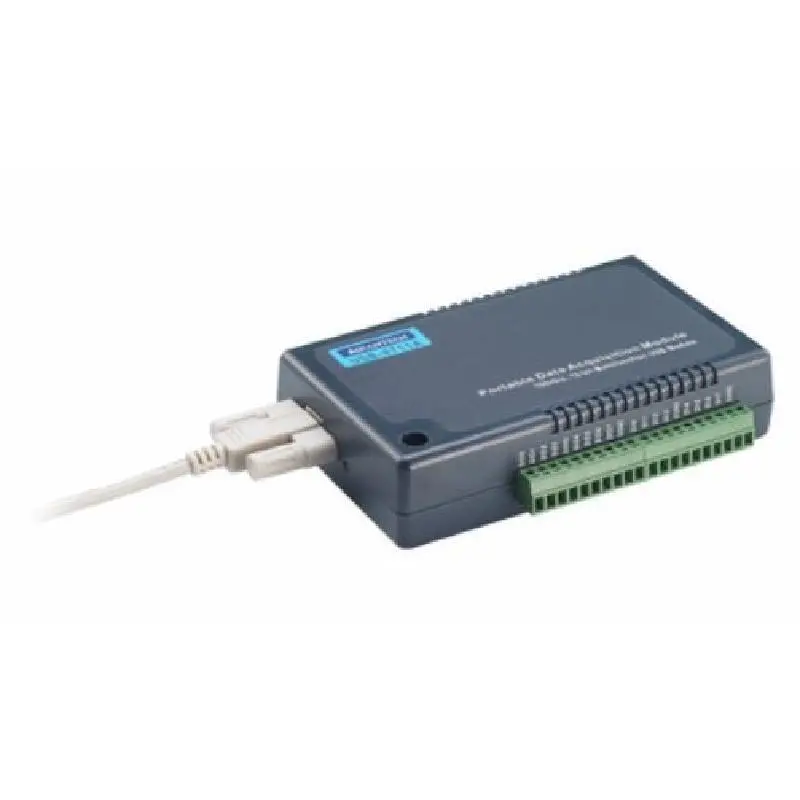

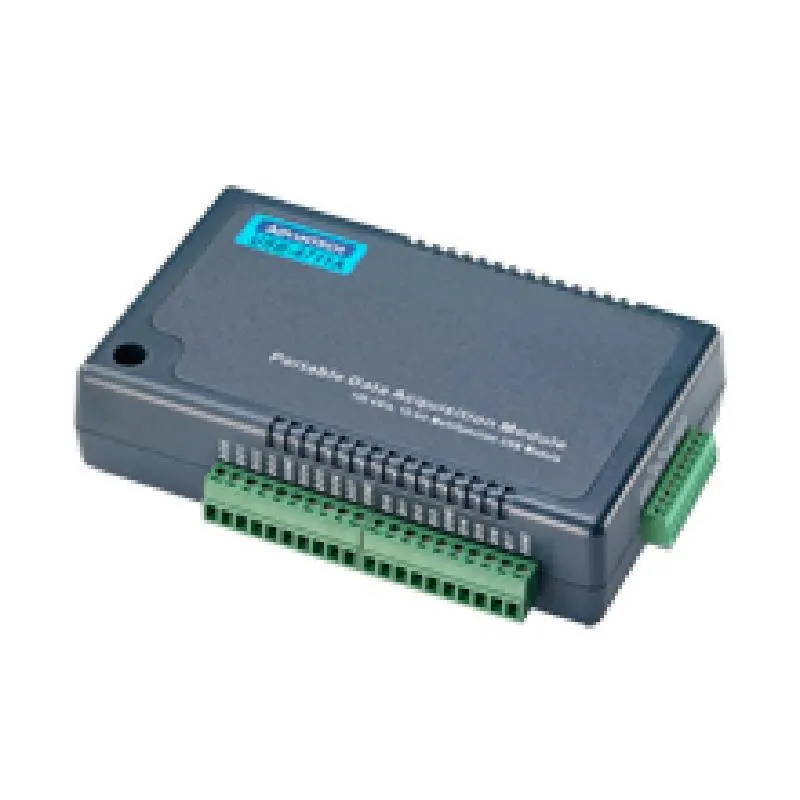

Advantech USB-4711A 150 kS/s, 12-bit, 16-ch Multifunction USB Module
Hot Product
