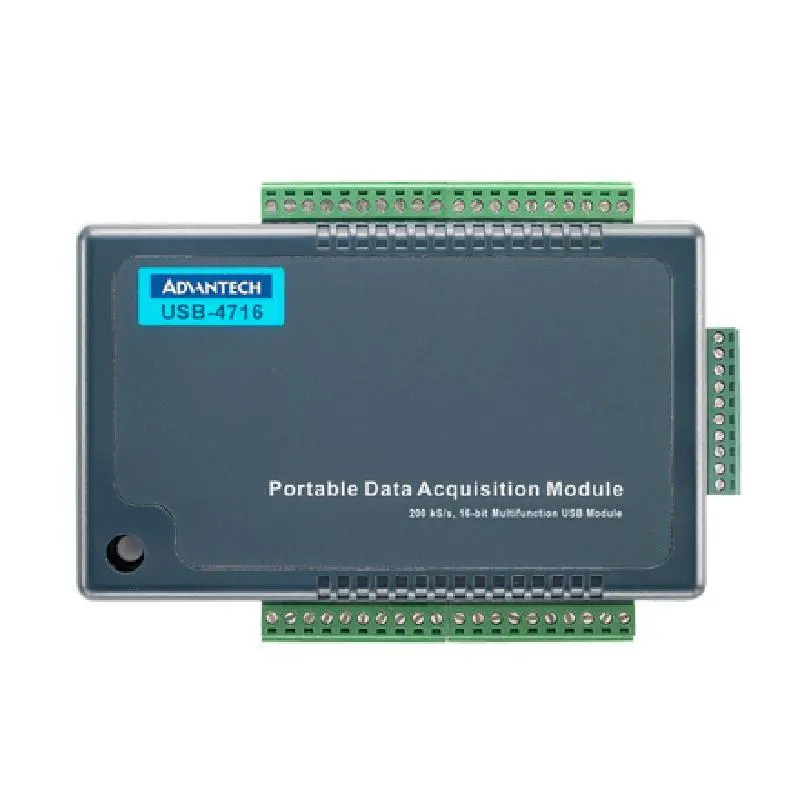

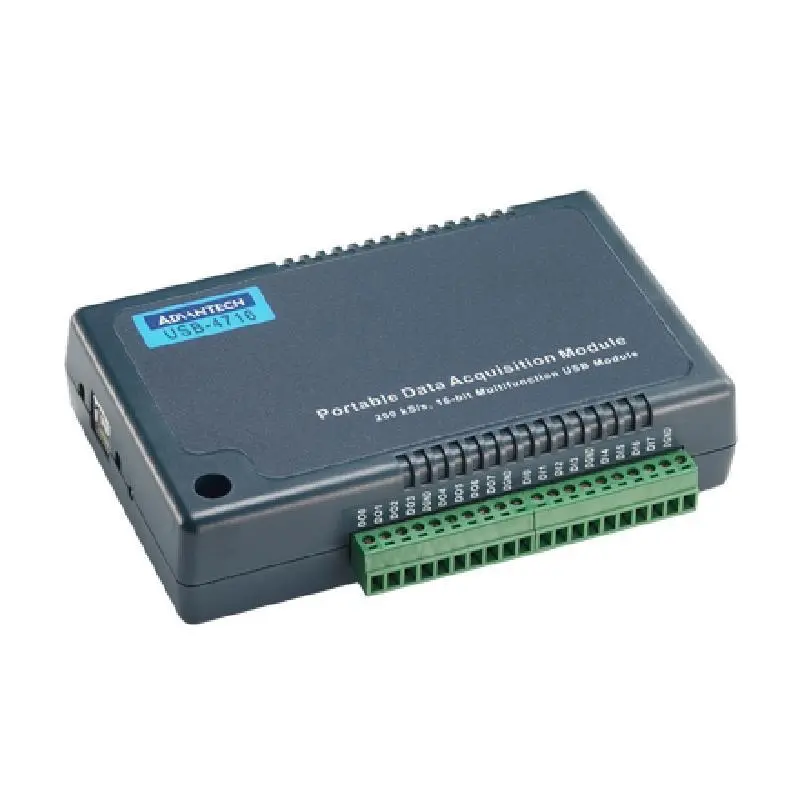

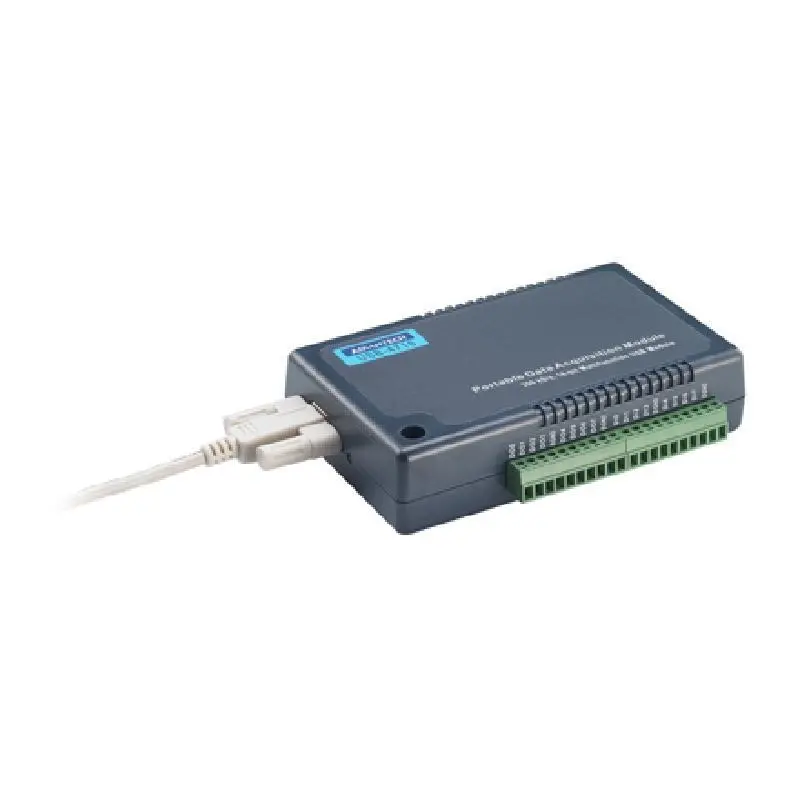

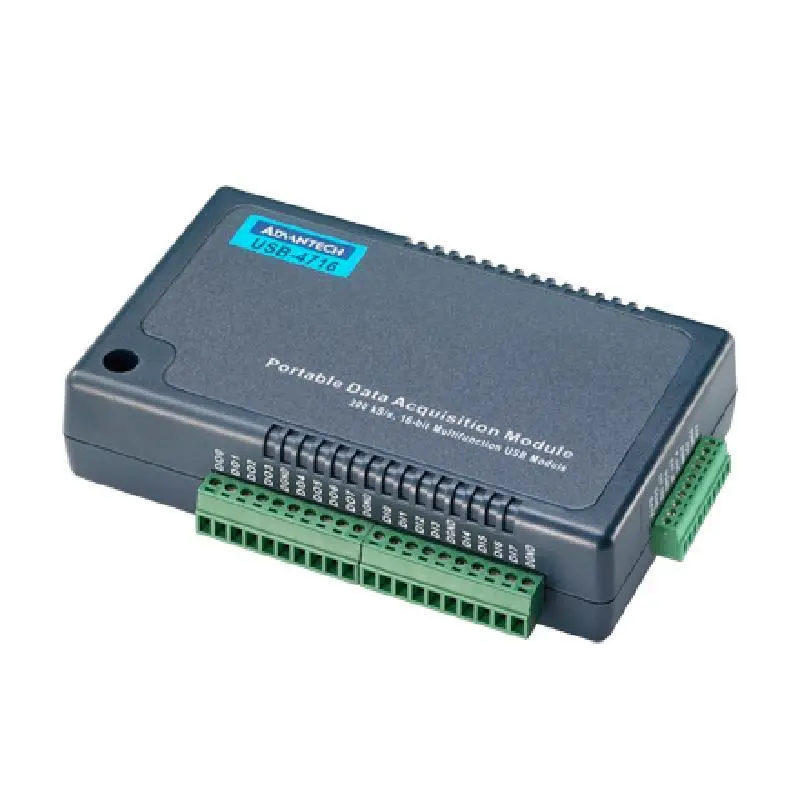

Advantech USB-4716 200 kS/s, 16-bit, 16-ch Multifunction USB Module

Supports USB 3.0 SuperSpeed

Bus-powered

16 analog input channels

16-bit resolution AI

Sampling rate up to 200 kS/s

8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter

Detachable screw terminal on modules

Suitable for DIN-rail mounting

One lockable USB cable for secure connection included

Portable

		USB-4716-BE
Analog Input	Input Range	±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0~10 V, 0~5 V, 0~2.5 V, 0~1.25 V
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	200 KS/s (sum)
Analog Output	Channels	2
Analog Output	Resolution	16-bit
Analog Output	Update Rate(S/s)	Static update
Counter/Encoder Input	Channels	2
Counter/Encoder Input	Counting Range	32-bit
Digital Input	Channels	8 (TTL)
Digital Output	Channels	8 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
