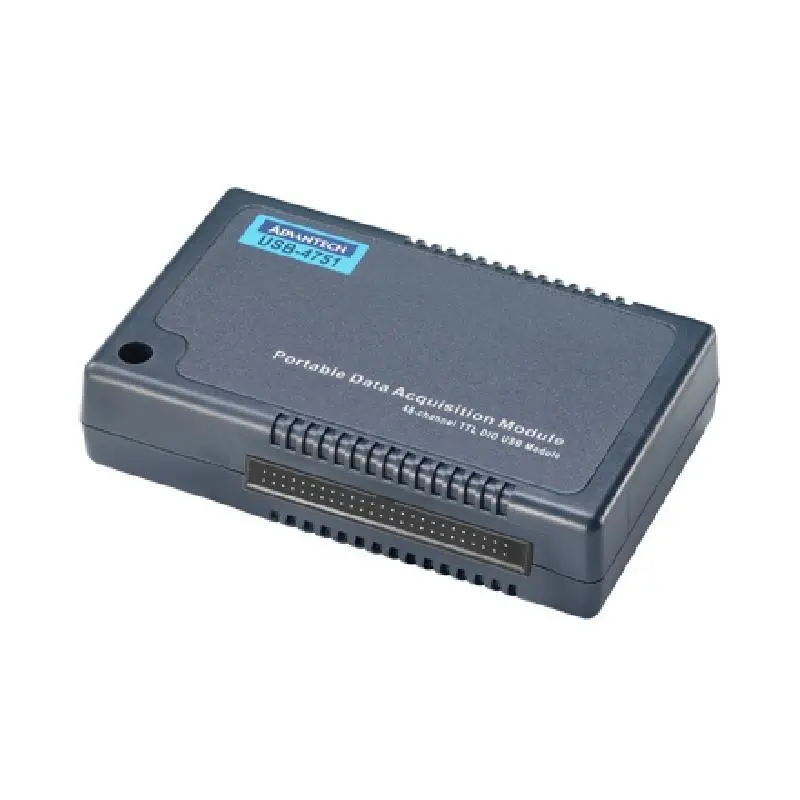

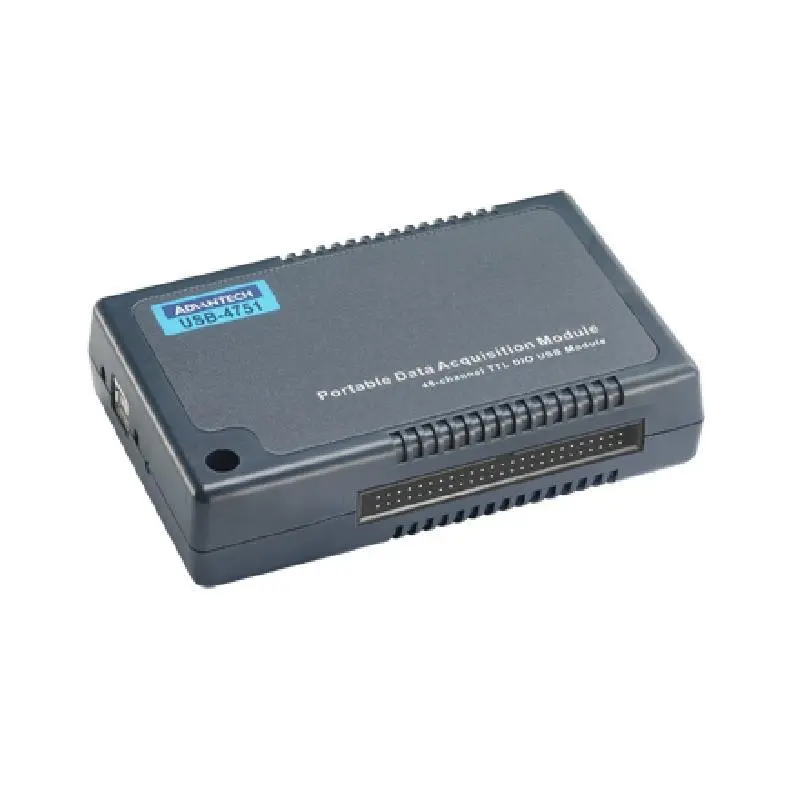

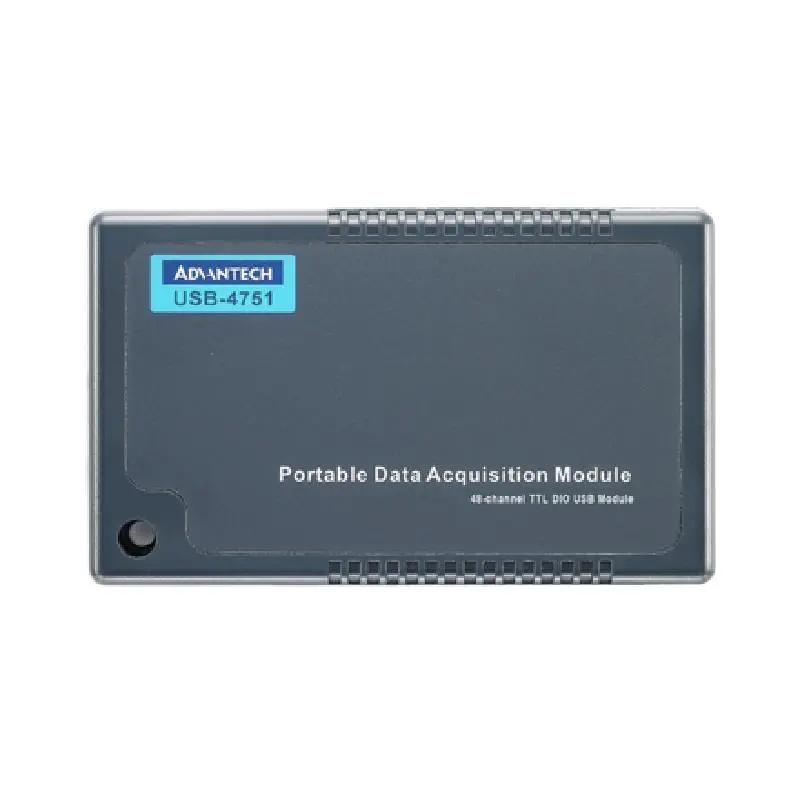

Advantech USB-4751 48-ch Digital I/O USB Module

Compatible with USB 1.1/2.0

Bus-powered

48 TTL digital I/O lines

Emulates mode 0 of 8255 PPI

Buffered circuits for higher driving capacity than 8255

Interrupt handling capability

Timer/Counter interrupt capability

Supports both dry and wet contact

50-pin Opto-22 compatible box header

Portable

Suitable for DIN-rail mounting

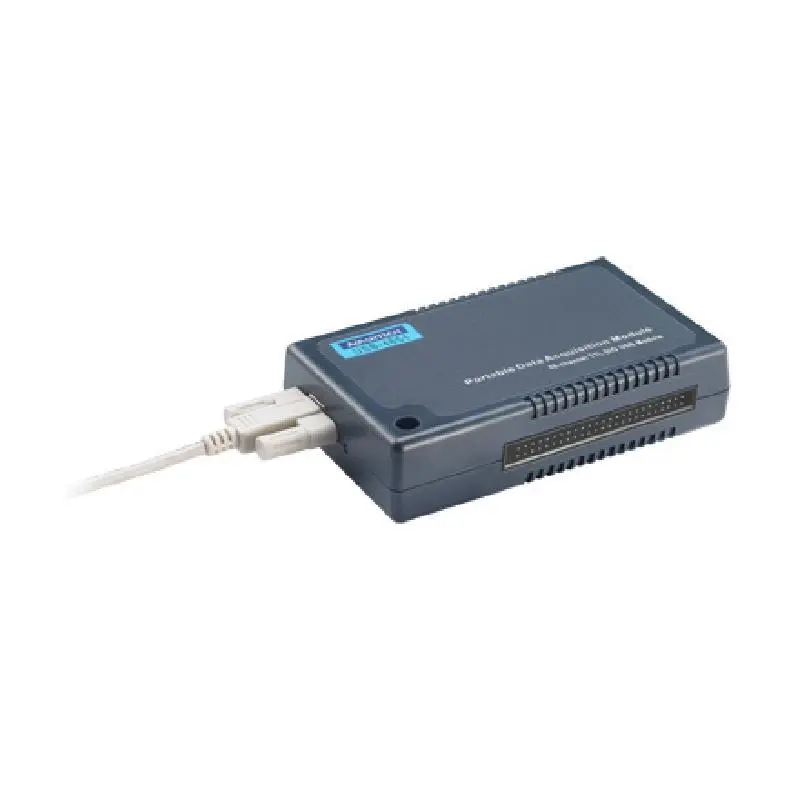

One lockable USB cable for secure connection included

		USB-4751-BE	USB-4751L-BE
Digital Input	Channels	48 (TTL)	24 (TTL)
Digital Output	Channels	48 (TTL)	24 (TTL)
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
