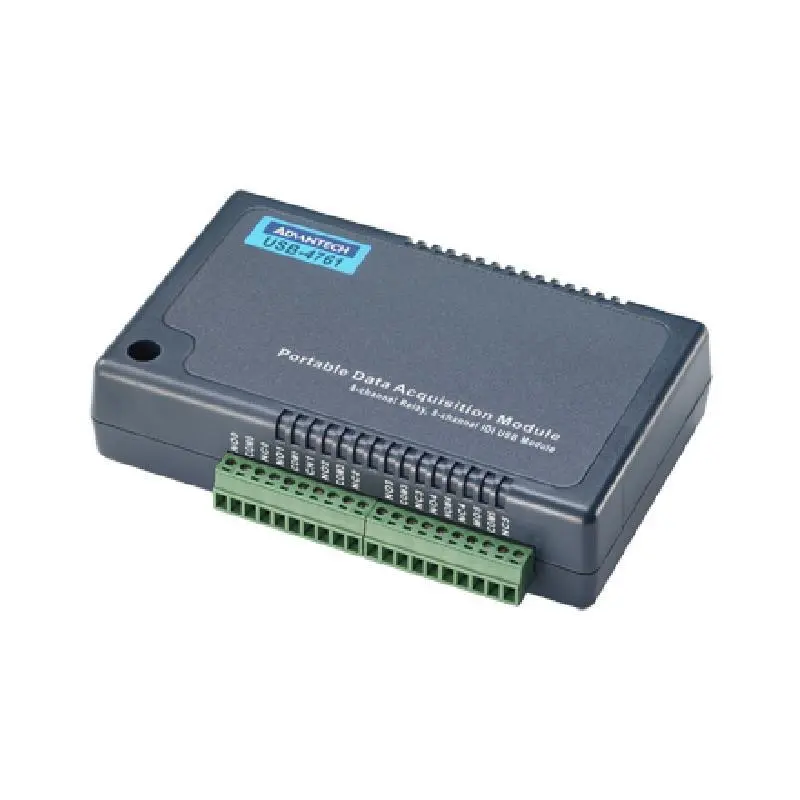

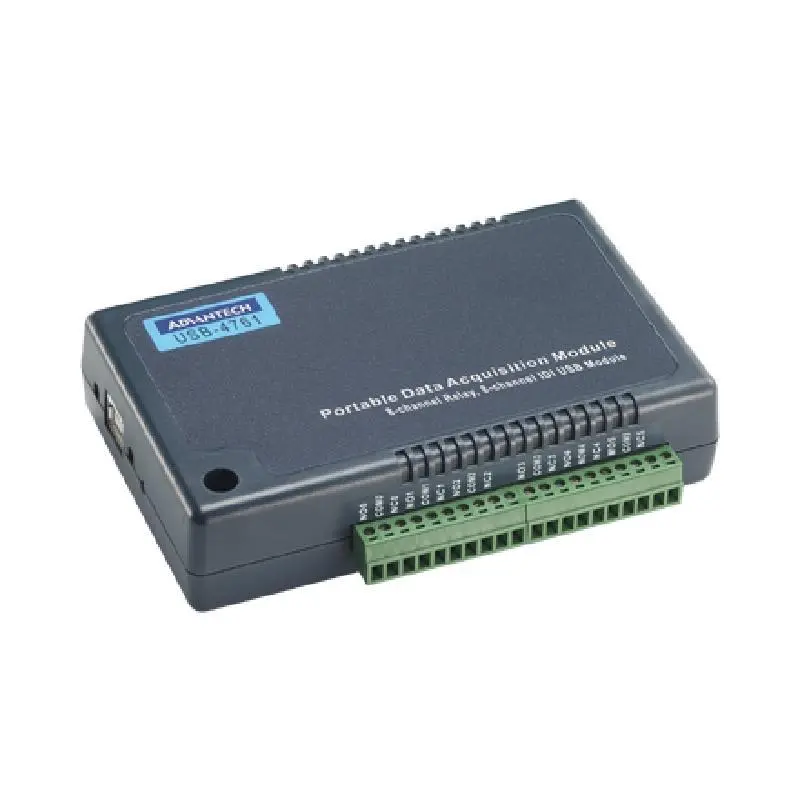

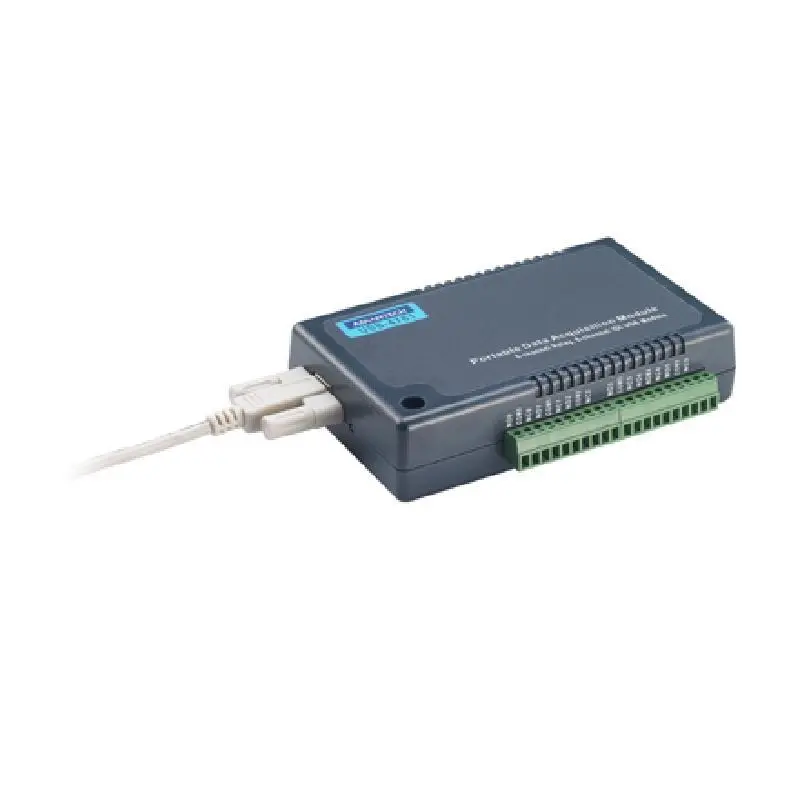

Advantech USB-4761 8-ch Relay and 8-ch Isolated Digital Input USB Module

Compatible with 1.1/2.0

Bus-powered

8 relay output channels and 8 isolated digital input channels

LED indicators to show activated relays

8 Form C type relay output channels

High-voltage isolation on input channels (2,500 VDC)

High ESD protection (2,000 VDC)

Wide input range (5 ~ 30 VDC)

Interrupt handling capability

Portable

Detachable screw terminal on modules

Suitable for DIN-rail mounting

One lockable USB cable for secure connection included

		USB-4761-CE
Digital Input	Channels	8 (Isolated)
Digital Input	Isolation Protection	2,500 VDC
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Relay Output	Channels	8 Form C
Relay Output	Contact Rating (Resistive)	1 A @ 30 VDC, 0.3 A @ 110 VAC, 0.5 A @ 120 VAC, 0.25 A @ 240 VAC
