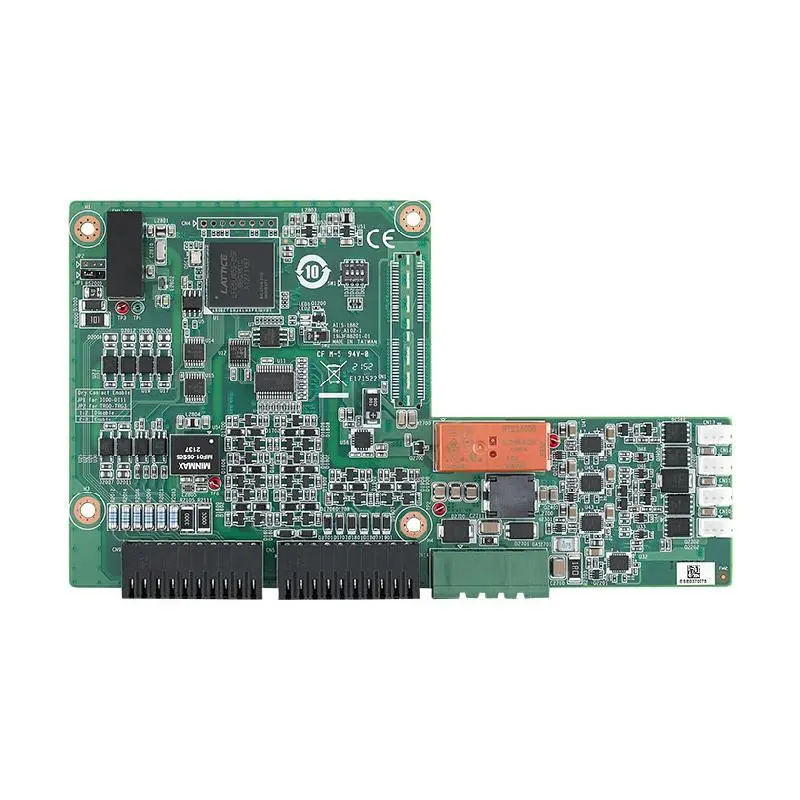

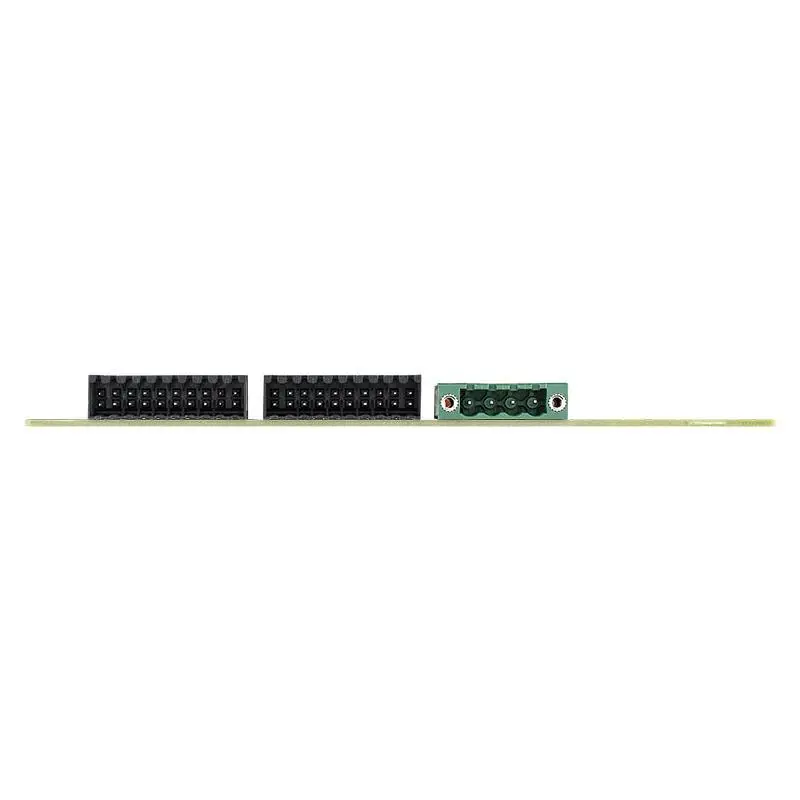

Advantech AIIS-1882 4-ch PWM Lighting Control for AIIS Vision System

Designed specifically for machine vision applications

4-ch lighting control output with trigger input

Programmable delay time, PWM high/low time, and output lighting duration

Up to 350 mA and 40 VDC digital output capability by external power

12-ch isolated digital input and 16-ch isolated digital output

Software configurable digital filter for isolated digital input and trigger

Software selectable sink (NPN)/source (PNP) type for isolated digital output

2,500 VDC isolation protection for all I/O signals
