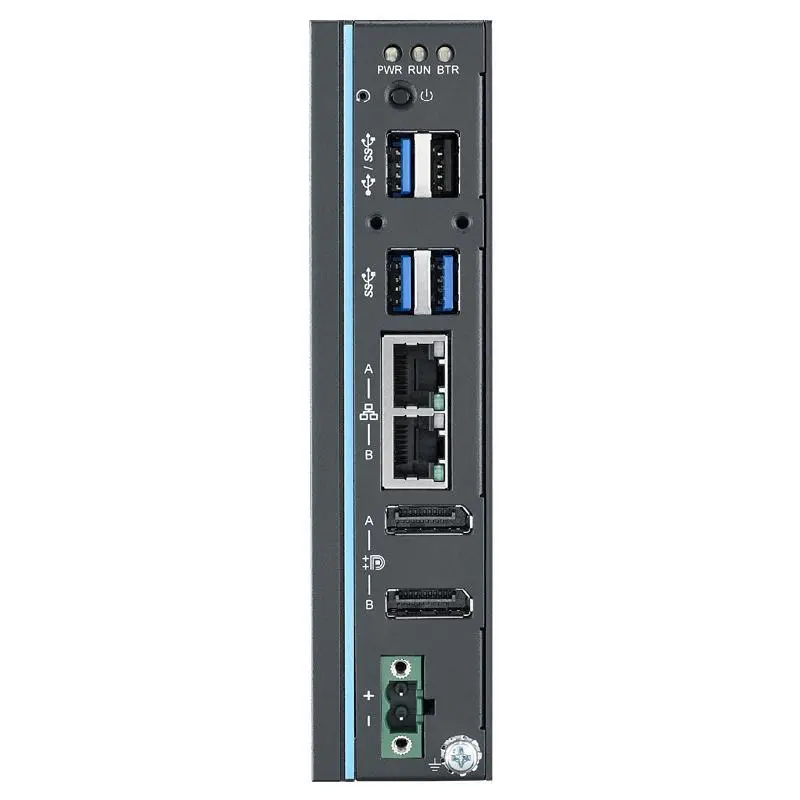

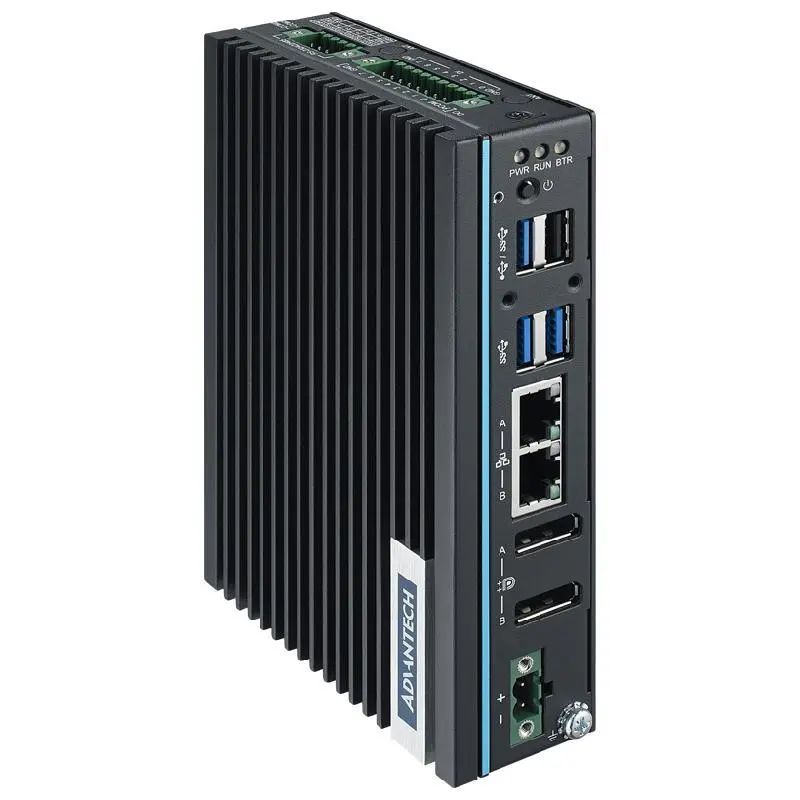

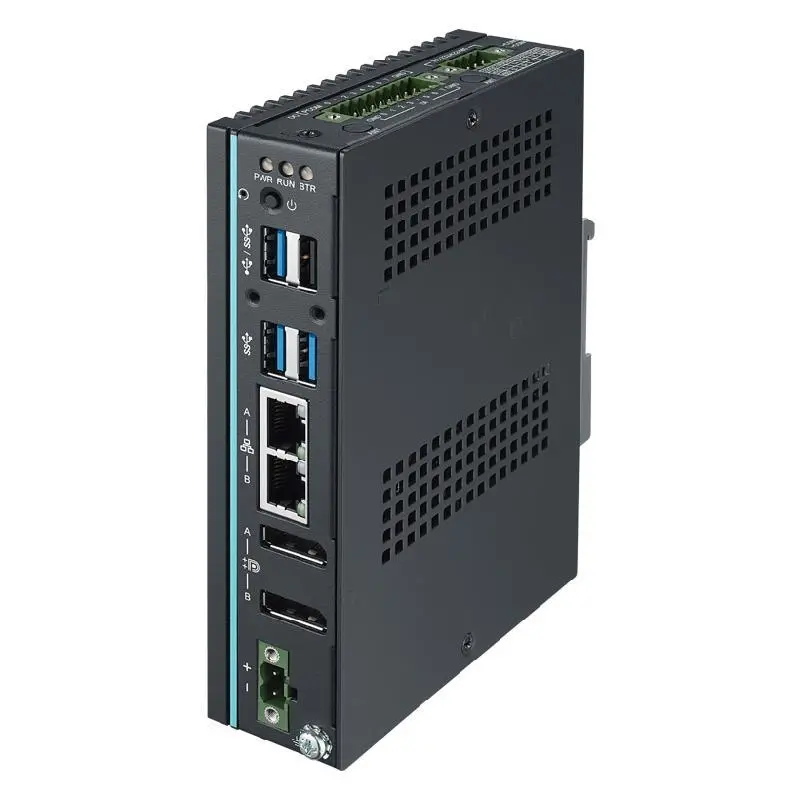

Advantech UNO-137 V2 Small-Size Integrated DIN-Rail IPC with Intel® Atom® x6413E and x6425RE

    Intel® Atom® x6413E (1.5 GHz) and x6425RE (1.9GHz) processor with 8GB DDR4 memory

    Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) and wide power input range (10 ~ 36 VDC)

    Port isolation for 8 x DI, 8 x DO, 2 x COM

    DP++ ensures HDMI/DVI compatibility

    Dual storage: 1 xM.2 M-key 2242 PCIe/NVMe or SATA/SSD and 1 x mSATA

    Onboard TPM 2.0 provides hardware-based security

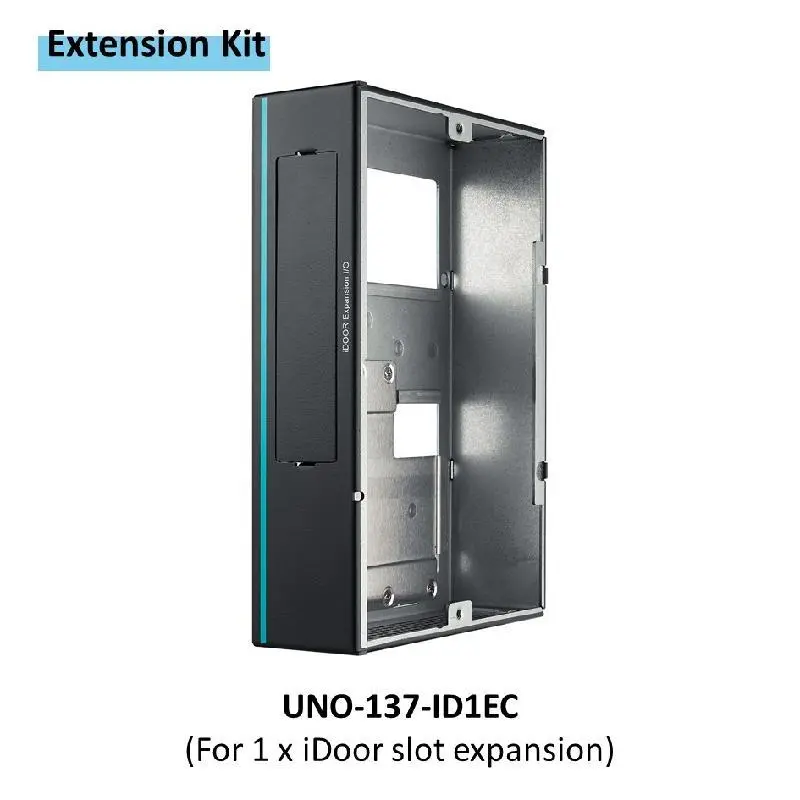

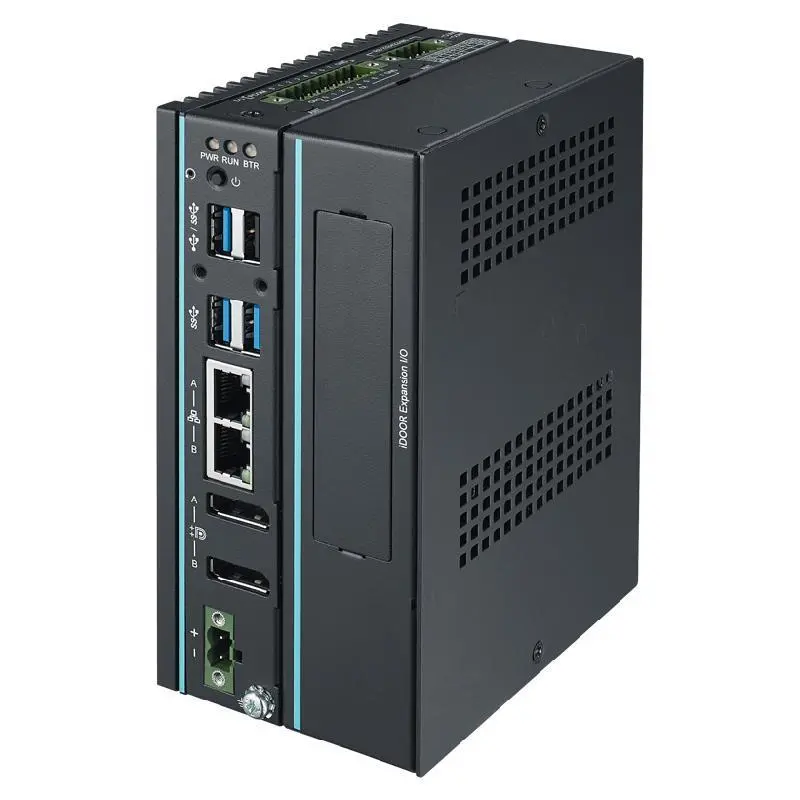

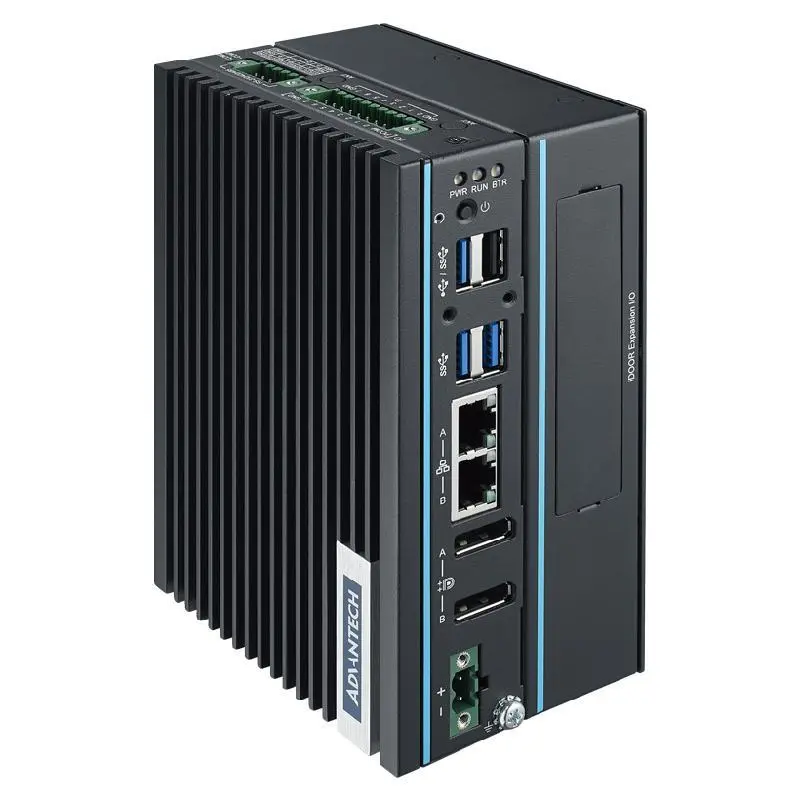

    Modular design for optional iDoor extension

    Ruggedized DIN-rail kit

    Compliant with IEC 61010-1 safety requirements

UNO-137-E23BA UNO-137-I23BA
Hardware Power Input 10~36 VDC 10~36 VDC
Hardware CPU Intel® Atom™ x6413E 1.5GHz Quad-Core Intel® Atom® x6425RE 1.9GHz Quad-Core
Hardware Memory 1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz 1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
Mechanical Weight (Net) 0.8 kg (1.7 lb) 0.8 kg (1.7 lb)
Mechanical Enclosure Aluminum housing Aluminum housing
Hardware Certification CE, FCC, UL 61010-2-201, CCC, BSMI CE, FCC, UL 61010-2-201, CCC, BSMI
I/O Interface LAN Ports 2 x 10/100/1000/2500 Mbps 2 x 10/100/1000/2500 Mbps
I/O Interface Displays 2 x DP 2 x DP
I/O Interface Expansion 1 x Full-size mPCIe Slot,1 x M.2 E key,1 x SIM Card Slot 1 x Full-size mPCIe Slot,1 x M.2 E key,1 x SIM Card Slot
Environment Storage Temperature -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F)
Environment Ingress Protection IP20 IP20
Environment Vibration Protection 2 Grms, random 2 Grms, random
Environment Shock Protection 50 G, half sine 50 G, half sine
Environment Operating Temperature -40~70 °C (-40~158 °F) -40~60 °C (-40~140 °F)
Mechanical Mounting DIN-rail DIN-rail
Hardware OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Hardware Security TPM 2.0 TPM 2.0
Hardware Storage 1 x SATA M.2 SSD slot (2242 M-Key) 1 x SATA M.2 SSD slot (2242 M-Key)
I/O Interface Power Connector 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block
Environment Relative Humidity 95% RH (non-condensing) 95% RH (non-condensing)
I/O Interface USB Ports 3 x USB 3.2, 1 x USB 2.0 3 x USB 3.2, 1 x USB 2.0
Hardware Graphics Engine Intel® UHD Graphics Intel® UHD Graphics
Mechanical Dimension (W x H x D) 35 x 150 x 105 mm 35 x 150 x 105 mm
I/O Interface Serial Ports 2 x RS 232/422/485 2 x RS 232/422/485
Local I/O General Digital I/O 8-ch DI, 8-ch DO 8-ch DI, 8-ch DO
