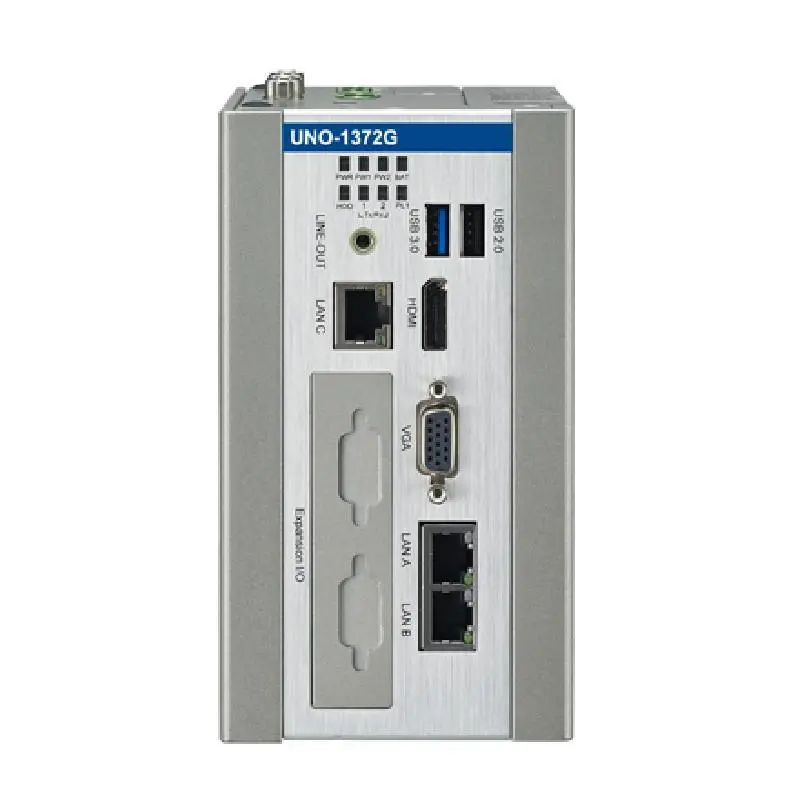

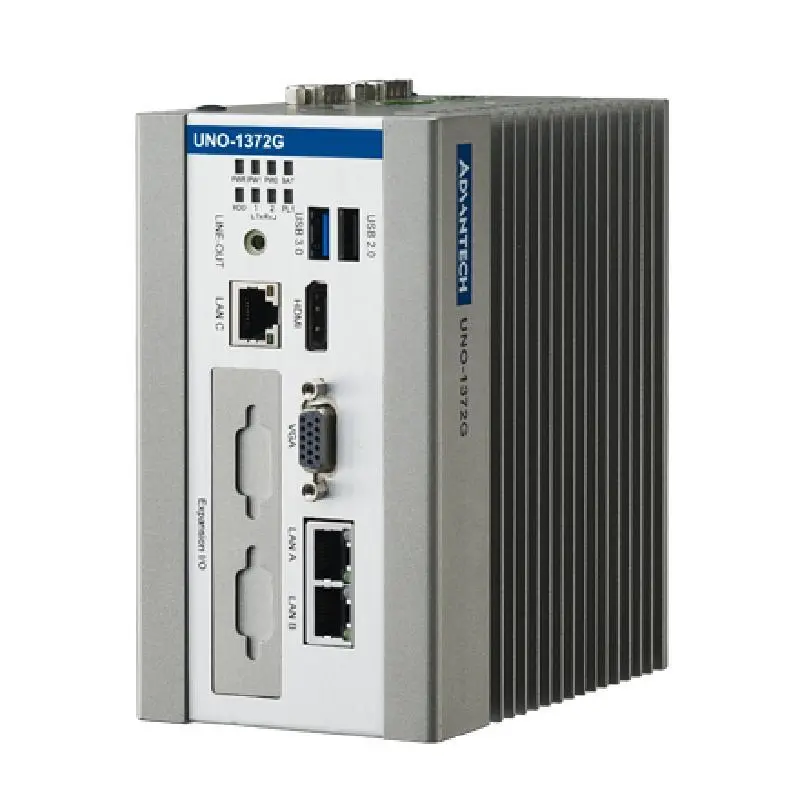

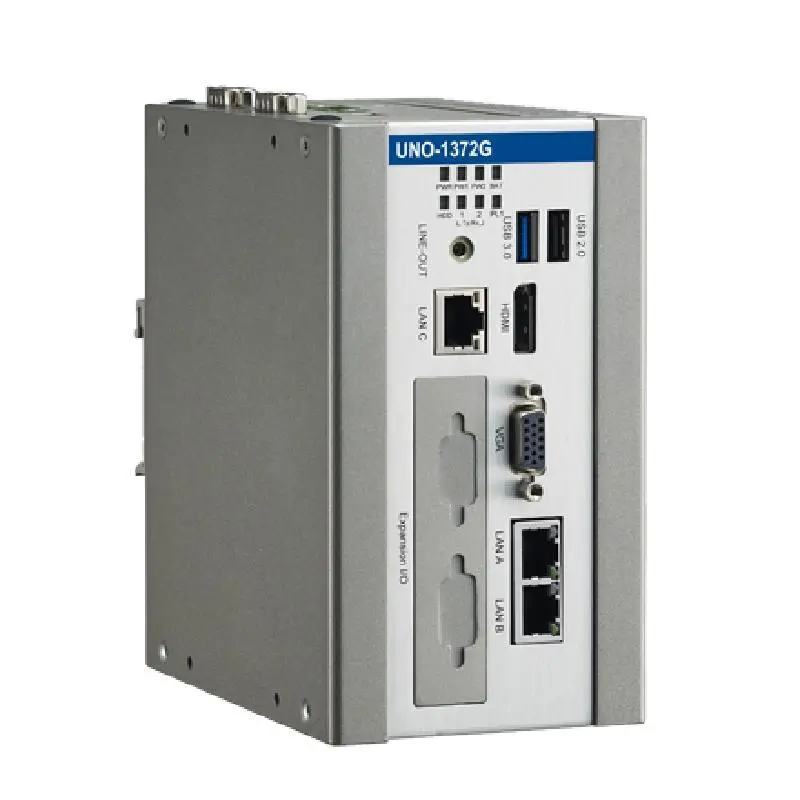

Advantech UNO-1372G Small Size DIN-rail IPC with Intel® Atom™ E3845

Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory

3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal

Compact with Fanless Design

Dual Power Input for avoiding Power Down Time

Exchangeable RTC Battery with easy Access on the Top

Digital I/O with Isolation Protection for Sensing and controlling

Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway

Supports MRAM by iDoor Technology

LAN Redundancy (Teaming)

		UNO-1372G-E3AE
Environment	Ingress Protection	IP40
Environment	Operating Temperature	-20~60 °C (-4~140 °F)
Environment	Relative Humidity	95% RH (non-condensing)
Environment	Shock Protection	50 G, half sine
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Vibration Protection	5 Grms, random
Hardware	Certification	CB, UL, CE, FCC, CCC, BSMI
Hardware	CPU	Intel® Atom® E3845 1.91GHz Quad-Core
Hardware	Graphics Engine	Intel® HD Graphics
Hardware	Memory	1 x SO-DIMM with 4 GB DDR3L 1333 MHz
Hardware	OS Support	Microsoft® Windows 10 2019 LTSC, WES7, Linux
Hardware	Power Input	9~36 VDC
Hardware	Storage	1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
I/O Interface	Audio	Line-Out
I/O Interface	Displays	1 x VGA, 1 x HDMI
I/O Interface	Expansion	2 x Full-size mPCIe Slot
I/O Interface	LAN Ports	3 x 10/100/1000 Mbps
I/O Interface	Power Connector	1 x 4-Pin Terminal Block
I/O Interface	Serial Ports	1 x RS-232, 1 x RS-422/485
I/O Interface	USB Ports	1 x USB 3.0, 2 x USB 2.0
Local I/O	General Digital I/O	4-ch DI, 4-ch DO
Mechanical	Dimension (W x H x D)	85 x 139 x 152 mm
Mechanical	Enclosure	Aluminum housing
Mechanical	Weight (Net)	1.6 Kg (3.5 lb)
