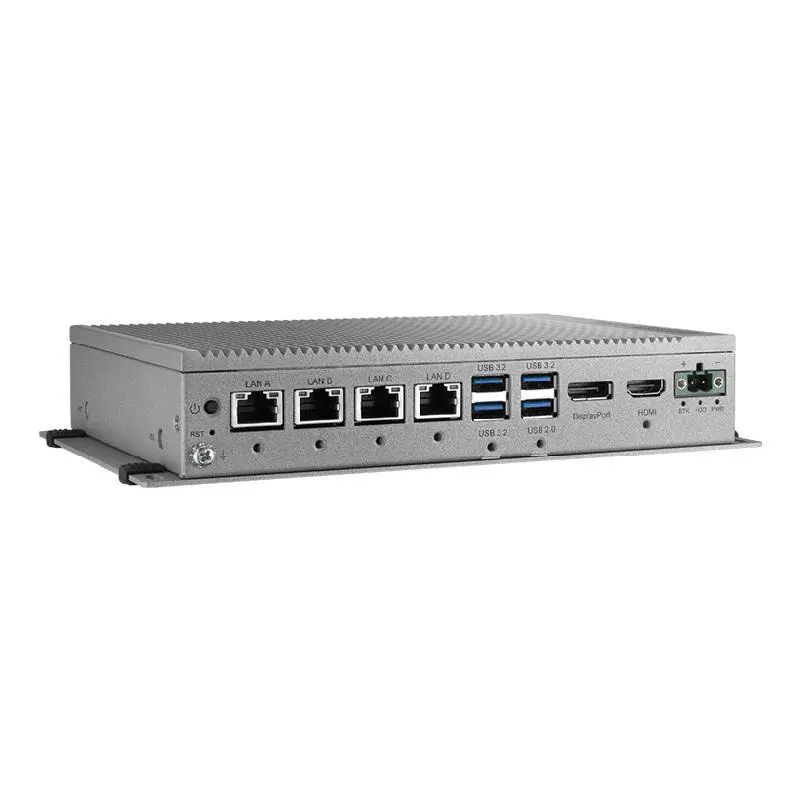

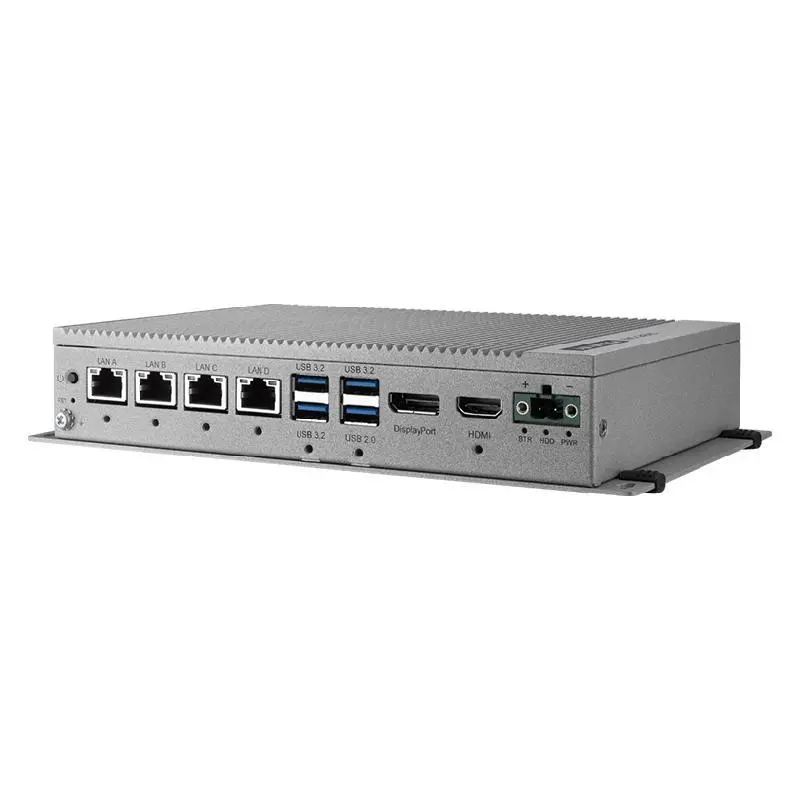

Advantech UNO-2484G V2 Modular Embedded Box PC with 11th Gen Intel® Core™ i CPU

    Intel® Core™ 11th i7/i5/i3 Processor with 8GB DDR4 3200Mb/s memory

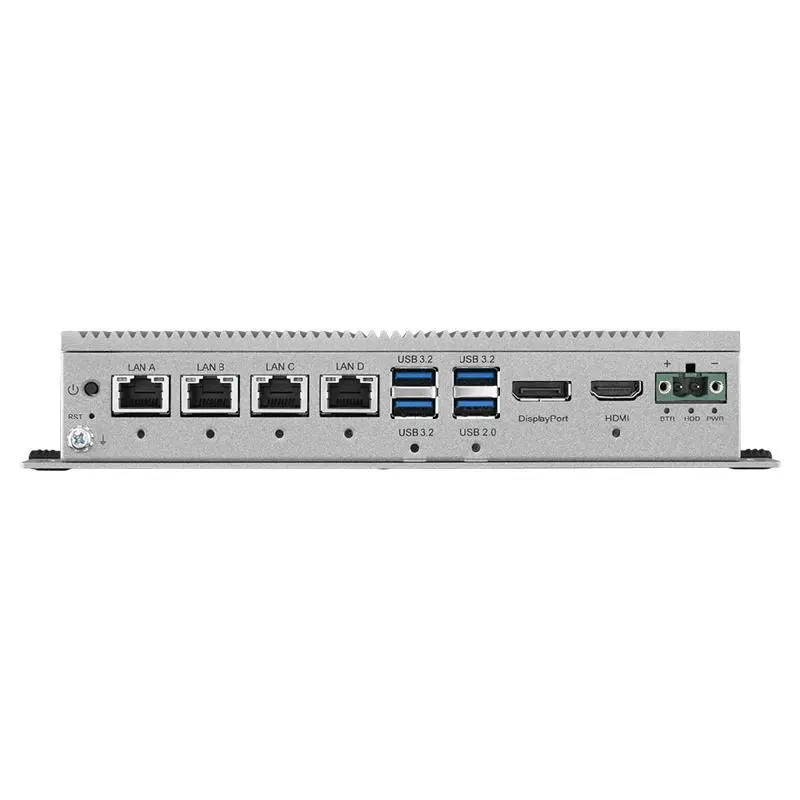

    4 x GbE, 3 x USB 3.2 Gen2, 1 x USB2.0, 1 x HDMI 1.4, 1 x DP 1.4a, 4 x RS232/422/485

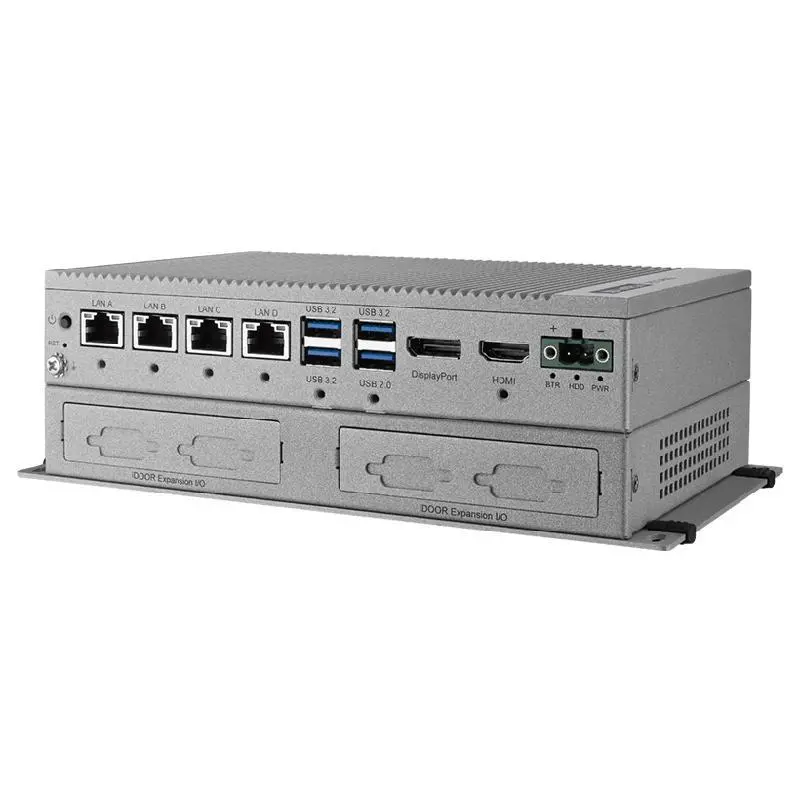

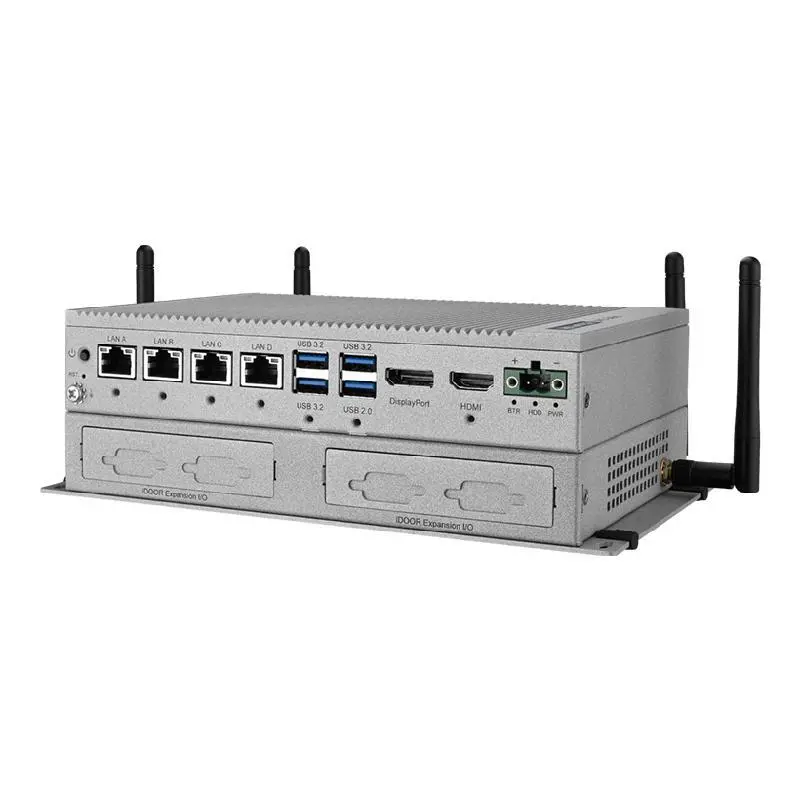

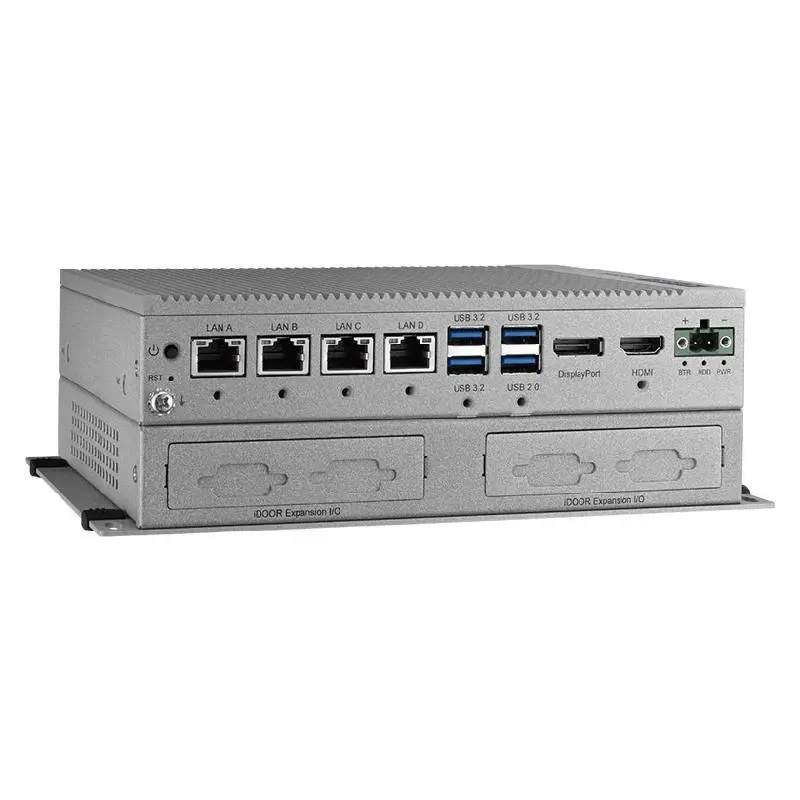

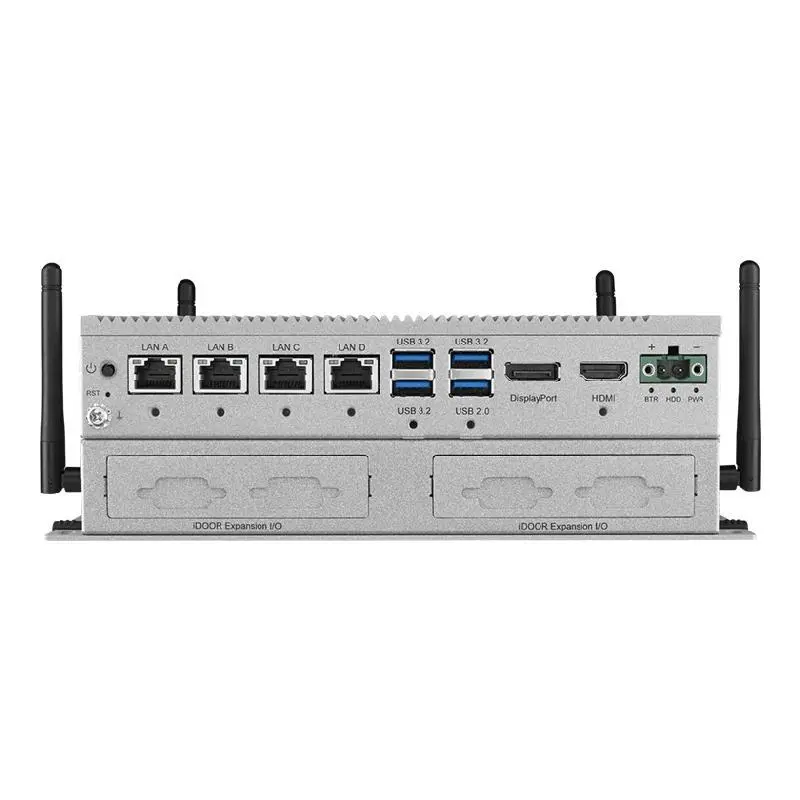

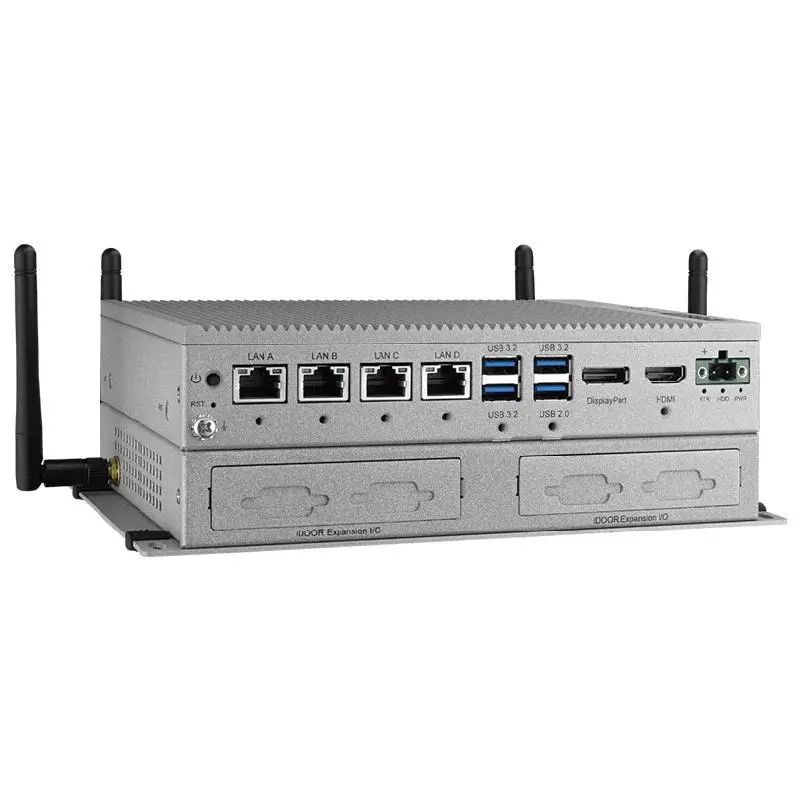

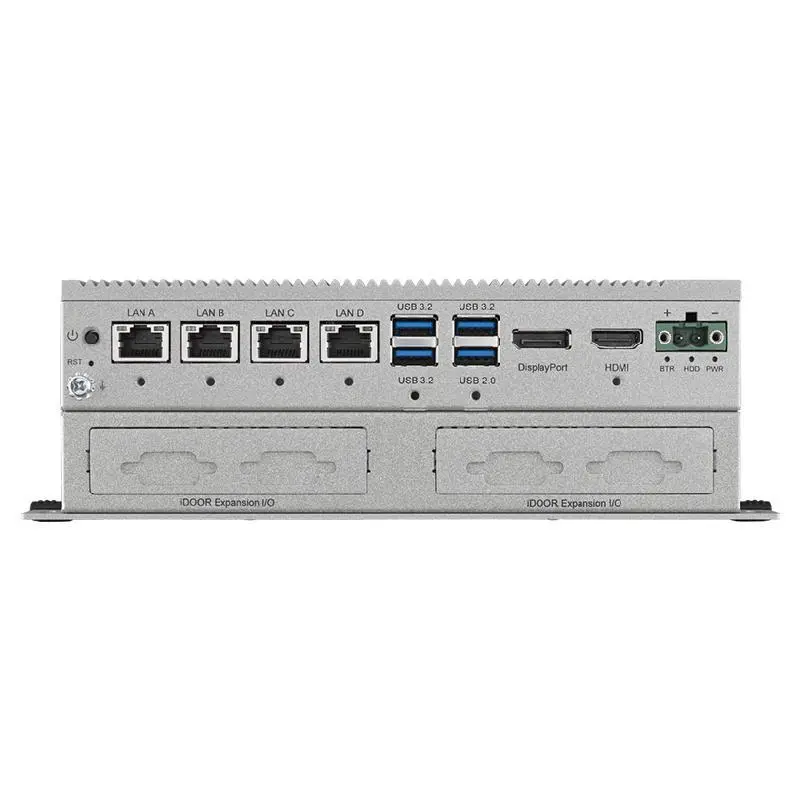

    Optional 2nd stack supports up to 2 x iDoor extension for expending wireless connectivity, industrial fieldbus or more I/O

    Compact fanless design

    Ruggedized by zero cable and lockable I/O design

    Supports NVME storage with high data-transmission efficiency

UNO-2484G-B731AE UNO-2484G-B531AE UNO-2484G-B331AE
Hardware CPU Intel® Core™ i7-1185G7E 1.8GHz Quad core Intel® Core™ i5-1145G7E 1.5GHz Quad core Intel® Core™ i3-1115G4E 2.2GHz Dual core
Environment Ingress Protection IP40 IP40 IP40
Environment Relative Humidity 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Environment Shock Protection 50 G, half sine 50 G, half sine 50 G, half sine
Environment Storage Temperature -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F)
Environment Vibration Protection 3 Grms, random 3 Grms, random 3 Grms, random
Hardware Certification CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI
Hardware OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Power Input 10~36 VDC 10~36 VDC 10~36 VDC
Hardware Storage 1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay 1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay 1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay

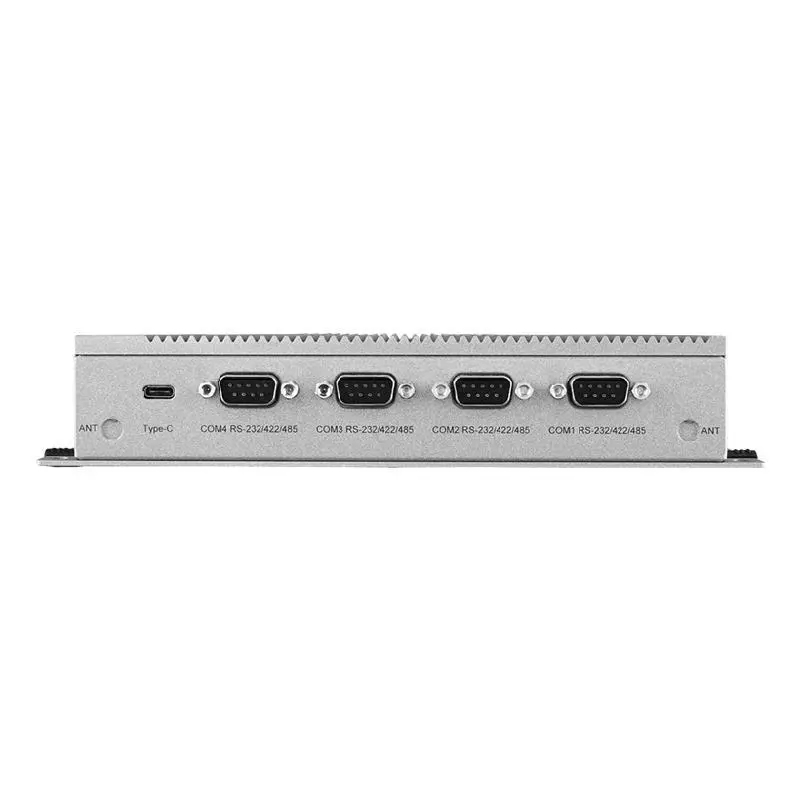

I/O Interface Serial Ports 4 x RS-232/422/485 4 x RS-232/422/485 4 x RS-232/422/485
I/O Interface Displays 1 x HDMI, 1 x DP 1 x HDMI, 1 x DP 1 x HDMI, 1 x DP
I/O Interface Power Connector 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block
Mechanical Dimension (W x H x D) 200 x 140 x 70 mm 200 x 140 x 70 mm 200 x 140 x 70 mm
Mechanical Enclosure Aluminum housing Aluminum housing Aluminum housing
Mechanical Weight (Net) 1.4 kg ( 3.09 lb) 1.4 kg ( 3.09 lb) 1.4 kg ( 3.09 lb)
I/O Interface LAN Ports 3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps 3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps 3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps
I/O Interface USB Ports 3 x USB 3.2, 1 x USB 2.0 3 x USB 3.2, 1 x USB 2.0 3 x USB 3.2, 1 x USB 2.0
USB Vision Connector 1 x USB 3.2 Type C 1 x USB 3.2 Type C 1 x USB 3.2 Type C
Hardware Memory 2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz 2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz 2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
