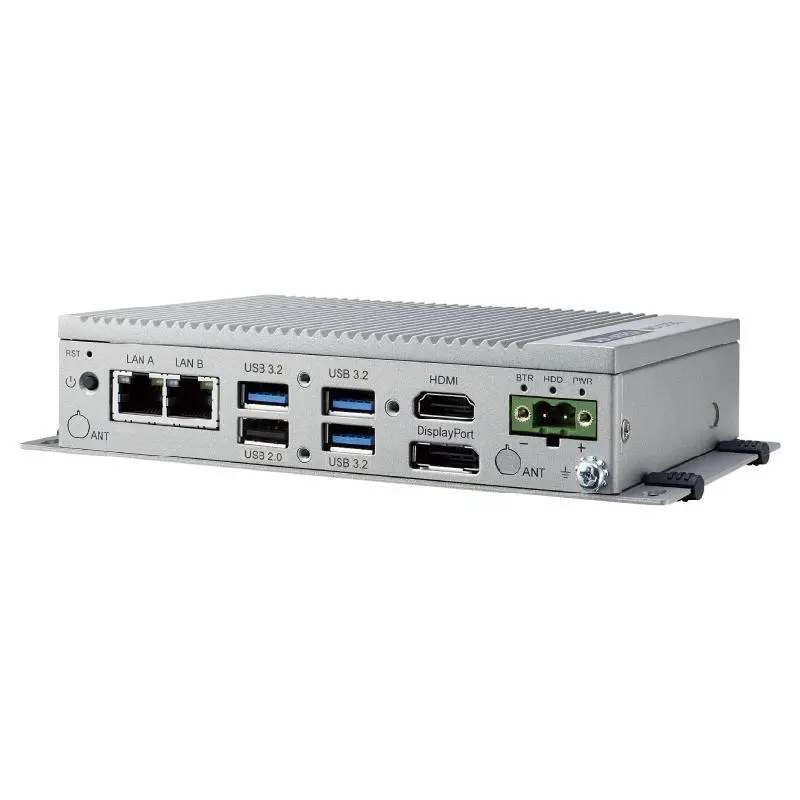

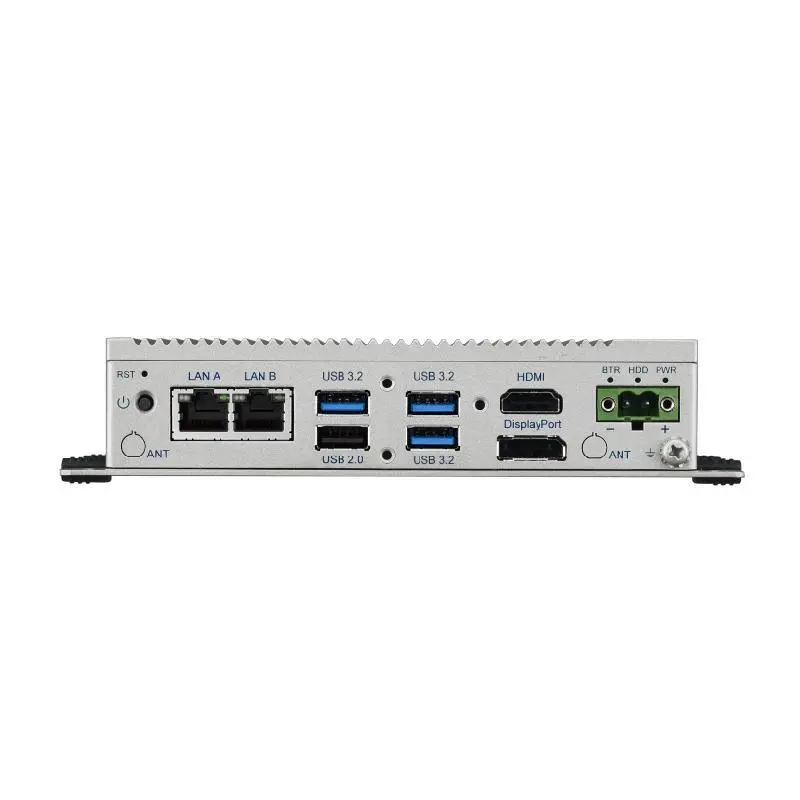

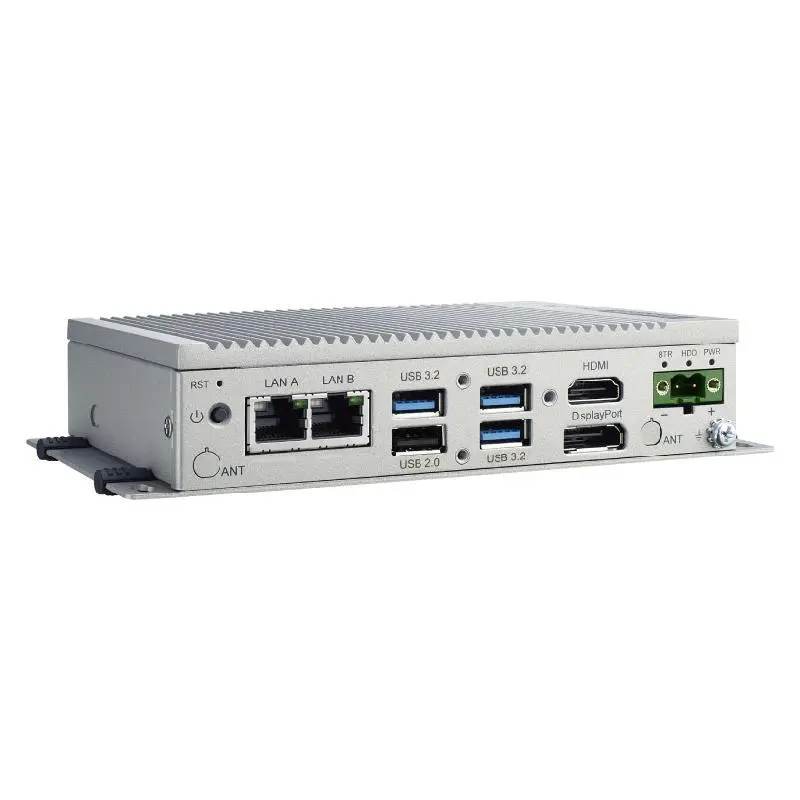

Advantech UNO-2372G V2 Small-Size Modular Embedded Box PC with Intel® Celeron® J6412

Intel® Celeron® J6412 quad-core processor with 8GB DDR4 memory

Compact, robust, fanless and scalable system with high stability

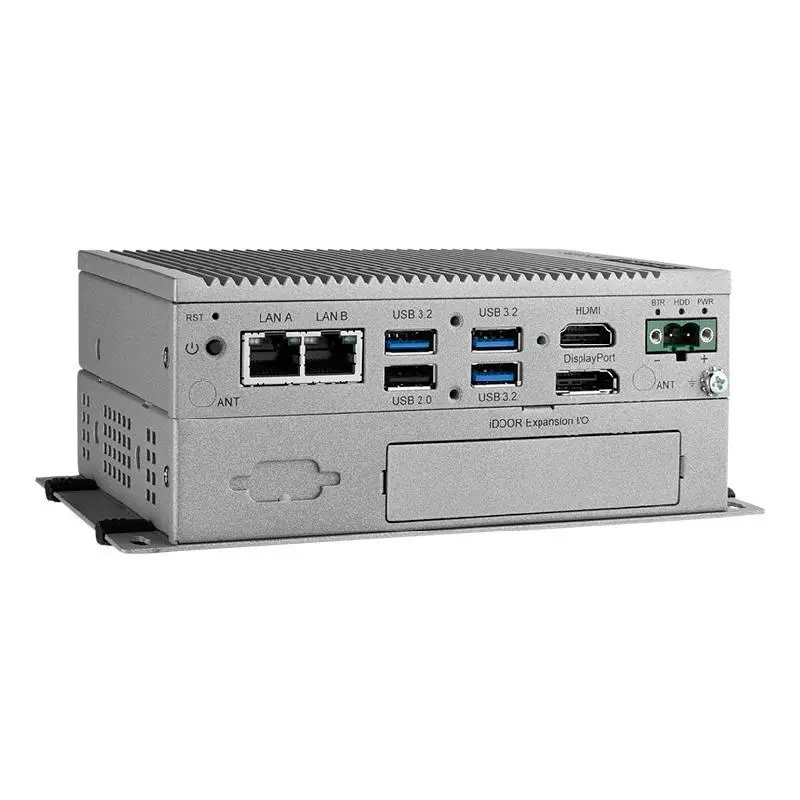

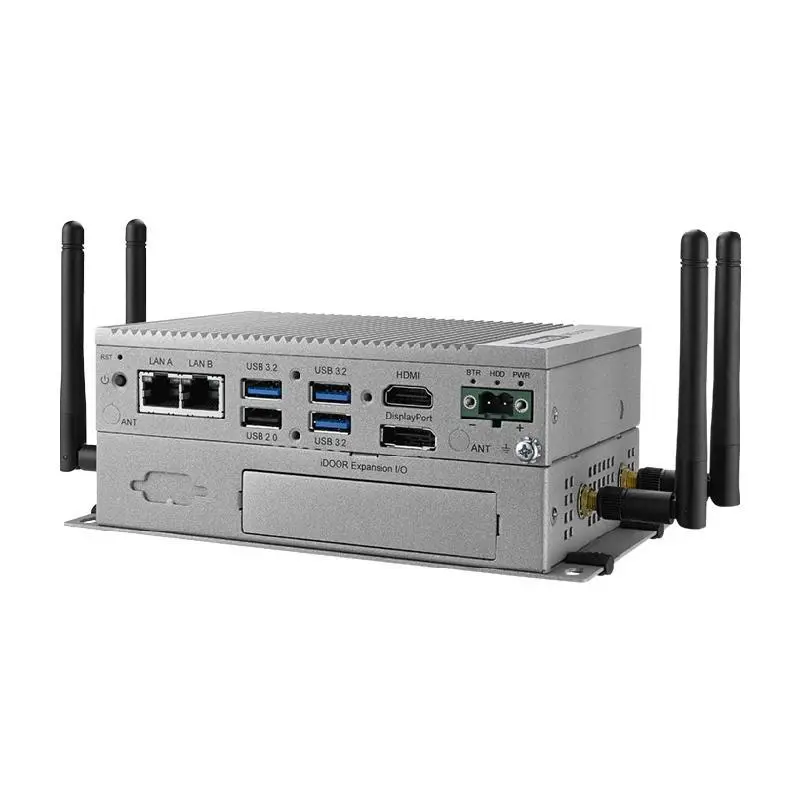

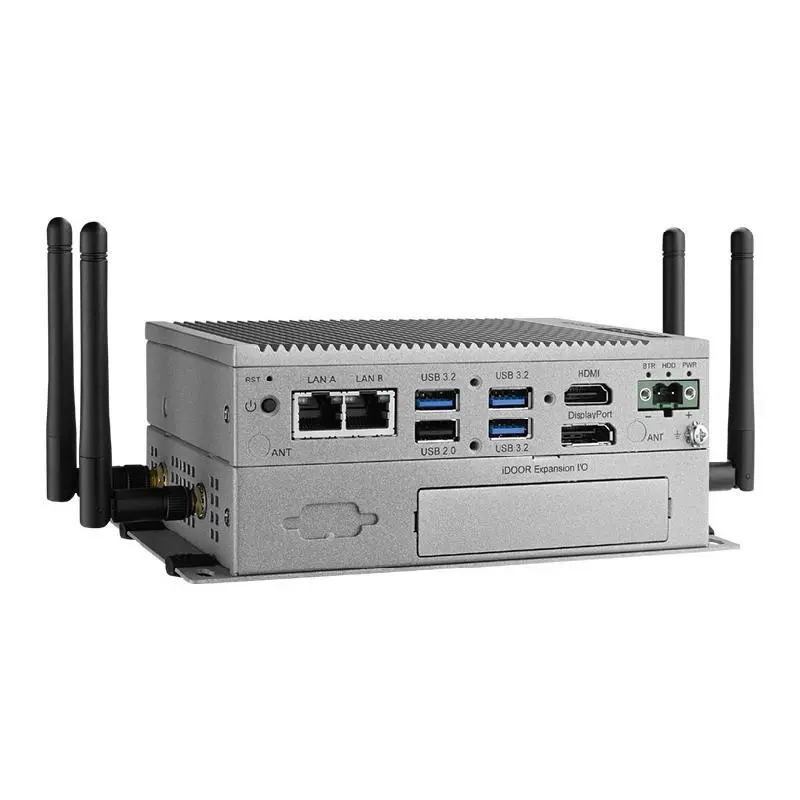

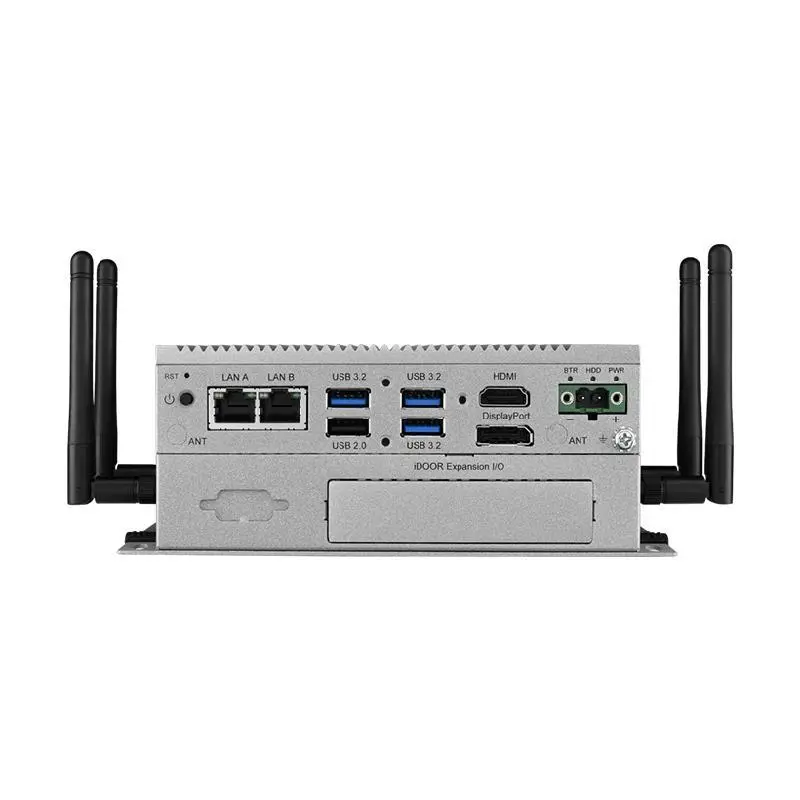

Optional second stack for supporting extension iDoor module, including wireless connectivity, industrial fieldbus and more I/O ports

Supports NVME storage with high data-transmission efficiency

Supports Windows 11 IoT Enterprise LTSC

		UNO-2372G-J231AE
Hardware	Power Input	10~36 VDC
Hardware	CPU	Intel® Celeron® J6412 2.00 GHz, Quad core
Hardware	Memory	1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
Hardware	LAN	2 x 10/100/1000 Mbps
Hardware	Watchdog Timer	1~255 s
Hardware	Storage	1 x 2.5" SSD/HDD bay
Hardware	BIOS	AMI EFI 64 Mbit
Environment	Relative Humidity	10~95% RH (non-condensing)
Environment	Vibration Protection	2 Grms, random
Environment	Shock Protection	50 G, half sine
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Operating Temperature	-20~60 °C (-4~140 °F)
Hardware	Certification	CE, FCC, UL, CCC, BSMI
Hardware	Graphics Engine	Intel® UHD Graphics
Hardware	OS Support	Microsoft® Windows 10 2019 LTSC, Linux
Mechanical	Dimension (W x H x D)	150 x 105 x 35 mm(Single-stack);150 x 105 x 65 mm(Double-stack)
I/O Interface	Audio	Line-Out
I/O Interface	Displays	1 x HDMI, 1 x DP

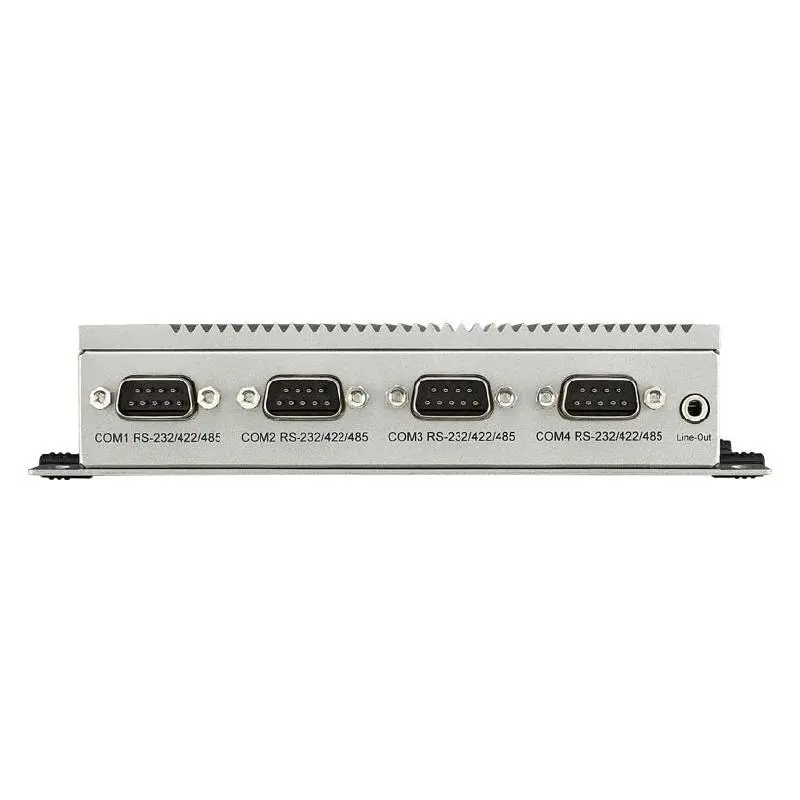

I/O Interface	Serial Ports	4 x RS-232/422/485 (DB9)
I/O Interface	USB Ports	3 x USB 3.2, 1 x USB 2.0
I/O Interface	Power Connector	1 x 2-Pin Terminal Block
I/O Interface	LAN Ports	2 x 10/100/1000 Mbps
Mechanical	Weight (Net)	0.8 kg (1.76 lb)
Mechanical	Enclosure	Aluminum housing
