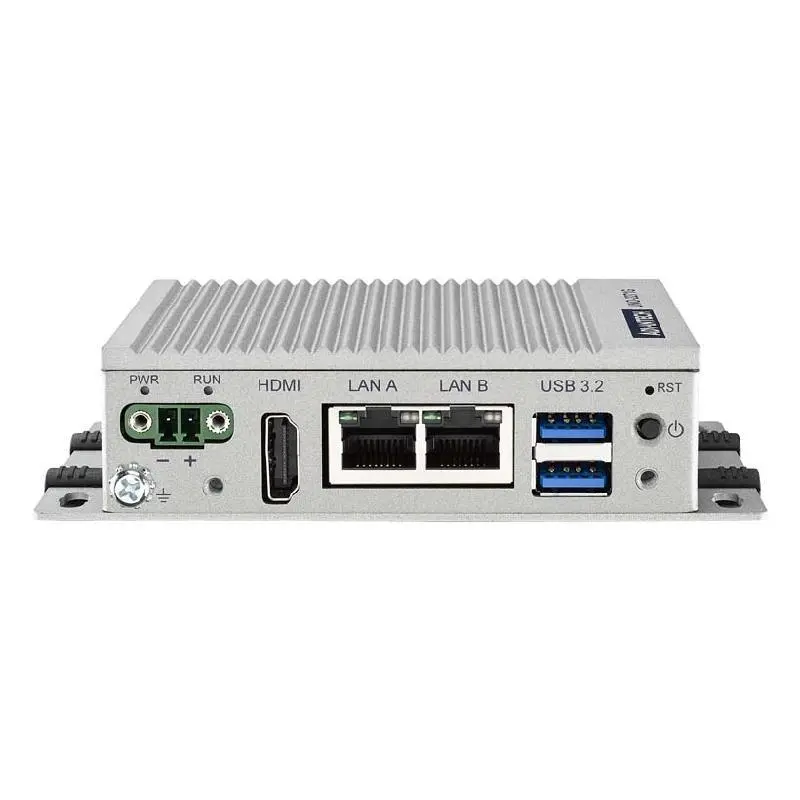

Advantech UNO-2271G V2 Pocket-Size Edge IoT Gateway with Intel® Celeron®N6210/Pentium® N6415

    Intel® Celeron® Dual core N6210/ Pentium® Quad core N6415 processor with 4GB/8GB DDR4 onboard memory

    Pocket-size, robust, fanless and cable-free system with high stability

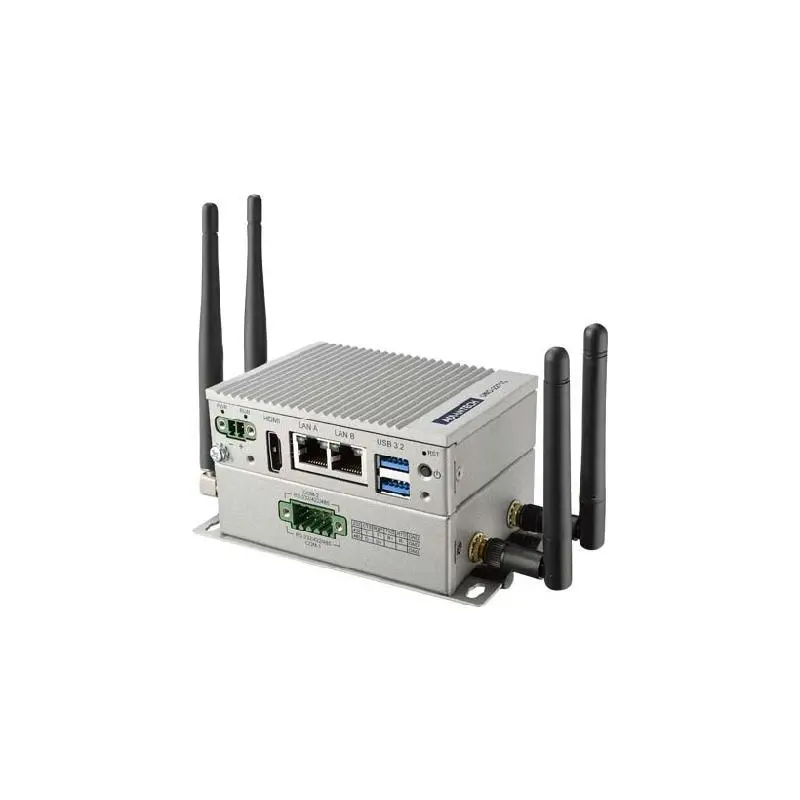

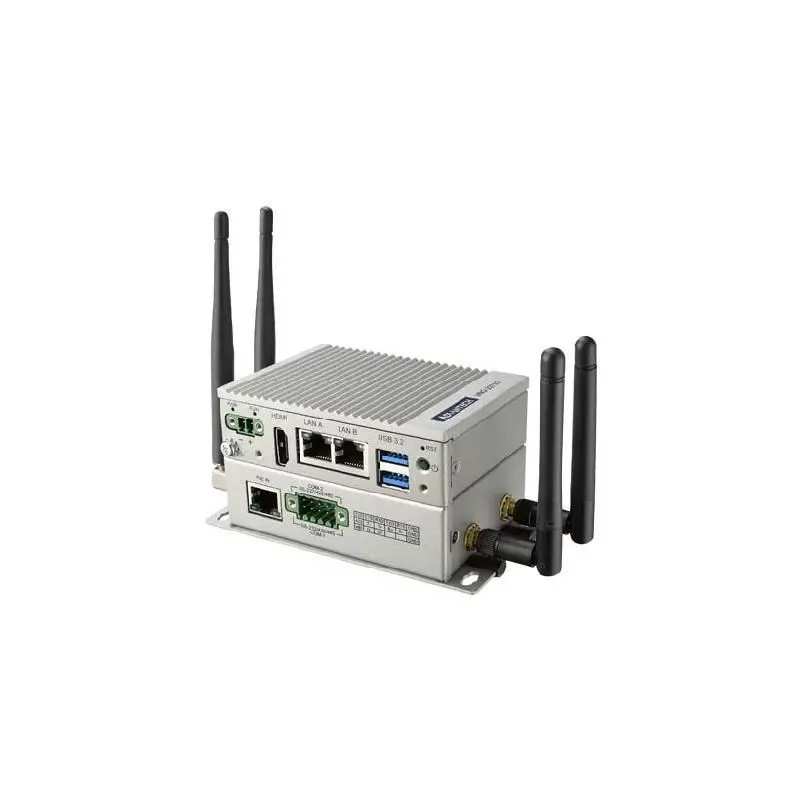

    Optional second stack for increasing functionality including POE, COM, wireless connectivity or iDoor expansion

    Support Windows 11 IoT Enterprise LTSC, Win10, Ubuntu Classic and Ubuntu Core 20

    Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

UNO-2271G-N221AU UNO-2271G-N221AE UNO-2271G-N231AU UNO-2271G-N231AE
Environment Ingress Protection IP30 IP30 IP30 IP30
Environment Operating Temperature -20~60 °C (-4~140 °F) -20~60 °C (-4~140 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F)
Environment Relative Humidity 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Environment Shock Protection 50 G, half sine 50 G, half sine 50 G, half sine 50 G, half sine
Environment Storage Temperature -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F)
Environment Vibration Protection 2 Grms, random 2 Grms, random 2 Grms, random 2 Grms, random
Hardware Certification CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CB, UL, CE, FCC, CCC, BSMI
Hardware CPU Intel® Celeron® N6210 1.2GHz Dual-Core Intel® Celeron® N6210 1.2GHz Dual-Core Intel® Pentium® N6415 1.2GHz Quad-Core Intel® Pentium® N6415 1.2GHz Quad-Core
Hardware Graphics Engine Intel® UHD Graphic 620 Intel® UHD Graphic 620 Intel® UHD Graphic 620 Intel® UHD Graphic 620
Hardware Memory 1 x DDR4 with 4 GB 1 x DDR4 with 4 GB 1 x DDR4 with 8 GB 1 x DDR4 with 8 GB
Hardware OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Power Input 10~30 VDC 10~30 VDC 10~30 VDC 10~36 VDC
Hardware Storage 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 1 x eMMC (64 GB), 1 x mSATA (shared with mPCIe)
I/O Interface Displays 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI
I/O Interface Expansion 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot
I/O Interface LAN Ports 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
I/O Interface Power Connector 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block
I/O Interface USB Ports 2 x USB 3.2 2 x USB 3.2 2 x USB 3.2 2 x USB 3.2
Mechanical Dimension (W x H x D) 100 x 70 x 30 mm 100 x 70 x 30 mm 100 x 70 x 30 mm 100 x 70 x 30 mm
Mechanical Enclosure Aluminum housing Aluminum housing Aluminum housing Aluminum housing
Mechanical Weight (Net) 0.5 kg (1.1 lb) 0.5 kg (1.1 lb) 0.5 kg (1.1 lb) 0.5 kg (1.1 lb)
